Automation Tab

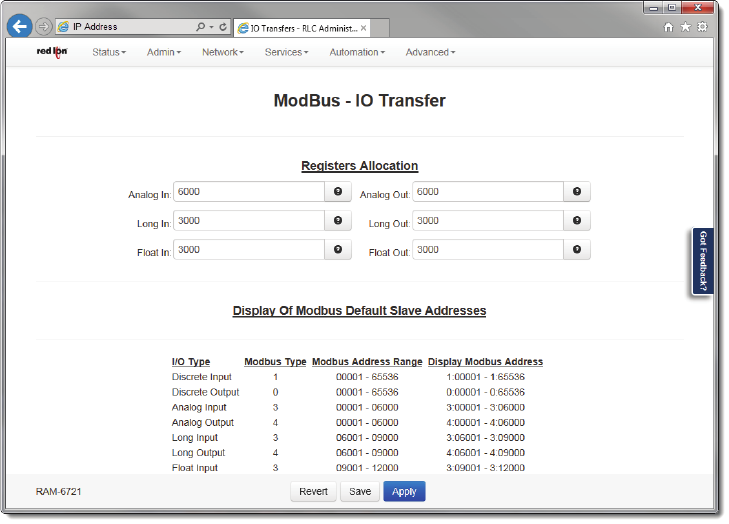

• ClickontheI/OTransfermenuitemandthefollowingwindowwillappear:
RegisterAllocation:Thissectionisdisplayingthedefaultvaluesforthefollowing:
AnalogIn:Bydefaultwesupport5000AnalogInputregisters,buttherangeis1‐65535.
AnalogOut:Bydefaultwesupport5000AnalogOutputregisters,but
therangeis1‐65535.
LongIn:Bydefaultwesupport2000LongInputregisters,buttherangeis1‐65535.
LongOut:Bydefaultwesupport2000LongOutputregisters,buttherangeis1‐65535.
FloatIn:Bydef aultwesupport2000FloatInputregisters,buttherangeis1
‐65535.
FloatOut:Bydefaultwesupport2000FloatOutputregisters,buttherangeis1‐65535.
TherangeofModbusslaveaddressesaredisplayedbasedondefaultregisterallocation.Youcanchangetheregistersallo‐
cationvaluestoyourrequiredregistervaluesandtherangeofModbus slaveaddresseswill
bechangedbasedonthenew
values.
Bydefault,wesupport8192DIregisters,8192DOregisters,10000AIregisters,10000AOregisters,3000LIregisters,3000
LOregisters,3000FIregistersand3000FOregisters.
