Installation guide

5. SERVLETEXEC APPLICATION SERVER (WINDOWS)
To examine or manually modify the metabase ISAPI Filter under IIS 5.0/5.1/6.0
1. Click Start, point to Settings and click Control Panel.
2. In Control Panel, double-click Administrative Tools.
3. In Administrative Tools, double-click Internet Services Manager.
4. Expand the Internet Services Manager entry until you can see the icon for your
server.
5. Right-click the server icon, and then click Properties. You should see a dialog
similar to Figure 16. Make sure you’ve opened the Properties dialog for the
server as illustrated in Figure 16, and not for the Default Web Site (or any other
web site you may have configured).
6. In Properties, check to make sure WWW Service is selected in the Master
Properties list (see Figure 16), and then click Edit.
7. In Master Properties, click the ISAPI Filters tab (see Figure 17).
8. Click any previously installed servlet engines, and then click Remove.
9. Click ServletExec, and then click Edit to examine or modify it (if you wish). If
you do not see ServletExec, click Add and follow the instructions to add the
ServletExec/AS entry, making sure to point to
ServletExec_AS.dll.

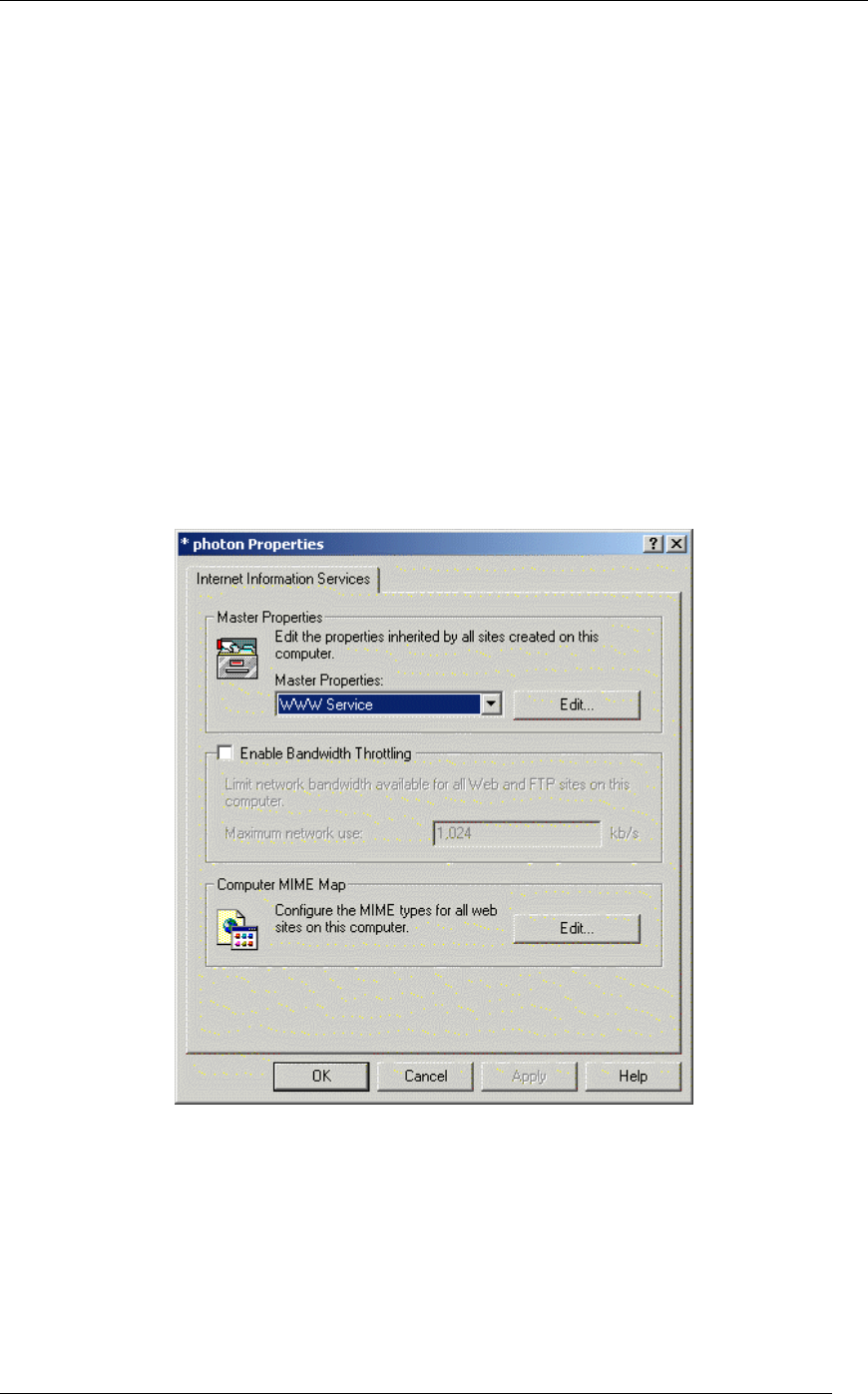

Figure 14. Server Properties (IIS 5.0)
ServletExec 5.0 Installation Guide 53
