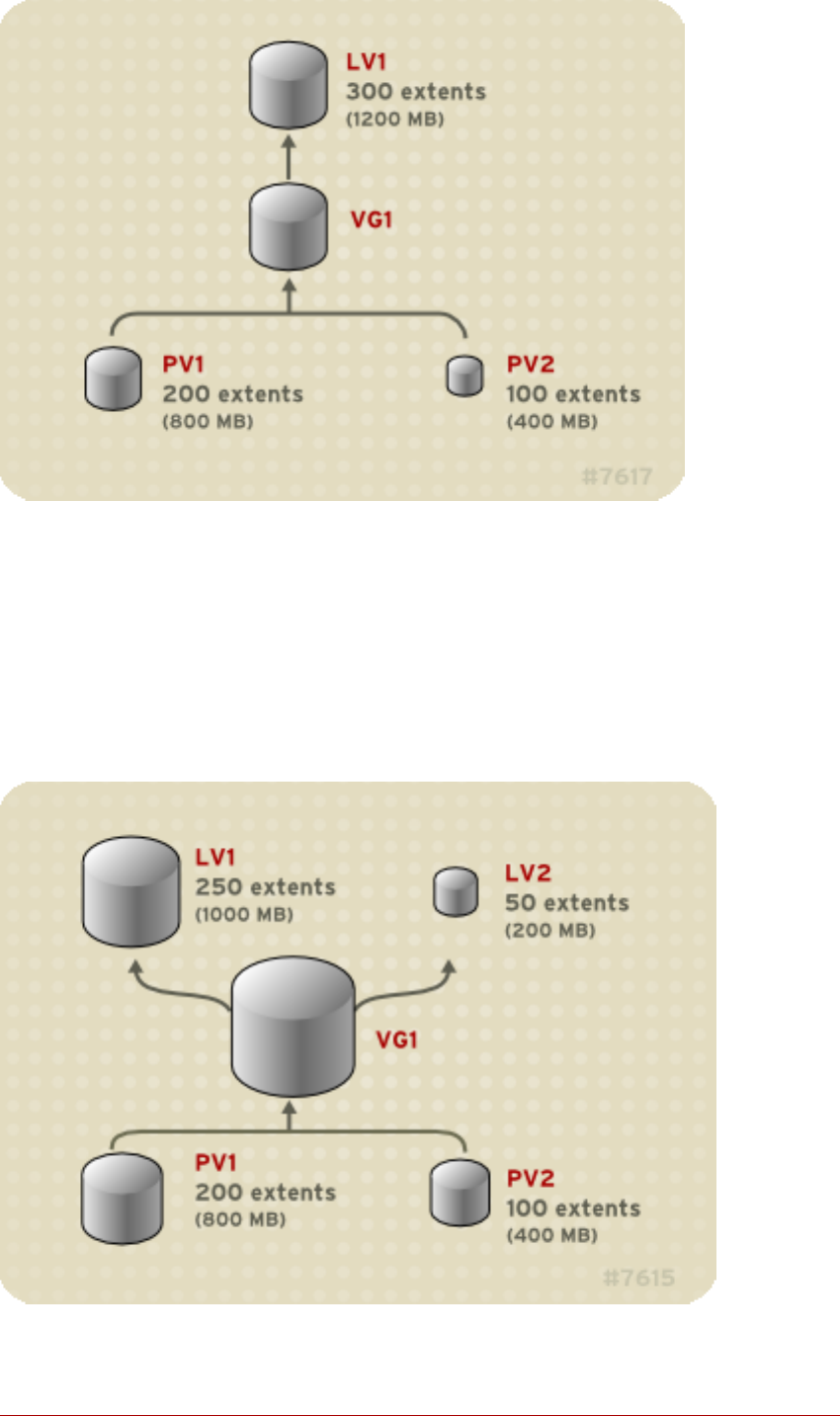

Figure 2.3. Linear Volume with Unequal Physical Volumes
You can configure more than one linear logical volume of whatever size you desire from the
pool of physical extents. Figure 2.4, “Multiple Logical Volumes” shows the same volume group
as in Figure 2.3, “Linear Volume with Unequal Physical Volumes”, but in this case two logical
volumes have been carved out of the volume group: LV1, which is 250 extents in size (1000MB)
and LV2 which is 50 extents in size (200MB).
Figure 2.4. Multiple Logical Volumes
3.2. Striped Logical Volumes
