2.4.2 OVERVIEW OF THE REAR
This section provides information detailing the rear of RED STATION REDMAG 2.5”.

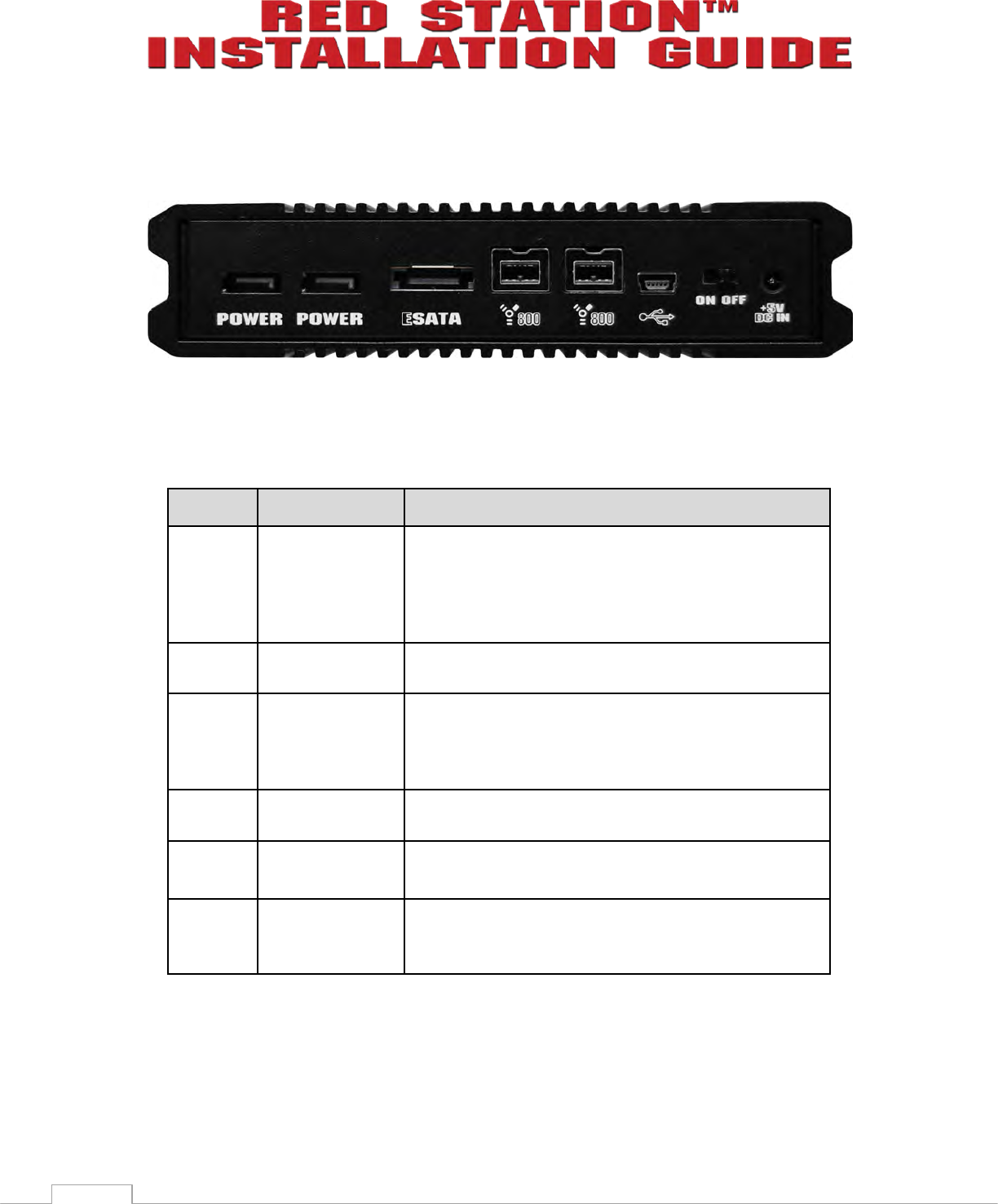

Figure 2-8: RED STATION REDMAG 2.5” – Rear
Table 2-8: RED STATION REDMAG 2.5” Connector/Component Descriptions
NO. ITEM DESCRIPTION
1-2 POWER
Can accept power from any RED STATION mod-
ule that is already connected to RED STATION
Base; can also output power to another RED STA-
TION module in stand-alone configuration or when
powered by RED STATION Base
3 ESATA
Allows RED STATION REDMAG 2.5” to connect to
computer via eSATA Connection
4-5 FIREWIRE 800
Allows RED STATION REDMAG 2.5” to connect to
computer via FW800 Connection; also allows RED
STATION REDMAG 2.5” to connect to additional
RED STATION modules
6 MINI-USB
Allows RED STATION REDMAG 2.5” to connect to
computer via mini-USB Connection
7
ON/OFF
SWITCH
Turns RED STATION REDMAG 2.5” ON or OFF
8 +5V DC IN
Power supply input for RED STATION REDMAG
2.5”; for specifications see section A.1 TECHNIC-
AL DATA
1 2
3
4
5
6
7
8
