2.3 RED STATION REDMAG 1.8”
This section provides information detailing RED STATION REDMAG 1.8”.
2.3.1 OVERVIEW OF THE FRONT
This section provides information detailing the front of RED STATION REDMAG 1.8”.

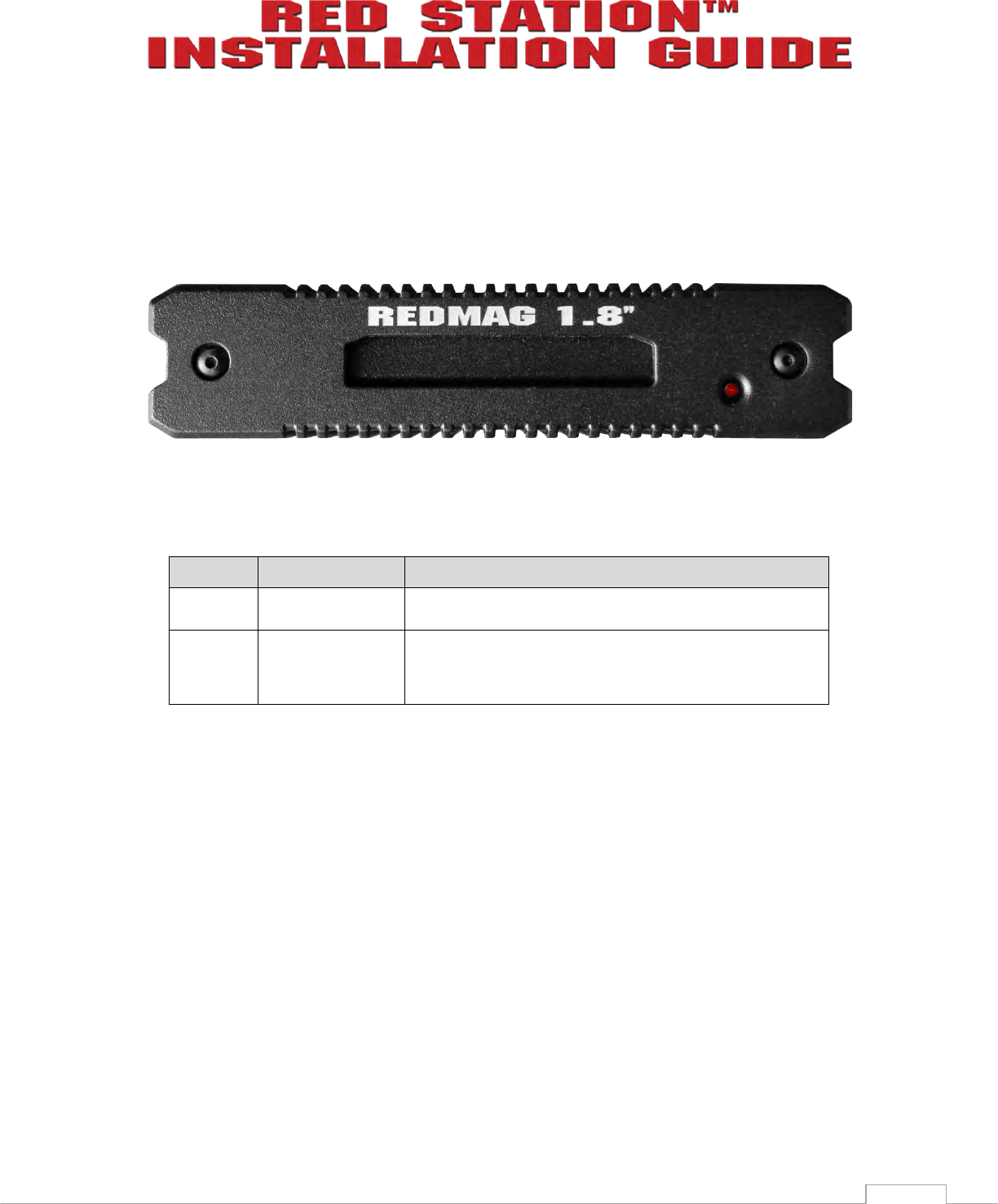

Figure 2-5: RED STATION REDMAG 1.8” – Front
Table 2-5: RED STATION REDMAG 1.8” Connector/Component Descriptions – Front
NO. ITEM DESCRIPTION
1
1.8” DRIVE
SLOT
1.8” RED Hard Drive (SSD) slot
2 LED
Indicates power status; Red LED lights up when
RED STATION REDMAG 1.8” is powered and
turned ON; flickers as media is being read
1
2
