2.2.2 OVERVIEW OF THE REAR
This section provides information detailing the rear of RED STATION CF.

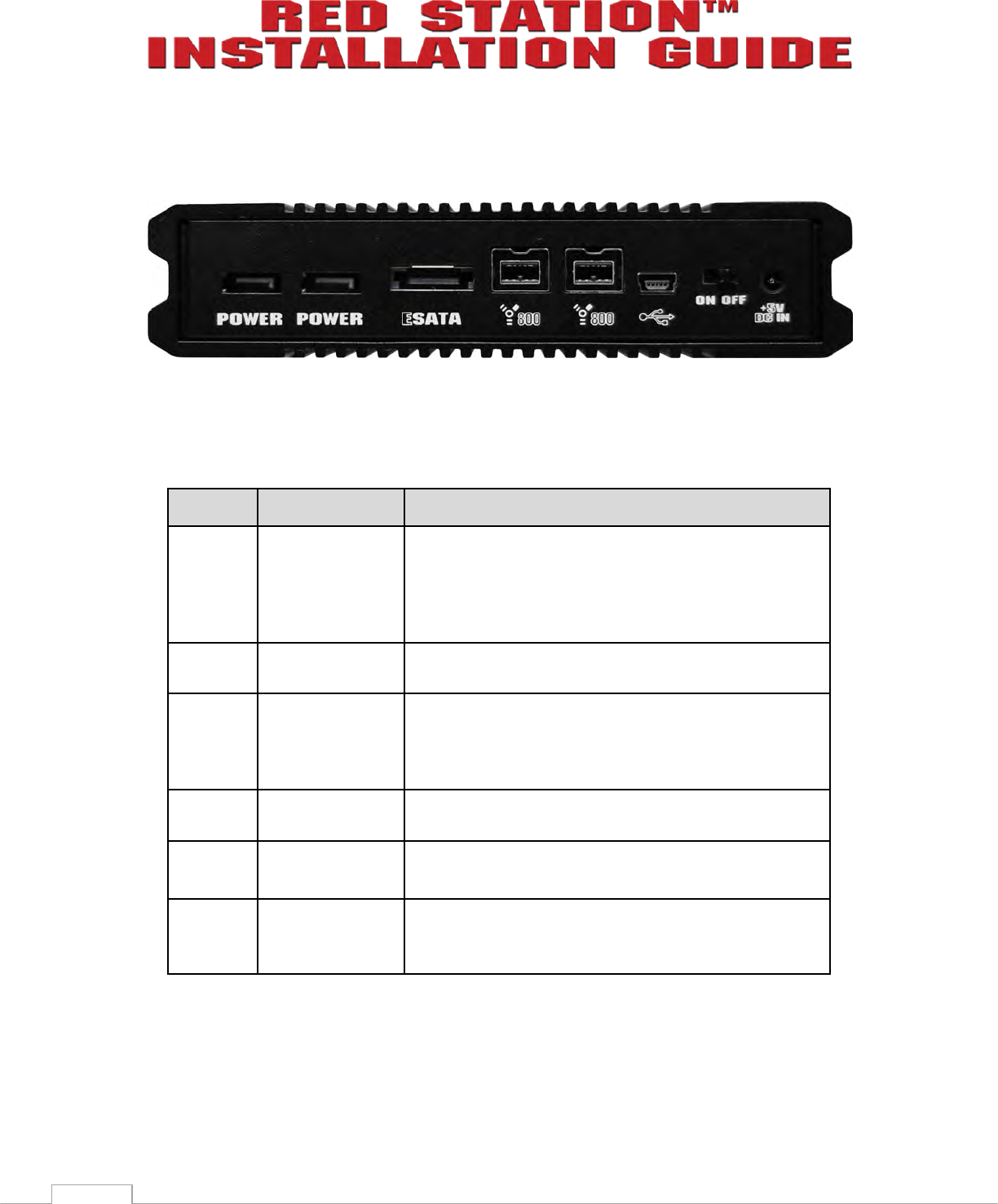

Figure 2-4: RED STATION CF – Rear
Table 2-4: RED STATION CF Connector/Component Descriptions
NO. ITEM DESCRIPTION
1-2 POWER
Can accept power from any RED STATION mod-
ule that is already connected to RED STATION
Base; can also output power to another RED STA-
TION module in stand-alone configuration or when
powered by RED STATION Base
3 ESATA
Allows RED STATION CF to connect to computer
via eSATA Connection
4-5 FIREWIRE 800
Allows RED STATION CF to connect to computer
via FW800 Connection; also allows RED STATION
CF to connect to additional RED STATION mod-
ules
6 MINI-USB
Allows RED STATION CF to connect to computer
via mini-USB Connection
7
ON/OFF
SWITCH
Turns RED STATION CF ON or OFF
8 +5V DC IN
Power supply input for RED STATION CF; for spe-
cifications see section A.1 TECHNICAL DATA
1 2
3
4
5
6
7
8
