2.1.2 OVERVIEW OF THE REAR
This section provides information detailing the rear of RED STATION Base.

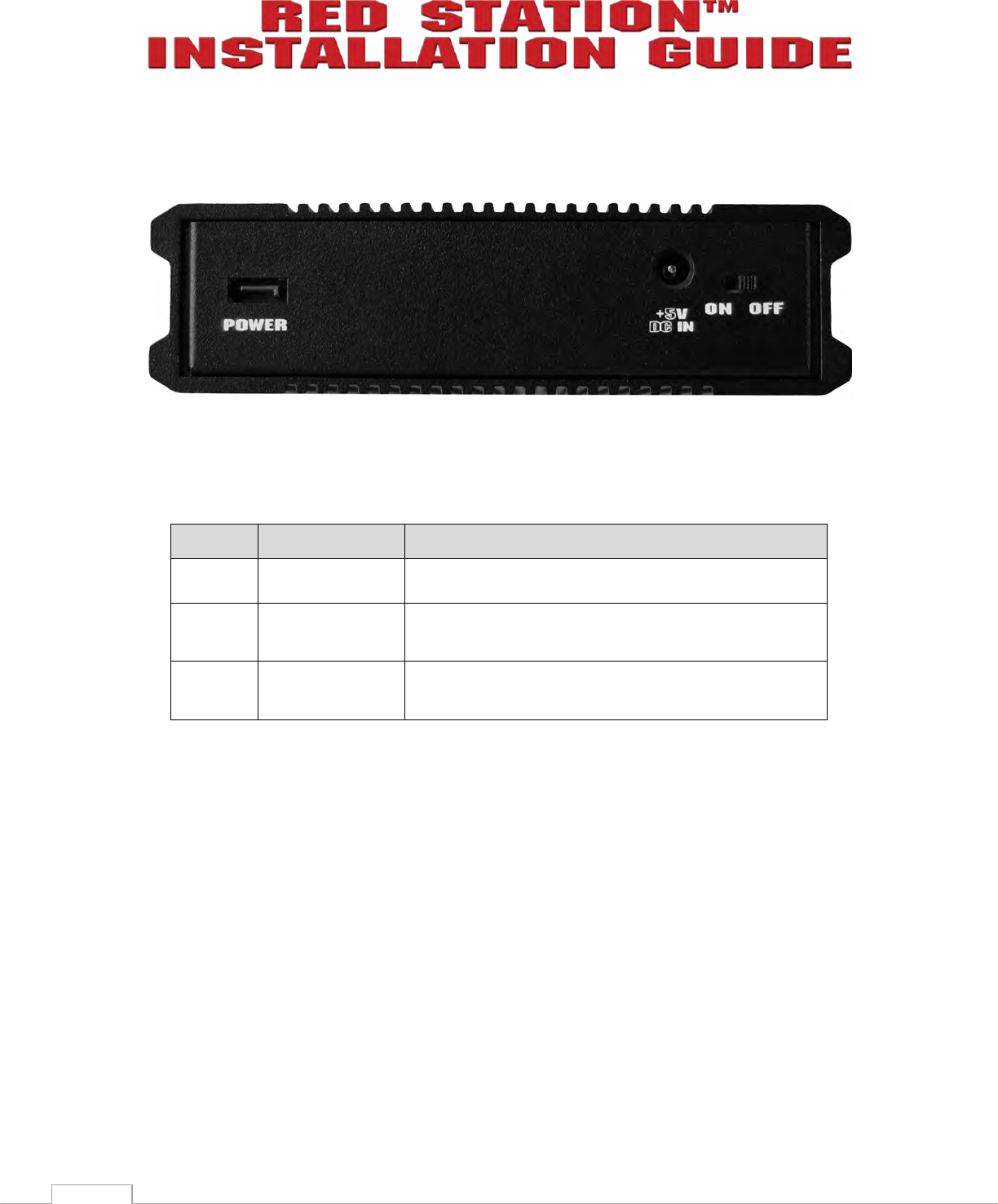

Figure 2-2: RED STATION Base – Rear
Table 2-2: RED STATION Base Connector/Component Descriptions - Rear
NO. ITEM DESCRIPTION
1 POWER
Allows RED STATION Base to power up to three
(3) RED STATION modules
2 +5V DC IN
Power supply input for RED STATION Base; for
specifications see section A.1 TECHNICAL DATA
3
ON/OFF
SWITCH
Turns RED STATION Base ON or OFF
