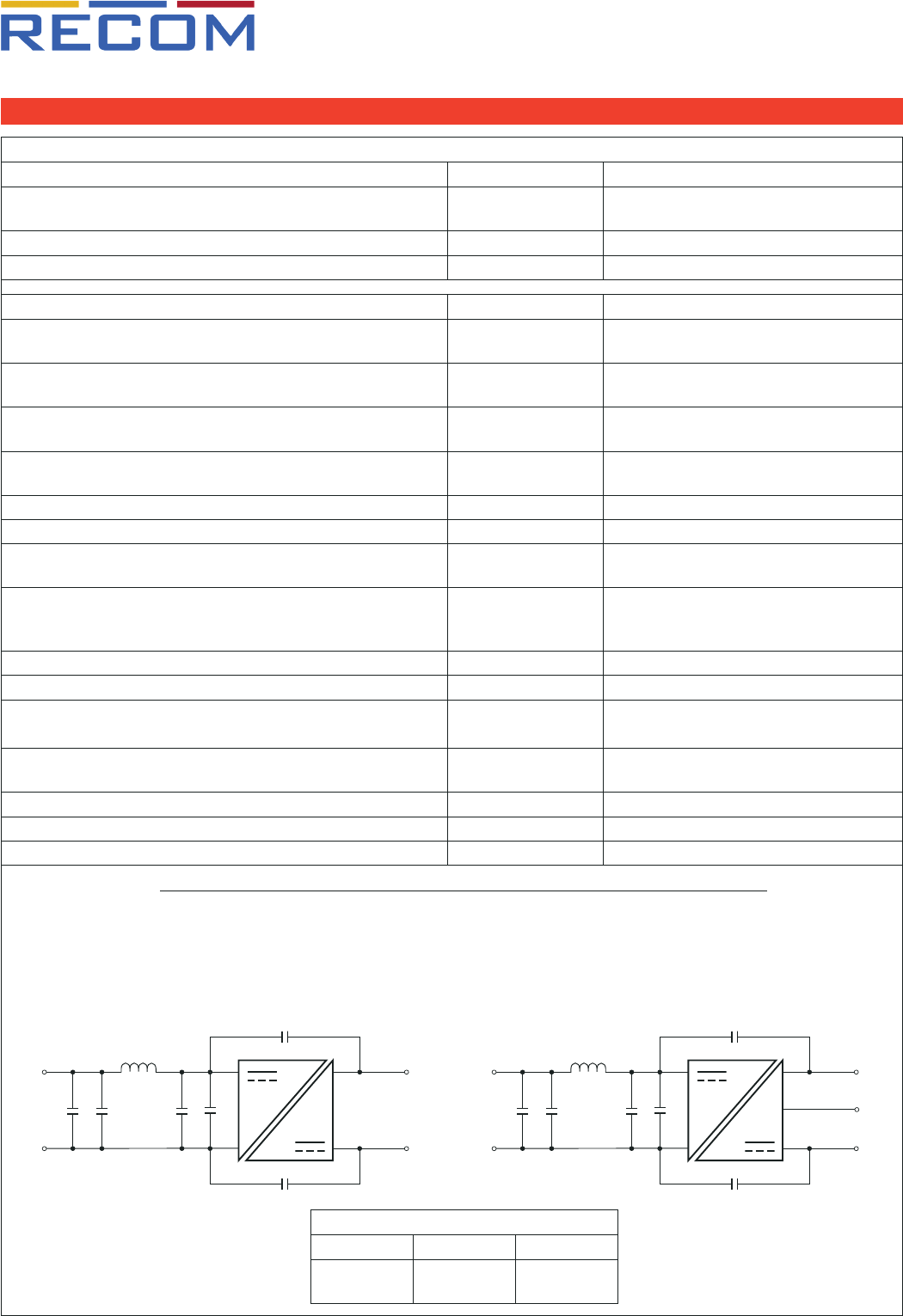

Datasheet

www.recom-power.com
REV.: 0/2019 PD-7
DC/DC Converter
Specifications (measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)
SAFETY AND CERTIFICATIONS
Certificate Type (Safety) Report / File Number Standard
Information Technology Equipment, General Requirements for Safety (LVD)
EN60950-1:2006 + A2:2013
IEC60950-1:2005 2nd Edition + A2:2013
Railway Applications - Electronic Equipment used on Rolling Stock EN50155:2007 + AC:2012
RoHS2+ RoHS-2011/65/EU + AM-2015/863
EMC Compliance (Industrial and Multimedia) Condition Standard / Criterion
Electromagnetic compatibility of multimedia equipment - Emission requirements
without external filter
with external filter
EN55032:2015+AC:2016, Class A
EN55032:2015+AC:2016, Class B
Information technology equipment - Immunity characteristics - Limits and
methods of measurement
EN55024:2010 + A1:2015
ESD Electrostatic Discharge Immunity Test
Air: ±2, 4, 8kV and
Contact: ±4, 6kV
IEC61000-4-2:2008, Criteria A
EN61000-4-2:2009, Criteria A
Radiated, Radio-Frequency, Electromagnetic Field Immunity Test
10V/m (80MHz-1GHz)
IEC61000-4-3:2006 + A2:2010, Criteria A
EN61000-4-3:2006 + A2:2010, Criteria A
Fast Transient and Burst Immunity
(7)
DC Port: ±2.0kV EN61000-4-4:2012, Criteria A
Surge Immunity
(7)
DC Port: ±0.5, 1, 2.0kV EN61000-4-5:2014, Criteria A
Immunity to Conducted Disturbances, Induced by Radio-Frequency Fields 10V r.m.s.
IEC61000-4-6:2013, Criteria A
EN61000-4-6:2014+AC:2015, Criteria A
Power Magnetic Field Immunity
50Hz, 1A/m
100A/m (1 min)
50Hz, 1000A/m (1 sec)
IEC61000-4-8:2009, Criteria A
EN61000-4-8:2010, Criteria A
EMC Compliance (Railway) Condition Standard / Criterion
Railway applications - Electromagnetic compatibility EN50121-3-2:2006
Industrial, Scientific and Medical Equipment - Radio Frequency
Disturbance Characteristics - Limits and Methods of Measurement
EN55011
ESD Electrostatic Discharge Immunity Test
Air: ±2, 4, 8kV and
Contact: ±4, 6kV
EN61000-4-3, Criteria A
Radiated, Radio-Frequency, Electromagnetic Field Immunity Test
10V/m (80MHz-1GHz) EN61000-4-4, Criteria A
Fast Transient and Burst Immunity
(7)
DC Port: ±2.0kV EN61000-4-5, Criteria A
Surge Immunity
(7)
DC Port: ±0.5, 1, 2.0kV EN61000-4-6, Criteria A
RP12-AR
Series
L1
L1
Com
C1 C2 C3
-V
out
+V
out
-V
in
+V
in
C6
C5
C4
+V
out
+V
in
-V
out
-V
in
C1 C2 C3
-V
out
+V
out
-V
in
+V
in
C6
C5
C4
+V
out
+V
in
-V
out
-V
in
Com
L1
L1
Com
C1 C2 C3
-V
out
+V
out
-V
in
+V
in
C6
C5
C4
+V
out
+V
in
-V
out
-V
in
C1 C2 C3
-V
out
+V
out
-V
in
+V
in
C6
C5
C4
+V
out
+V
in
-V
out
-V
in
Com
EMC Filtering according to EN55032 Class B
Single Output Dual Output
Notes:
Note7:
Tested with an aluminum electrolytic capacitor (Nippon chemi-con KYJ series) 150µF/200V with a
TVS (SMBJ300A) 300V, 600W peak pulse power wired in parallel
Component List
C1, C2, C3, C4 L1 C5, C6
0.68µF / 250V
1210 MLCC
22µH 1.1A SMD
Inductor
1000pF / 3kV
1808 MLCC
