Datasheet

www.recom-power.com
REV.: 0/2019 PD-5
DC/DC Converter
Specifications (measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated)
PROTECTIONS
Parameter Type Value
Short Circuit Protection (SCP) below 100mW continuous, auto recovery
Over Voltage Protection (OVP)
3.3Vout
5Vout
12Vout
15Vout
24Vout
3.7 - 5.4VDC
5.6 - 7.0VDC
13.5 - 19.6VDC
18.3 - 22.0VDC
29.1 - 32.5VDC
latch off mode
Over Load Protection (OLP) 210% of rated Iout, Hiccup
Isolation Voltage
(5)
tested for 1 minute
I/P to O/P
I/P or O/P to Case
3kVDC
1.6kVDC
Isolation Resistance Viso= 500VDC 1GW min.
Isolation Capacitance 2000pF max.
Insulation Grade functional

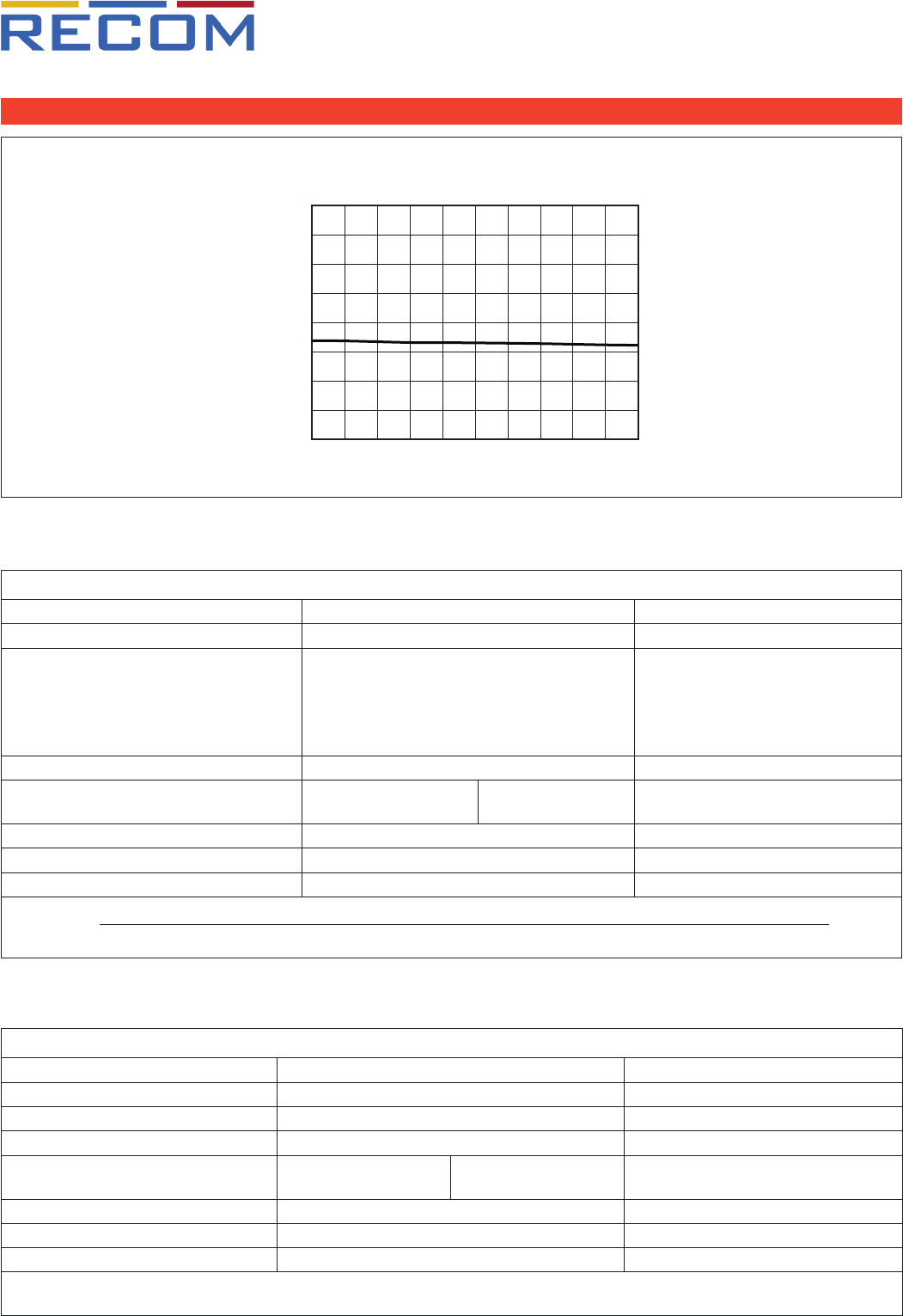

Deviation vs. Load
Notes:
Note5: Refer to local safety regulations if input over-current protection is also required. Recommended fuse: slow blow type
ENVIRONMENTAL
Parameter Condition
Value
Operating Temperature Range
(6)
with derating (refer to derating graph) -40°C to +100°C
Maximum Case Temperature +105°C
Temperature Coefficient ±0.02%/K
Thermal Impedance 0.1m/s, vertical direction
without PCB
with PCB
(6)
17.8K/W
12.5K/W
Operating Altitude 2000m
Operating Humidity non-condensing 5% - 95% RH max.
Pollution Degree PD2
continued on next page
RP12-AR
Series
1.0
0.5
0
-0.5
0.75
0.25
-0.25
-.075
-1.0
Deviation [%]
0 10 20 30 40 50 60 70 80 90
100
Output Load [%]
RP12-11012SAR
