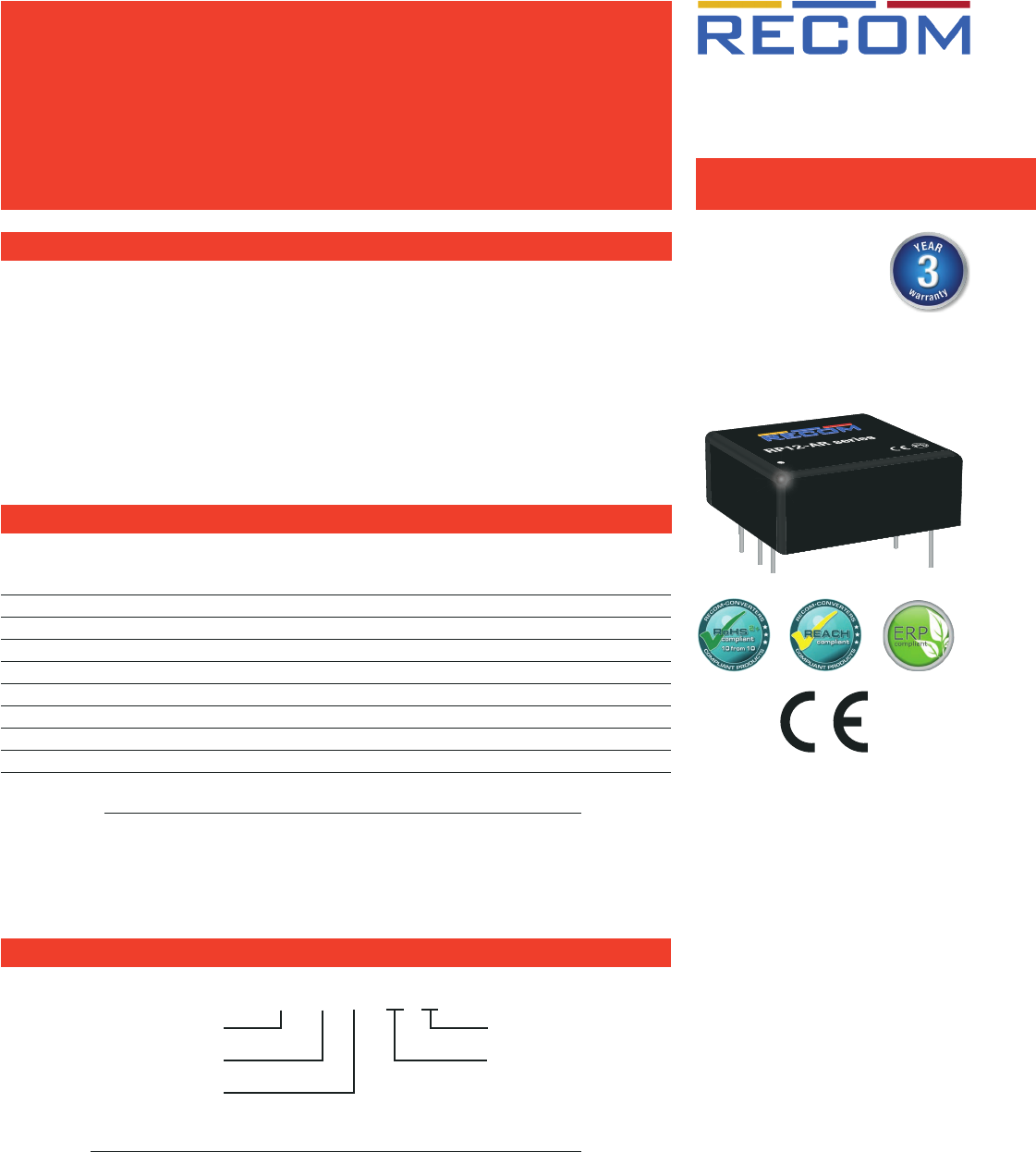

DC/DC Converter

www.recom-power.com

REV.: 0/2019 PD-1

Description

The RP12-AR series DC/DC converters are designed for railway rolling stock applications with an

extra wide continuous input voltage range of 36-160VDC (185VDC for 1s), making them suitable for

48V, 72V, 96V and 110VDC railway systems, but they are also suitable for non-railway high voltage

battery applications. They have a built-in class A ﬁlter network and offer single or dual outputs from

3.3V up to +/-24V. The high efﬁciency permits an ambient temperature range from -40°C to +85°C

without derating, forced cooling or the need for heatsinks. The RP12-AR series feature UVLO, OVP, SCP

and OLP. This makes them ideal for many harsh railway and industrial applications such as powering

IoT sensors, battery management systems or electric fork-lift trucks. The RP12-AR is available in an

industry standard 1” x 1” package and comes with a 3 year warranty.

12 Watt

1“ x 1“

Single and Dual

Output

RP12-AR

Features

Regulated

Converter

• 36-185VDC input voltage range (max.)

• 3kVDC/1 minute isolation

• -40°C to +85°C ambient without derating

• EN50155 certiﬁed, EN45545-2 compliant, CE marked

• Efﬁciency up to 90%

• Compact 1”x1” case size

Selection Guide

Part Input Output Output Efﬁciency

(1)

Max. Capacitive

Number Voltage Range Voltage Current typ. Load

(2)

[VDC] [VDC] [mA] [%] [µF]

RP12-1103.3SAR 36-160 3.3 3630 88 5200

RP12-11005SAR 36-160 5 2400 89 3600

RP12-11012SAR 36-160 12 1000 89 600

RP12-11015SAR 36-160 15 800 89 500

RP12-11024SAR 36-160 24 500 90 200

RP12-11012DAR 36-160 ±12 ±500 89 ±360

RP12-11015DAR 36-160 ±15 ±400 89 ±250

RP12-11024DAR 36-160 ±24 ±250 90 ±100

Model Numbering

Notes:

Note1: Efﬁciency is tested at nominal input and full load at +25°C ambient

Note2: Max. Cap Load is tested at nominal input and full resistive load

Notes:

Note3: add sufﬁx “P” for positive logic (1=ON, 0=OFF)

add sufﬁx “N” instead for negative logic (0=ON, 1=OFF)

or sufﬁx /XC for omitted CTRL pin (refer to dimension drawing)

Ordering Examples:

RP12-11005SAR/P 36-160Vin 5Vout single output positive logic

RP12-11012DAR/N 36-160Vin ±12Vout dual output negative logic

RP12-11024SAR/XC 36-160Vin 24Vout single output no CTRL pin

CTRL Logic

(3)

Railway

nom. Input Voltage

Output Voltage

Single or Dual

RP12-__ __ _A R/ _

IEC/EN60950-1 certiﬁed

EN50155 certiﬁed

EN55032 compliant

Summary of content (8 pages)

PAGE 1
Features Regulated Converter • • • • • • 36-185VDC input voltage range (max.
PAGE 2
RP12-AR DC/DC Converter Series Specifications (measured @ ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated) BASIC CHARACTERISTICS Parameter Condition Min. Typ. Max. Internal Input Filter Pi type Input Voltage Range nom. Vin= 110VDC Input Surge Voltage 1 second max. Under Voltage Lockout (UVLO) 36VDC 35.5VDC DC-DC ON DC-DC OFF 32VDC 34VDC 130mA nom. Vin= 110VDC Quiescent Current 8mA no load Output Voltage Trimming 160VDC 185VDC nom.
PAGE 3
RP12-AR DC/DC Converter Series Specifications (measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated) OUTPUT VOLTAGE TRIMMING Output Voltage Trimming It allows the user to increase or decrease the output voltage of the module. This is accomplished by connecting an external resistor between the Trim pin and either the +Vout or -Vout pins. With an external resistor between the Trim and -Vout pin, the output voltage increases.
PAGE 4
RP12-AR DC/DC Converter Series Specifications (measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated) RP12-11012SAR Trim up Voutset = Rup (E96) ≈ 1 2 3 4 5 6 7 8 9 10 [%] 12.12 12.24 12.36 12.48 12.60 12.72 12.84 12.96 13.08 13.20 [VDC] 205k 10k 64k9 47k5 36k5 29k4 24k9 20k1 17k9 15k8 [W] Trim down 1 2 3 4 5 6 7 8 9 10 Voutset = 11.88 11.76 11.64 11.52 11.40 11.28 11.16 11.04 10.92 10.
PAGE 5
RP12-AR DC/DC Converter Series Specifications (measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated) Deviation vs. Load RP12-11012SAR 1.0 0.75 Deviation [%] 0.5 0.25 0 -0.25 -0.5 -.075 -1.0 0 10 20 30 40 50 60 70 80 90 100 Output Load [%] PROTECTIONS Parameter Type Value Short Circuit Protection (SCP) below 100mW Over Voltage Protection (OVP) 3.3Vout 5Vout 12Vout 15Vout 24Vout continuous, auto recovery 3.7 - 5.4VDC 5.6 - 7.0VDC 13.5 - 19.6VDC 18.3 - 22.
PAGE 6
RP12-AR DC/DC Converter Series Specifications (measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated) Parameter Condition 5Hz to 150Hz Transverse: 0.45m/s² Longitudinal: 0.7m/s² Vertical: 1.01m/s² Duration: 10min/axis 5Hz to 150Hz Transverse: 2.55m/s² Longitudinal: 3.86m/s² Vertical: 5.
PAGE 7
RP12-AR DC/DC Converter Series Specifications (measured @ Ta= 25°C, nom.
PAGE 8
RP12-AR DC/DC Converter Series Specifications (measured @ Ta= 25°C, nom. Vin, full load and after warm-up unless otherwise stated) DIMENSION AND PHYSICAL CHARACTERISTICS Parameter Type Value Material case potting PCB copper silicone, (UL94 V-0) FR4, (UL94 V-1) Dimension (LxWxH) 25.4 x 25.4 x9.9mm Weight 16.5g typ. Dimension Drawing (mm) Pinning information 25.4 Pin # 1 2 3 4 5 6 5.6 9.9 25.4 2.54 8 x 2.54= 20.32 Ø 1.0±0.1 2 Bottom View 3 5 3 2 1 2.
