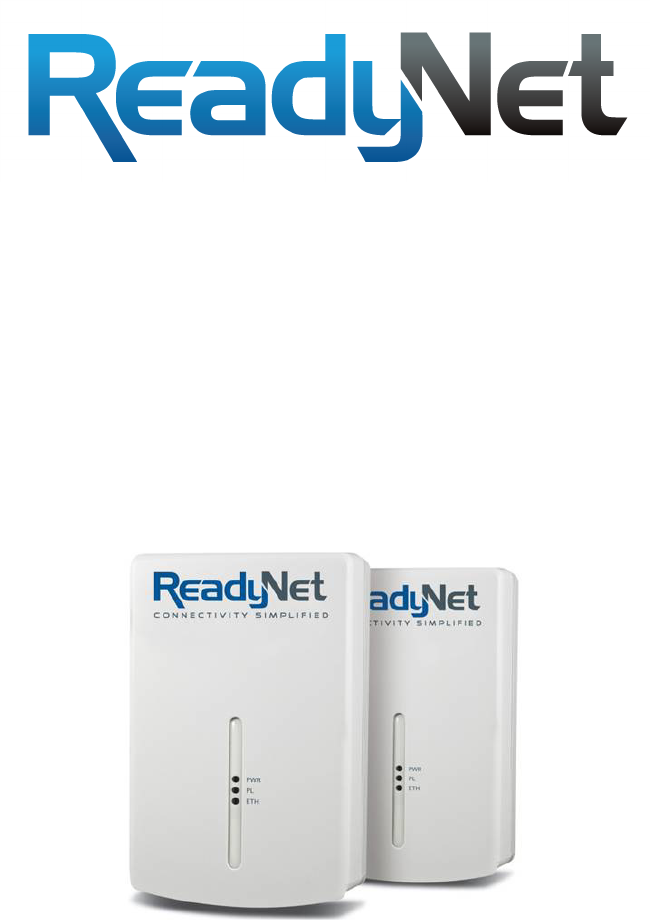

User Manual Model Number E200 HomePlug AV Ethernet Adapter
Table of Contents 1 HomePlug Powerline ................................................................................................................................... 4 1.1 1.2 1.3 Introduction ..................................................................................................................................................... 4 System Diagram .............................................................................................................................................
1 HomePlug Powerline HomePlug Powerline is an excellent solution that can be used to extend your network. In the home or small office building, use HomePlug Ethernet Adapters to link multiple locations without the need to run long Ethernet cables. Combined with a broadband DSL/Cable connection, every room with electrical power outlets will have easy access to high-speed Internet connection.
1.3 Casing Details Front Casing The front casing contains 3 status lights: Power, PLC Link, and Ethernet Link.
Bottom Casing The bottom casing contains a recessed Reset Button, a Security Button, and an Ethernet Port. Ethernet Port Reset Button Security Button Buttons Security This button is designed to generate an individual HomePlug AV network group under multiple nodes environment. Please refer to the optional Individual HomePlug AV Network Setup section below for more details. Reset This button is used to clear ALL data and restore ALL settings to the factory default values.
2 Individual HomePlug AV Network Setup (Optional) All HomePlug AV Ethernet Adapters ship with a default security key so they will automatically link to all other HomePlug AV Ethernet Adapters sharing the same electrical lines. If there are other HomePlug AV Ethernet Adapters in the building (such as in an office or apartment building), you may want to create your own individual HomePlug AV net- work group so other HomePlug AV Ethernet Adapters cannot connect to your network.
2.2 Adding Adapter C to existing Network AB (Network ABC) One unassociated Adapter C is added to an existing Network AB. The procedure is as follows: 1. Press and hold the Security button on Adapter C for 10 seconds. Release it when the Power light flashes. The password to Adapter C has just been erased. It must now be linked to your network to adopt the new network security key. 2. Press and hold the security button on Adapter A for 2 seconds. The Power light on Adapter A starts to flash. 3.
The procedure is as follows: 1. Press and hold the Security button on Adapter B for 10 seconds. Release it when the Power light flashes. The password to Adapter B has just been erased and removes itself from Adapter A & C. 2. Press and hold the Security button on Adapter D for 2 seconds. 3. Within 120 seconds after the Power light on Adapter D starts to flash, press and hold the Security button on Adapter B for 2 seconds then release. 4.
4 Specifications Main Chipset Atheros INT6400 Computer Interface IEEE802.3 ; IEEE802.3u Data PHY Rate Up to 200 Mbps Standards HomePlug AV Network Interface One RJ-45 (10/100Base-T Ethernet) One 200Mbps Power Line Port supporting co-existence with HomePlug 1.
