Wireless Receiver

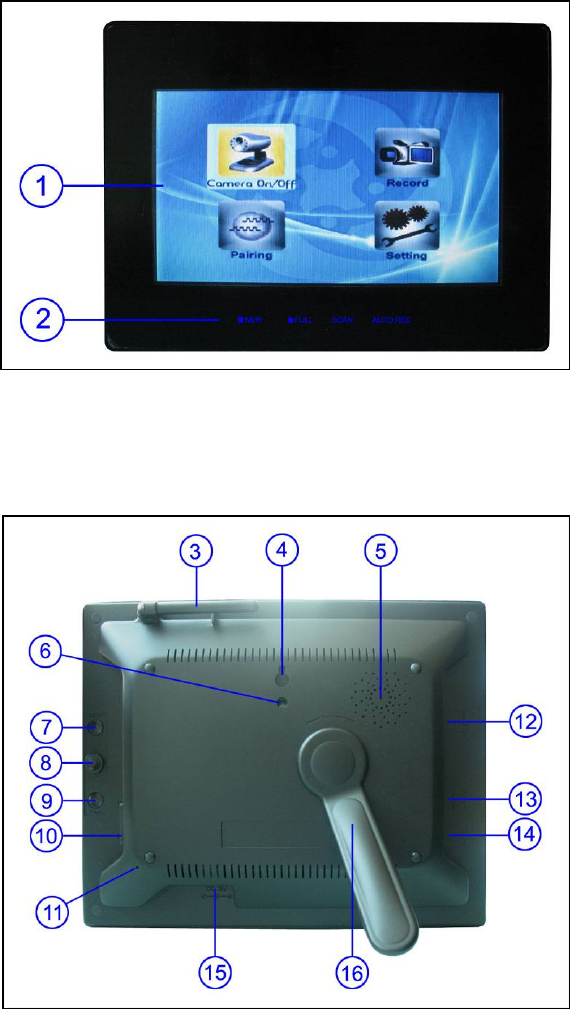

Front Controls
1. LCD Screen – Displays video from the
camera(s) or displays system operations.
2. Indication LEDs – Indicates the status
of the system. There are 4 indication
LEDs:
NEW: Indicates new recorded video.
FULL: Indicates that the SD card is full of
memory. It is only available when
Overwrite is disabled.
SCAN: Indicates that the receiver is in
scan mode (screen saver).
AUTO REC: Indicates that the receiver is in auto recording mode. Receiver starts to record when there is
motion detection in camera side.
Back Controls
3. Receiver Antenna – receives & sends
signals from or to the camera(s). Adjust
the antenna to vertical position when the
signal reception is not good.
4. Hanging Hole – Insert the screw which
is already installed on a wall into the hole,
and push the receiver downwards to hang
the receiver on the wall.
5. Speaker – Produces the sound
transmitted from the camera(s).
6. Wall Mounting Hole – Screw the wall
mounting bracket to the hole, then fix the
bracket to the wall to mount the receiver
on the wall.
7. MENU Button – Press to access the receiver menu. Press the button again to exit.
8. Joystick – In viewing mode, press down the joystick to enter playback interface for recorded videos.
In quad mode, push the joystick to a certain number to view the image from the corresponding camera in
full screen mode.
In menu mode, use the joystick (UP/DOWN/LEFT/RIGHT ▲▼◄► arrows) for system setting or menu
selection, and press it down to confirm the selection or setting.
In playback mode, use the joystick to play/pause, stop, forward, backward, etc.
