Connections & Setup
Chapter 1 9

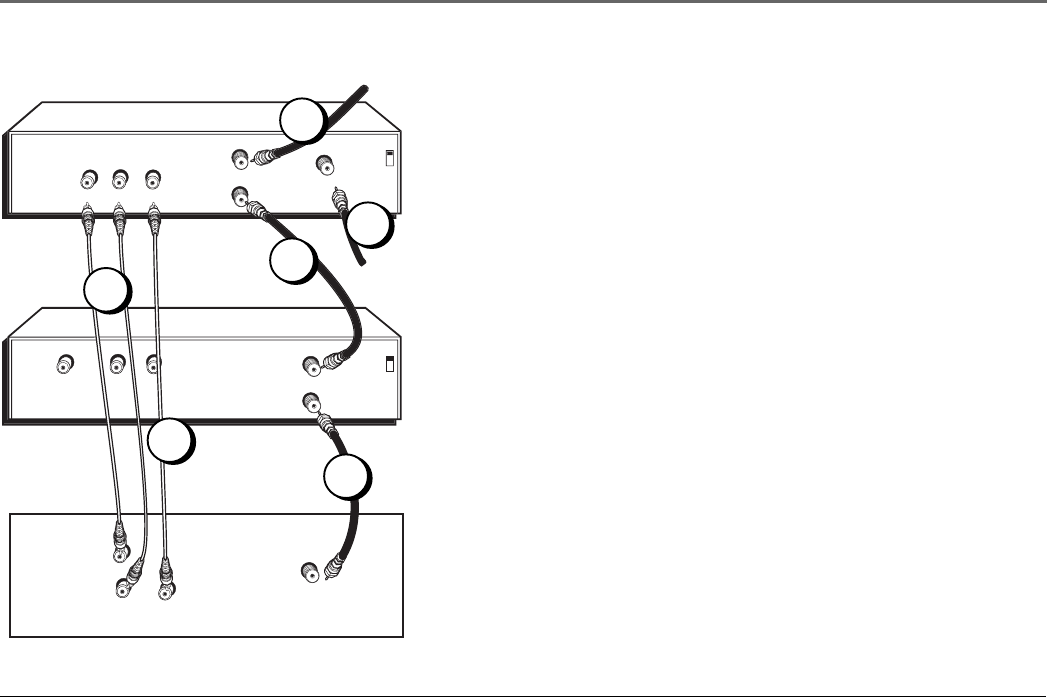

TV + VCR + Satellite Receiver
1. Connect your Satellite Receiver to your TV
A. Connect the audio/video cables. Connect the audio cables (white and
red) to the AUDIO input jacks on the back of the TV (R and L/MONO)
and to the Audio Output Jacks on the Satellite Receiver.
B. Connect the video cable (yellow) to the VIDEO input jack on the back
of the TV and to the Video Output Jack on the satellite receiver.
2. Connect coaxial cables to the Satellite Receiver
A. Connect the coaxial cable from your cable outlet, cable box, or
antenna to the Input Jack on your satellite receiver (sometimes labeled
IN FROM ANT).
B. Connect the coaxial cable from your satellite dish antenna to the Input
Jack on your satellite receiver (sometimes labeled SATELLITE IN).
3. Connect the Satellite Receiver to the VCR and to the TV
A. Connect a coaxial cable to the Output Jack (sometimes labeled OUT
TO TV) on the satellite receiver and to the Input Jack on the VCR
(sometimes labeled IN FROM ANT).
B. Connect a coaxial cable to the Output Jack on the VCR (sometimes
labeled OUT TO TV) and to the ANTENNA jack on the TV.
Go to page 10
INPUTS
C
H
3
CH4
SATELLITE RECEIVER
L
R
VIDEO
OUT
IN FR
O
M AN
T
OUT TO TV
SATELLITE
IN
IN FROM ANT
OUT TO TV
CH3
CH4
VCR
VIDEO
OUT
LR
AUDIO
TV (back panel)
ANTENNA
Fr
o
m
C
able
o
r An
t
enn
a
S
a
t
elli
t
e
Si
g
na
l
VIDEO
AUDIO
L/MONO
R
2A
2B
3B
1A
1B
3A
