Connections & Setup
8 Chapter 1
IN FROM ANT
OUT TO TV
CH3
CH4
VCR
VIDEO
OUT
LR
AUDIO
TV (back panel)
ANTENNA
VIDEO
AUDIO
INPUTS
Fr
o
m
C
ab
l
e
o
r An
t
enn
a
L/MONO
R

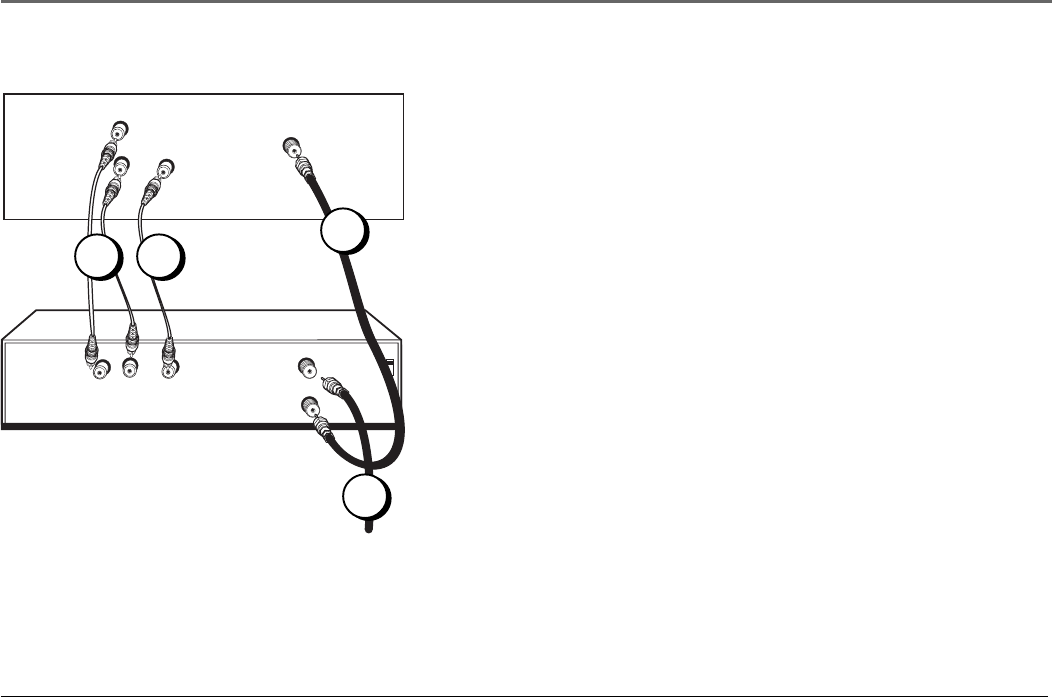

TV + VCR
1. Connect your TV to your VCR
A. Connect a coaxial cable to the ANTENNA jack on your TV and to the
Output Jack on your VCR (sometimes labeled OUT TO TV).
B. Connect the audio/video cables. Connect audio cables (white and red)
to the AUDIO input jacks on the back of the TV (R and L/MONO) and
to the Audio Output Jacks on the VCR (sometimes labeled OUT R L).
C. Connect the video cable (yellow) to the VIDEO input jack on the back
of the TV and to the Video Output Jack on the VCR.
2. Connect cable or antenna to your VCR
Connect the coaxial cable from your cable outlet, cable box, or antenna to
the Input Jack on your VCR (sometimes labeled IN FROM ANTENNA or IN
FROM ANT).
Go to page 10
1B
2
1C
1A
