Appendix b: Speaker placement
Speaker Placement

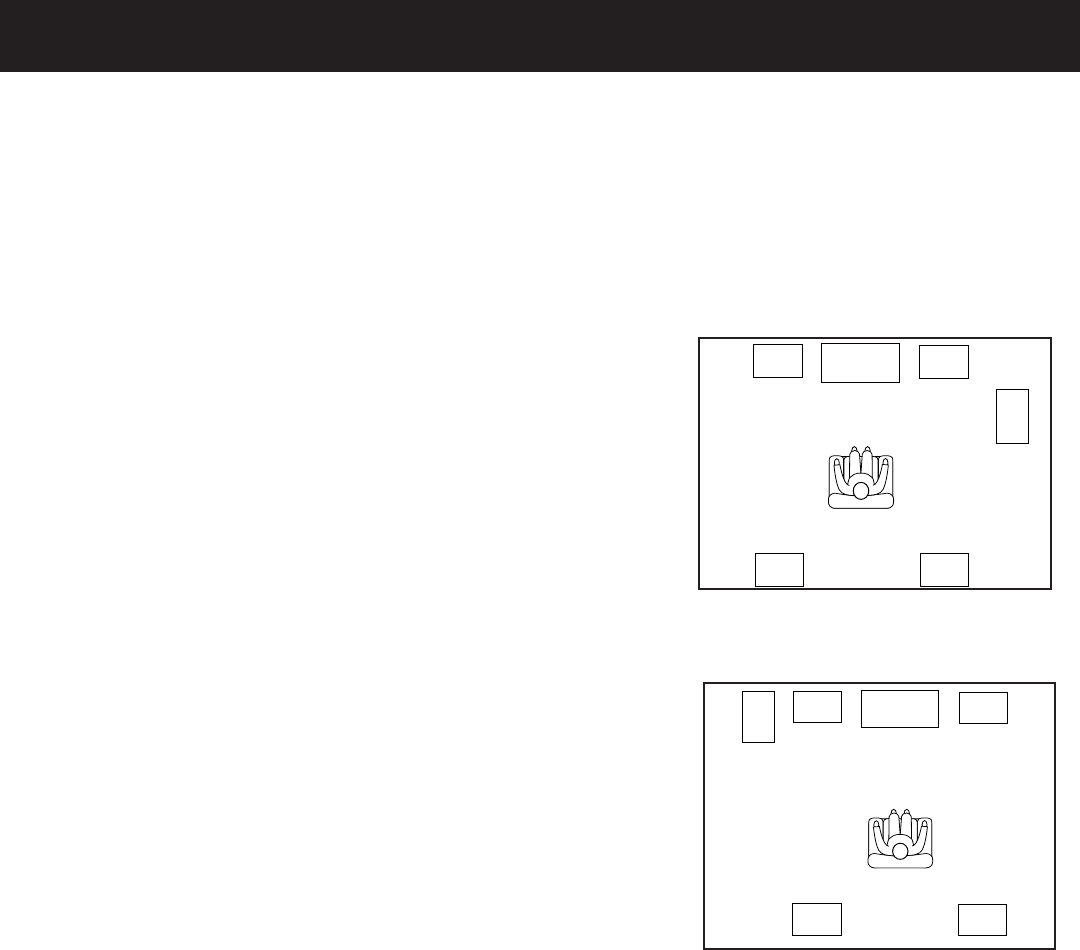

These diagrams offer suggested speaker placements that can
enhance your home theater experience.
Place the subwoofer anywhere you want.
Example 1
This five-speaker configuration is an effective option for
recreating in any room the full cinema experience. It can be
adapted to suit your taste and listening space. This five-
speaker configuration is an effective option for Dolby
Surround sound applications.
Example 2
This configuration is recommended for four speakers. It
provides Dolby Pro Logic Surround sound without a center
speaker. Choose Phantom for the Center mode.
Rear
Left
Main
Right
TV
Center
Opt.
Subwoofer
Main
Left
Rear
Right
Rear
Left
Main
Right
TV
Opt.
Subwoofer
Main
Left
Rear
Right
