Appendix A: Connecting the Receiver
Camcorder or Video Camera
If your camcorder or video camera does not have an RCA type
terminal for audio/video, you can purchase an adapter from
an RCA dealer or electronics parts store.
This connection provides
• stereo sound if the camcorder records or plays
in stereo
To use this connection, you
should have
• (1) paired (red/white) stereo cable
• (1) single (yellow) video cable
To Connect

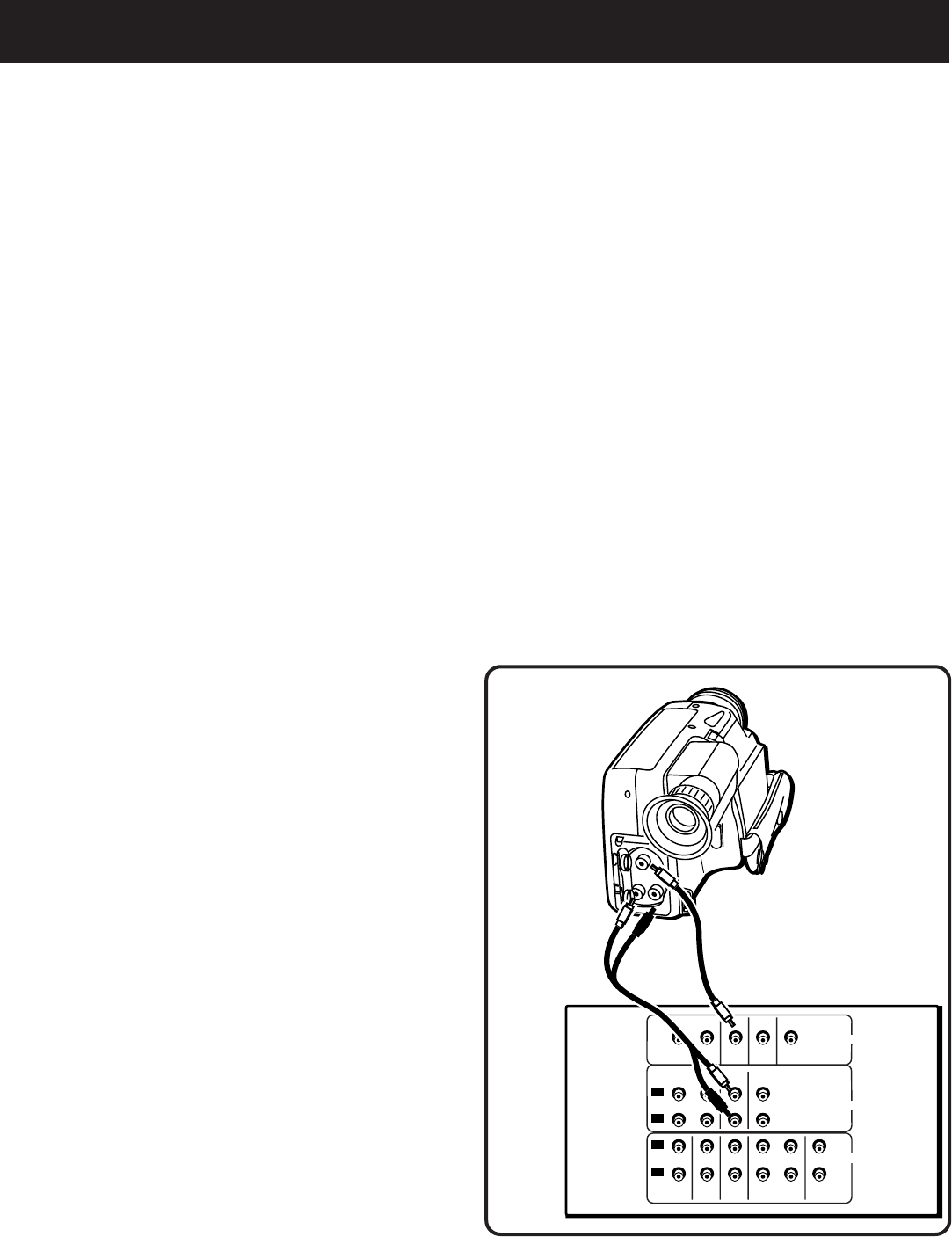

1. Connect the cables as shown in the
diagram below.
If the VCR2•LD connection is being used,
connect the camcorder or video camera
to any other available video input.
Using This Connection
To play the camcorder
1. Turn on the camcorder or video camera.
2. Press VCR2•LD.
3. Press PLAY on the camcorder or
video camera.
AUDIO
RECEIVER
IN OUT
IN OUT
IN OUT
1
2
VIDEO
SUB WOOFER
OUT
AUDIO
SOURCE
VCR 2/
LD
MONITOR
OUT
CD TAPE/MDTV
VCR 1 DSS
VCR 2/
LD
VCR 1 DSS
AUDIO
AUDIO
L
R
L
R
(MONO)
VIDEO
AUDIO
L
R
