Appendix A: Connecting the Receiver
Second VCR
Using this connection enables you to play a video tape but
not record a tape.
This connection provides
• stereo, surround sound, or mono on the VCR
• VCR playback only
To use this connection, you
Should have
• (1) paired (red/white) stereo cable
• (1) single (yellow) video cable
• (1) coaxial cable
To Connect

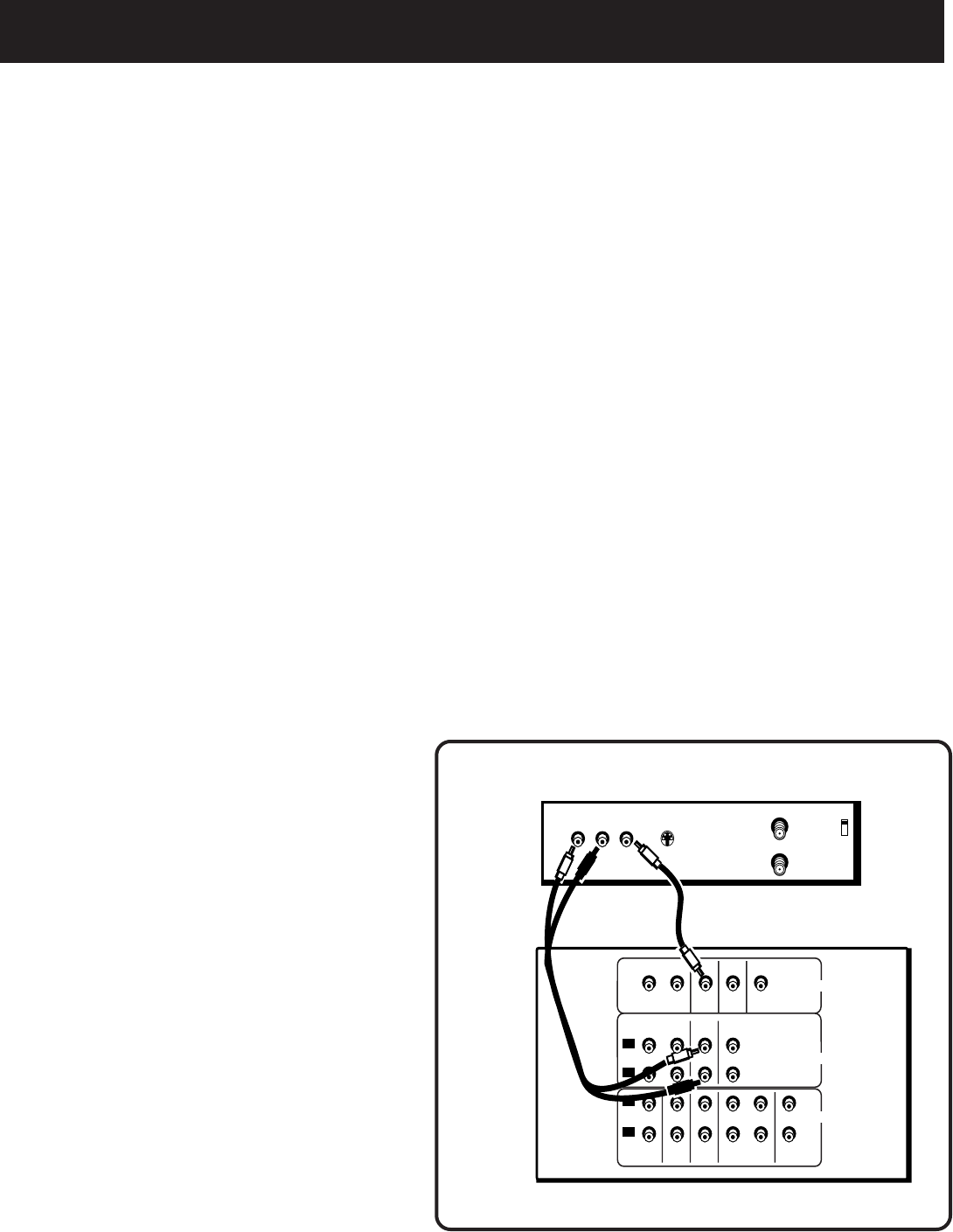

1. Connect the cables as shown in the
diagram below.
Using This Connection
To play a tape on the second VCR
1. Press VCR2•LD.
2. Press PLAY.
AUDIO
RECEIVER
IN OUT
IN OUT
IN OUT
(MONO)
1
2
VIDEO
SUB WOOFER
OUT
AUDIO
SOURCE
VCR 2/
LD
MONITOR
OUT
CD TAPE/MDTV
VCR 1 DSS
VCR 2/
LD
VCR 1 DSS
AUDIO
AUDIO
L
R
L
R
SECOND
VCR
OUT TO TV
CH3
CH4
L
R
AUDIO
S-VIDEO
IN FROM ANT
VIDEO
