AUDIO/VIDEO RECEIVER User's Guide

18

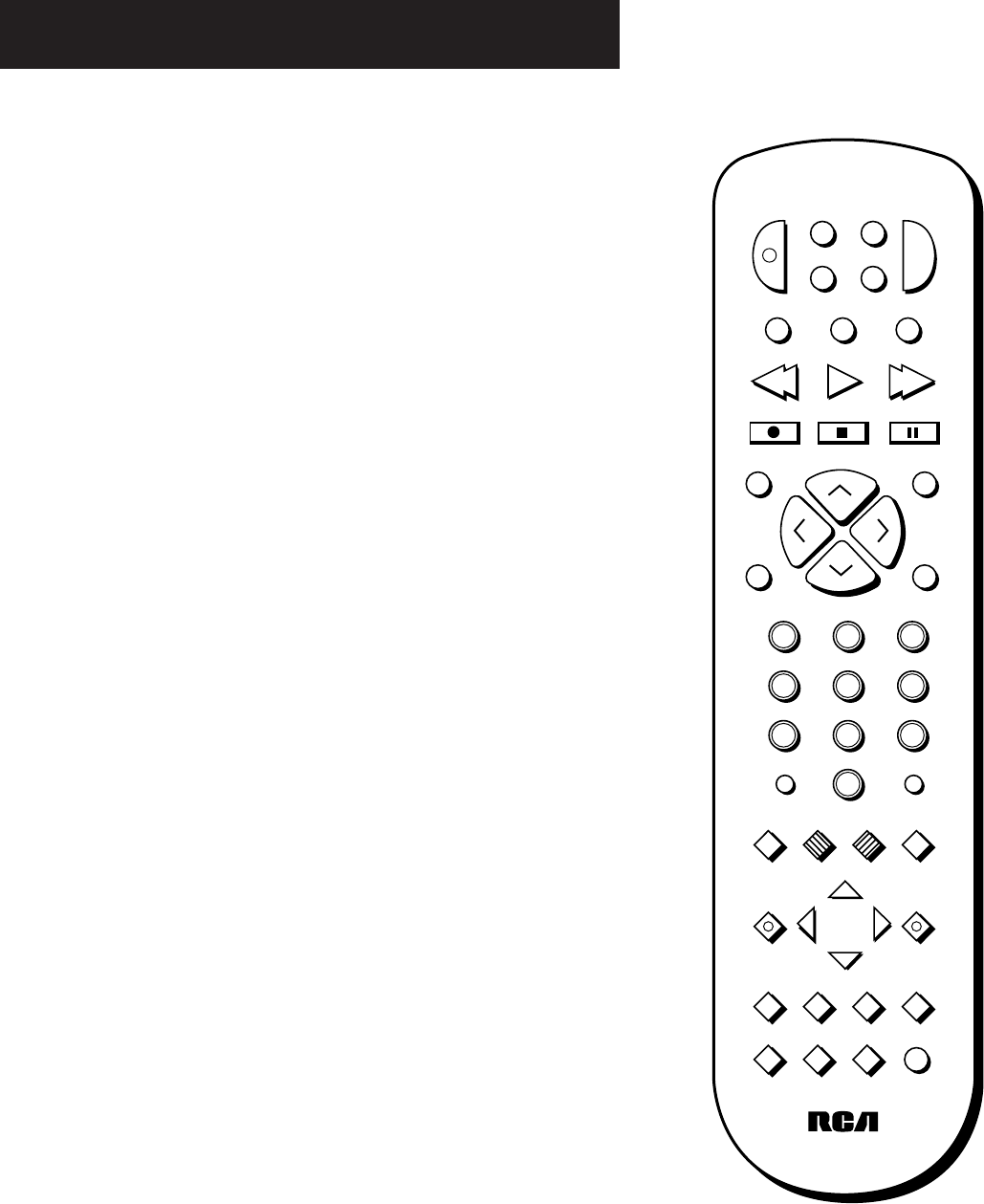

Universal Remote Control
Your RCA Universal Remote Control is capable of operating
most RCA audio and video equipment. To use the remote
control effectively, always aim it directly at your receiver.
The remote control operates on four batteries, included with
your system. Install them before attempting to operate the
remote. Be sure to match the + and - ends of each battery to
the symbols shown in the remote’s battery compartment.
Basic Controls
MUTE Turns off the receiver’s sound. Press again to restore
the sound.
POWER Turns the AM/FM receiver off with one press. If you
have multiple components turned on and not the AM/FM
receiver, pressing POWER once turns off the last component
turned on. Pressing POWER again turns off all components.
VOL UP and DOWN Increases or decreases the volume.
Receiver Controls
AM•FM Activates the tuner and toggles between the AM
band and the FM band.
CTR MODE Changes the Center mode when using Dolby
Pro-Logic Surround or Dolby 3 Stereo surround modes. Press
once and the current mode appears. Press again to change
the mode.
DELAY/CH CTRL Selects the amount of Surround Sound delay
between the main and rear speakers. Choose from 15, 20 or
30 milliseconds. Press once and the current setting appears.
Press again to change the setting.
SURROUND Lets you select a Surround Mode: Dolby
Pro Logic Surround, Dolby 3-Stereo, Hall or By-Pass. Press once
and the current mode appears. Press again to change the
mode.
Tour of the Receiver
VCR 2
•
LD
AM
•
FM TAPE AUX
CD
P
O
W
E
R
V
C
R
1
D
S
S
•
C
A
B
L
E
T
V
SKIP
GUIDE
•
RDM
MUTE PREV CH
•
DISC
REC PAUSE
PLAYREW FF
STOP

C
H
A
N
C
H
A
N
V
O
L
V
O
L
INPUT
•
SEEK
RESET
•
REPDISPLAY
TV MENUMENU
PROGRAM
DELAY
CH CTRL
MOVE
1
4
7
2
5
8
0
ANTENNA
3
6
9
CLEAR
PIP SWAP PIP
CTR MODE
BY-PASS SWAP
AUDIO
LEVEL
S
U
R
R
O
U
N
D
REAR
CTR

•
–
+
u
n
i
v
e
r
s
a
l
