At the end of the firmware process, the front panel lights for that channel will alternate then
both stay on and then only the single processor LED should remain lit.
IMPORTANT NOTE: Do not switch off the power or interrupt the connection between the
PCCT and P25net CC during firmware updates. Wait until the single Processor LED
remains lit before any other action.
3.7 Initialise Mode
In this mode, the user can examine and modify the current IP address of the Controller Card.
The user can also examine the MAC address, license key, license status (Valid or Invalid), and
board identifier of the Controller Card.

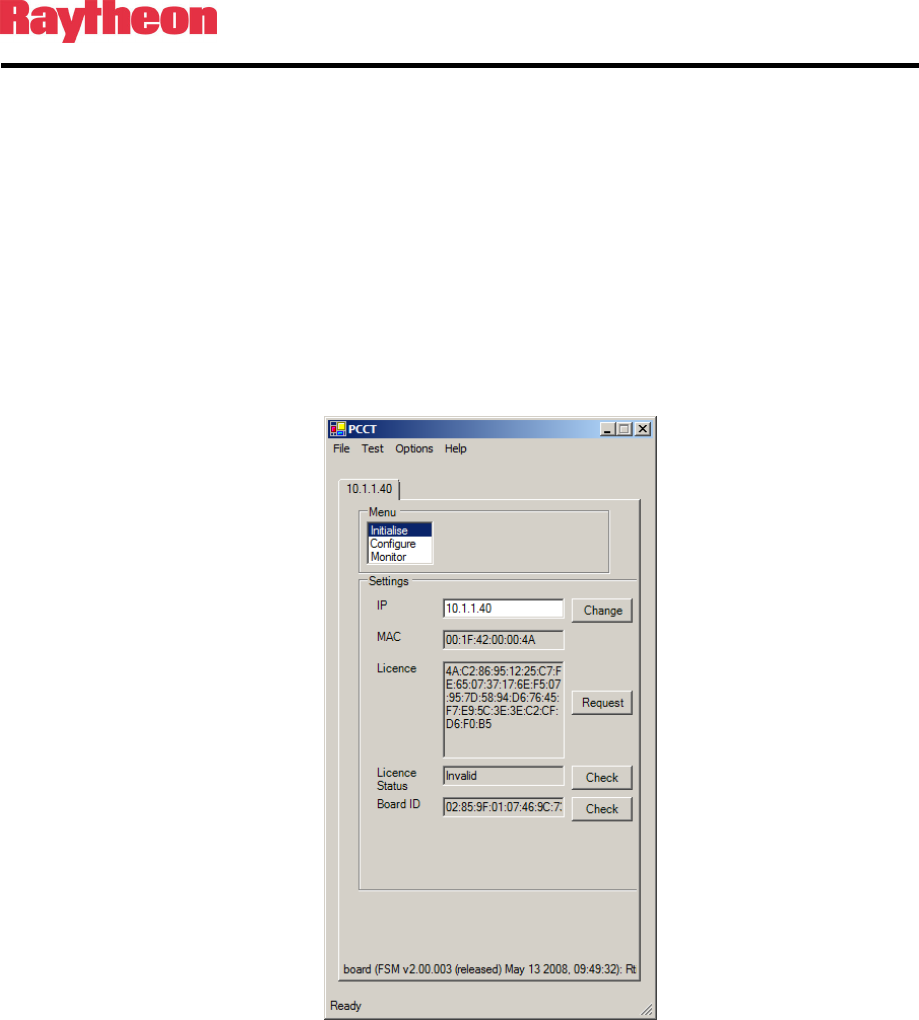

Figure 3-7 Initialise Mode Window
By default, the MAC address and license key are not user-editable. They can be edited by
enabling ‘Allow MAC/License Key Editing’ from the Options menu. Note that each board
should have a unique MAC from all other boards ever used and each IP should be distinct for
all boards that will be connected to a single BSC.
IMPORTANT NOTE: Be careful when modifying the IP address. Setting an invalid address
will not allow the PCCT to communicate with it. Also, make sure duplicate addresses are not
used (such as two or more Channel Cards having the same address)
