User's Manual

P25net Channel Controller Operations Manual
3-3

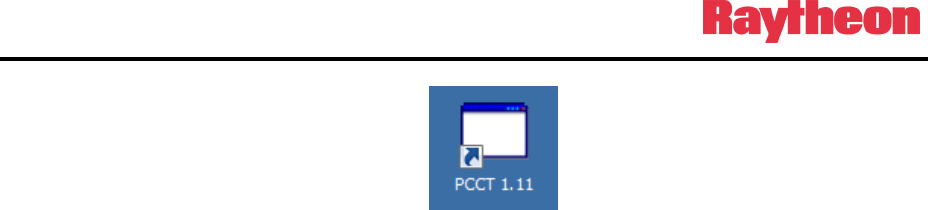

Figure 3-3 PCCT Icon
3.4 Configuring PC Network Connection
The PC must be configured to set the Local Network connection to the same address range as
the Channel Card. See Figure 3-4. Typically this is done by selecting:
Control Panel>Network Connections>Local Area Connections>Properties.
Then scroll to Internet Protocol (TCP/IP) and Click on Properties; Select “Use the Following
Address” and enter the IP address and Subnet mask to correspond to the requirement of the
Channel card address.
Assuming a default channel card address of 10.1.1.1 with a subnet mask of 255.255.0.0, this
would require the PC to be set within the same net with a different address, for example
10.1.1.10 (the PC can’t have the same address as the Channel card).
