P25net Channel Controller Operations Manual
2-7

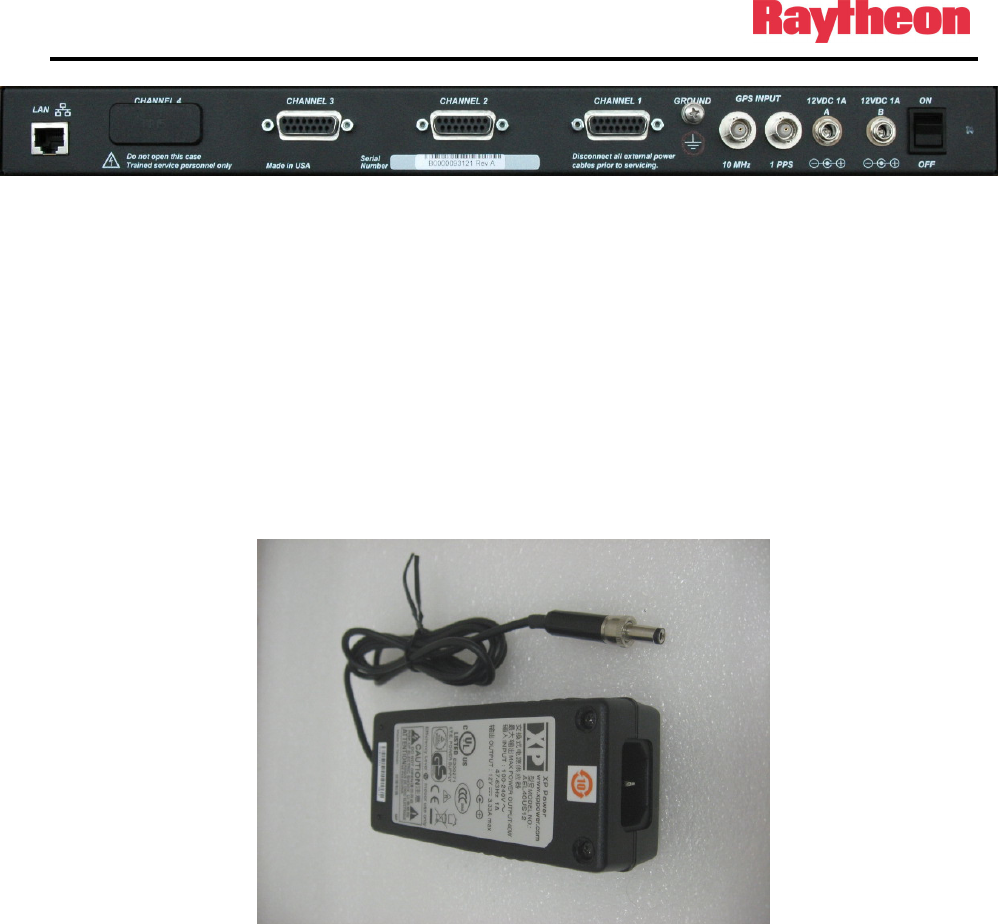

Figure 2-3 Rear Panel (3 Channel Unit shown)
2.6 AC Power Requirements
The P25net CC is supplied with two AC adapters (Figure 5) that will operate over a wide AC
voltage range (90-264VAC). The supply circuit requirement is 20VA. The adapters are
provided with locking DC plugs for connection to the P25net CC rear panel DC input jacks A
and B. The adapters supply 12VDC @ 1A to the P25net CC. Each has an IEC 320 inlet for
attaching the AC power cord (supplied).
Figure 2-4 AC Adapter
2.7 DC Power Requirements
The P25net CC will operate on +11.0 to +13.2VDC @ 1A when connected to DC Inputs A/B.
Removal of one source will have no effect on the P25net CC when running from both sources.
The front panel power LED will indicate when a source is connected and the power switch is
ON.
