Straight, lipped boot

Applications

Use in conjunction with Raychem adapters to provide

strain relief for harness systems using circular

connectors. Boot is compatible with all Raychem

grooved adapters of the appropriate shell size.

202K121 - 153 = 2 lips

202K163 - 185 = 3 lips

Mod 01 = 1 lip removed

Mod 02 = 2 lips removed

(only available in sizes 163, 174, 185).

Tan

Slight

taper

H dia.

J dia.

H dia.

J dia.

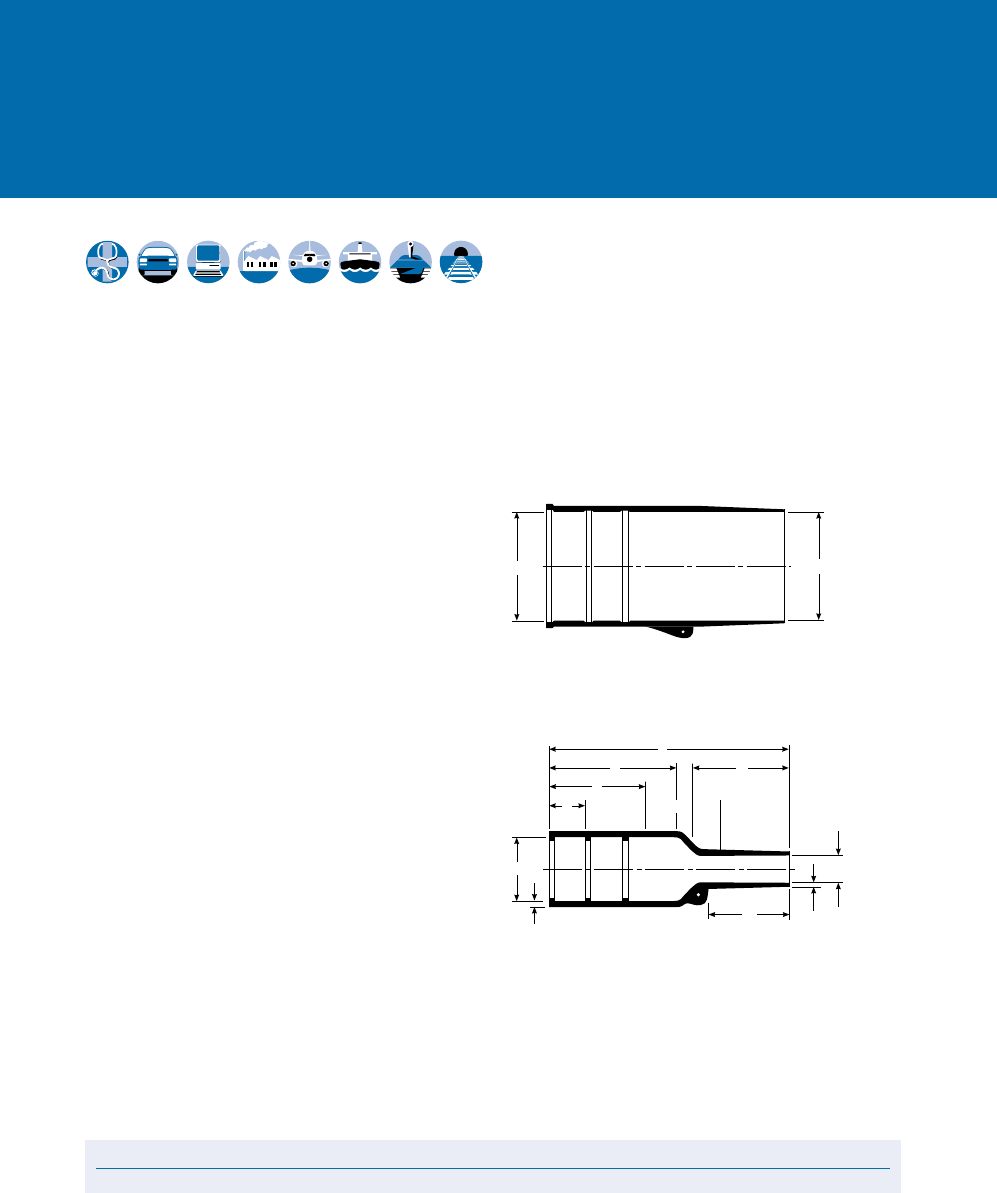

As supplied (a)

After unrestricted recovery (b)
