Owners manual

Driver Side
1. Align two (2) oblong holes of
Bracket with two (2) hex holes on
Rocker Panel. Fasten the Bracket to
the Rocker Panel using one (1) M8 x
30MM Hex Head Bolt, one (1) M8 Flat
Washer and one (1) M8 Lock Washer
per hole.
2. Locate two (2) holes on underside of Bracket and
secure the Bracket to the Pinchweld using one (1) M6
Button Head Bolt, one (1) M6 Flat Washer and one (1)
M6 Lock nut per hole.
NOTE: If no holes are present in the Pinchweld to
accomodate the Button Head Bolts, you must drill
two (2) holes into Pinchweld using a 1/4” drill bit
(see Fig. 1).
ADDENDUM
Dodge Ram Trucks Built After June 2015
With Driver Front Support Brace
Components:
Tools Required:
Hardware:
M8 x 30MM
Hex Head Bolt
Qty 2
M8 Flat
Washer
Qty 2
M8 Lock
Washer
Qty 2
M6 Button
Head Bolt
Qty 2
M6 Flat
Washer
Qty 2
M6 Lock Nut
Qty 2
10MM SOCKET 1/4” DRILL BIT DRILL
RATCHET
4MM ALLEN
WRENCH

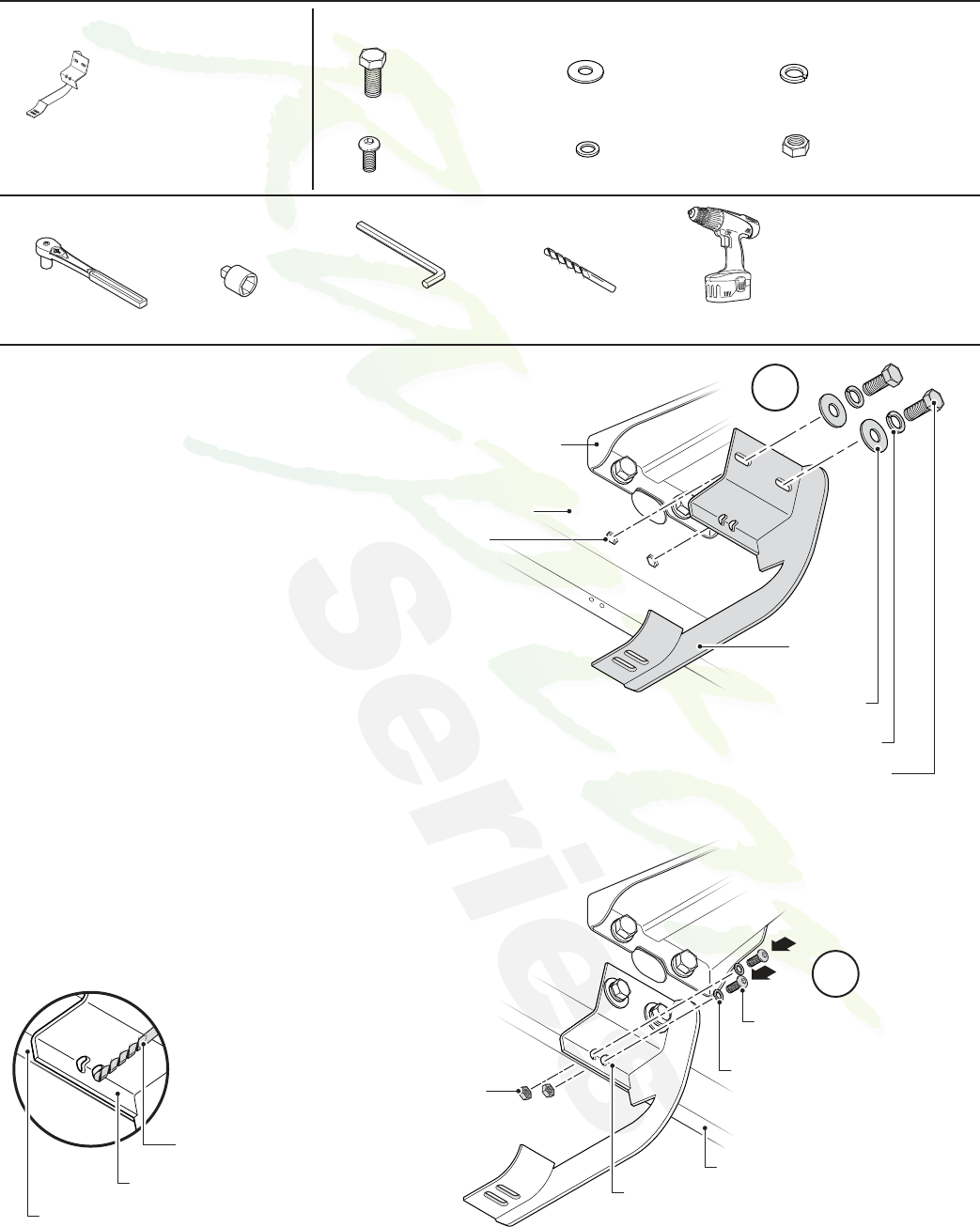

Driver Side -
Front Bracket
Qty 1
EXISTING SUPPORT
BRACE CAUSING
INTERFERENCE
2
HEX HOLE
ROCKER
PANEL
M6 BUTTON
HEAD BOLT
M6 FLAT
WASHER
M6 LOCK NUT
UNDERSIDE
OF BRACKET
PINCHWELD
Driver Side
1
BRACKET
M8 FLAT WASHER
M8 x 30 MM HEX HEAD BOLT
M8 LOCK WASHER
DRILL HOLES
WITH 1/4” DRILL BIT
BRACKET
PINCHWELD
Fig. 1
