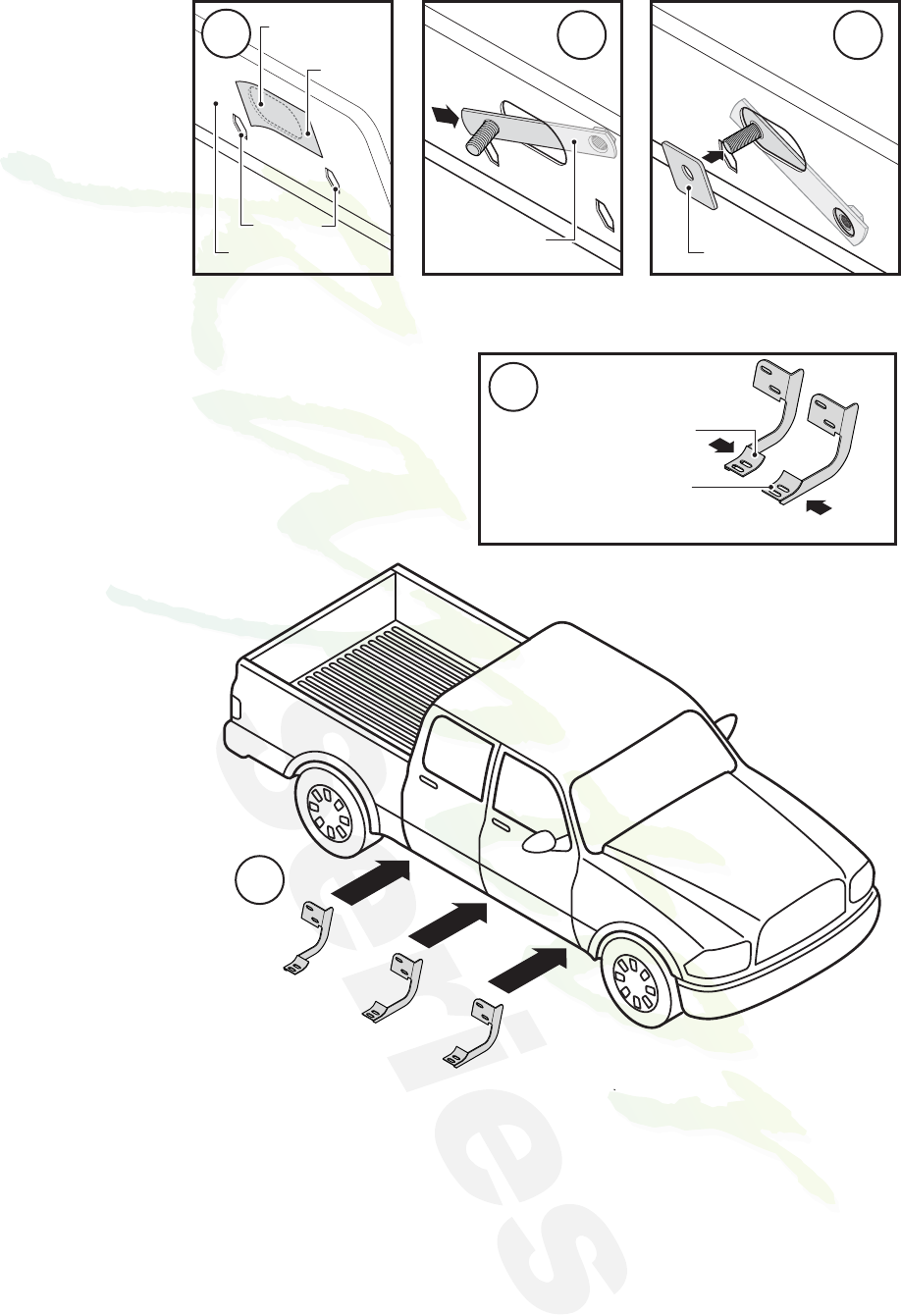

3. Remove the Tape covering
the factory oblong hole in
the rocker panel located
above the two (2) hex holes.
4. Place the Plastic Push Nut
onto the stud of the M12 Bolt
+ M10 Nut Plate (4b). Then,
slide the M12 Bolt + M10 Nut
Plate into the hole in the
rocker panel as shown (4a).
5. Front & Center Bracket
Cradle face to the rear of
truck and Rear Bracket
Cradle truck.
6. Begin installation on
passenger side. Position
Front Bracket, Center
Bracket and Rear Bracket as
shown along passenger side.
2
Passenger Side
Driver Side
TAPE
ROCKER PANEL
3
4a 4b
M12 BOLT+
M10 NUT PLATE
PLASTIC
PUSH NUT
6
OBLONG
FACTORY HOLE
HEX
HOLES
Rev 5
1202-0173M, 1202-0173MB
REAR BRACKET
CRADLE
FACING FRONTWARD
FRONT & CENTER
CRADLE
FACING REARWARD
5
