Owners manual

1202-0173M, 1202-0173MB
6” OVAL BAR
1.Remove all contents from
the package and check
stainless steel tubes for any
damage. Also, verify that all
components and hardware
listed above are included
before you begin installation.
2. Locate factory holes in six
(6) places underneath body
mount.
Passenger Side Driver Side
2 2

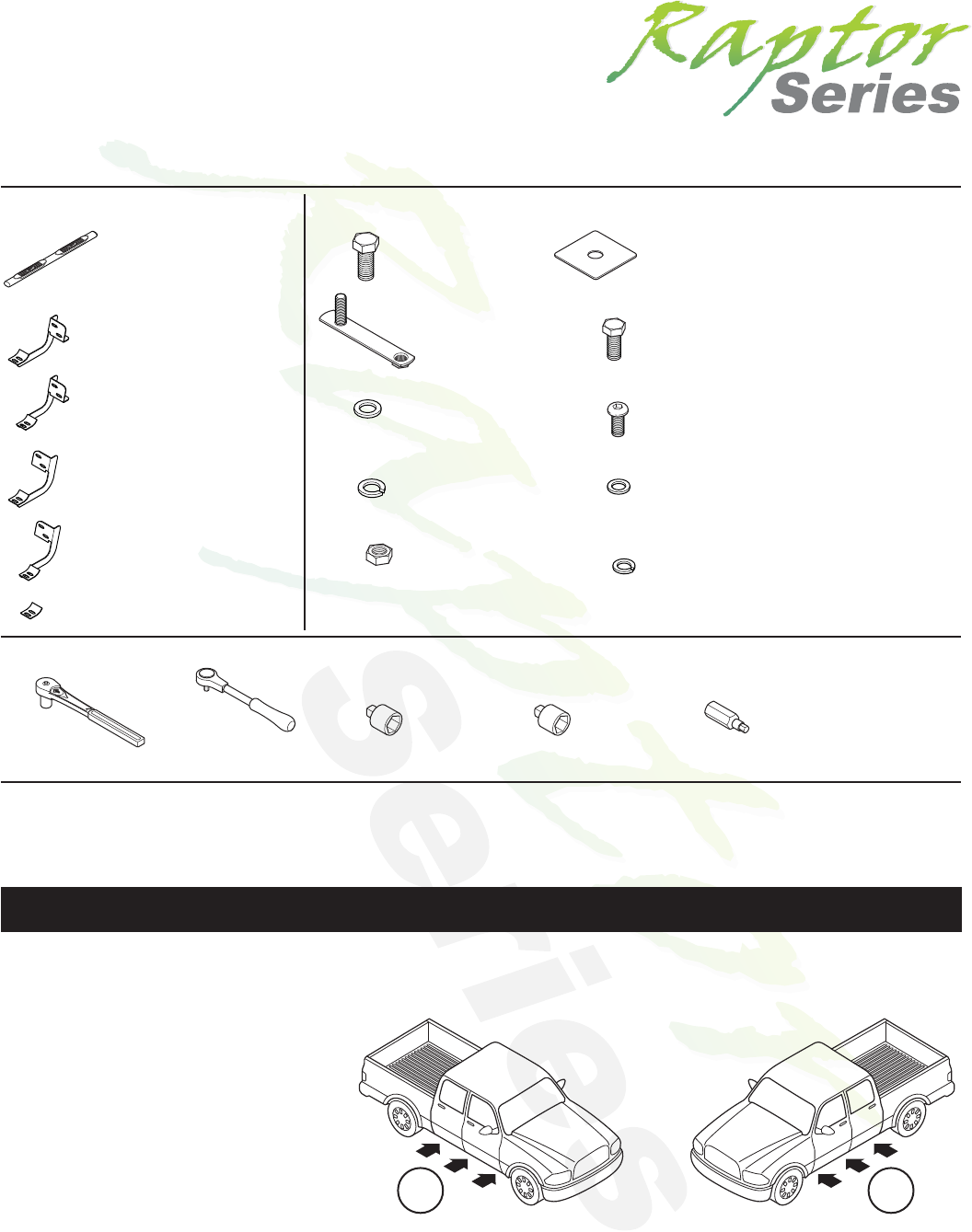

Components:
Tools Required:
Driver Side Step Bar
Qty 1
Passenger Side Step Bar
Qty 1
Hardware:
M8 x 40MM
Hex Head Bolt
Qty 6
M12 Bolt + M10
Nut Plate
Qty 6
M12 Flat
Washers
Qty 6
M12 Lock
Washers
Qty 6
M12 Hex
Head Nut
Qty 6
M10 x 40MM Hex
Head Bolt
Qty 6
Plastic Push Nut
Qty 6
M10 x 30MM
Button Head Bolts
Qty 12
M10 Flat
Washers
Qty 18
M10 Lock
Washers
Qty 18
Torque Specifications:
For Rocker Panel Mount Installations
M8 through M12 bolts and nuts are set to 15-20 ft lbs.
Note: When installing the brackets and bars, all hardware must be left loose until all the items are attached.
1
19MM SOCKET 6MM HEX BIT
RATCHET
TORQUE
WRENCH
17MM SOCKET
Driver Side - Rear Bracket
Qty 1
Passenger Side - Front
& Center
Qty 2
Driver Side - Front &
Center Bracket
Qty 2
Rubber Gasket
Qty 6
Passenger Side - Rear
Bracket
Qty 1
Rev 5
1202-0173M, 1202-0173MB
