28
INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
ArtNo.070-0014 - Stability bracket - Wall fitting
Cooker
Stability
bracket
Floor
Stability
location
bracket
Wall
Typical wall mounting
ArtNo.070-0014 - Stability bracket - Wall fitting
Cooker
Stability bracket
Floor
Stability
location
bracket
Typical oor mounting
Alternative positions
for stability location
bracket
Stability chain

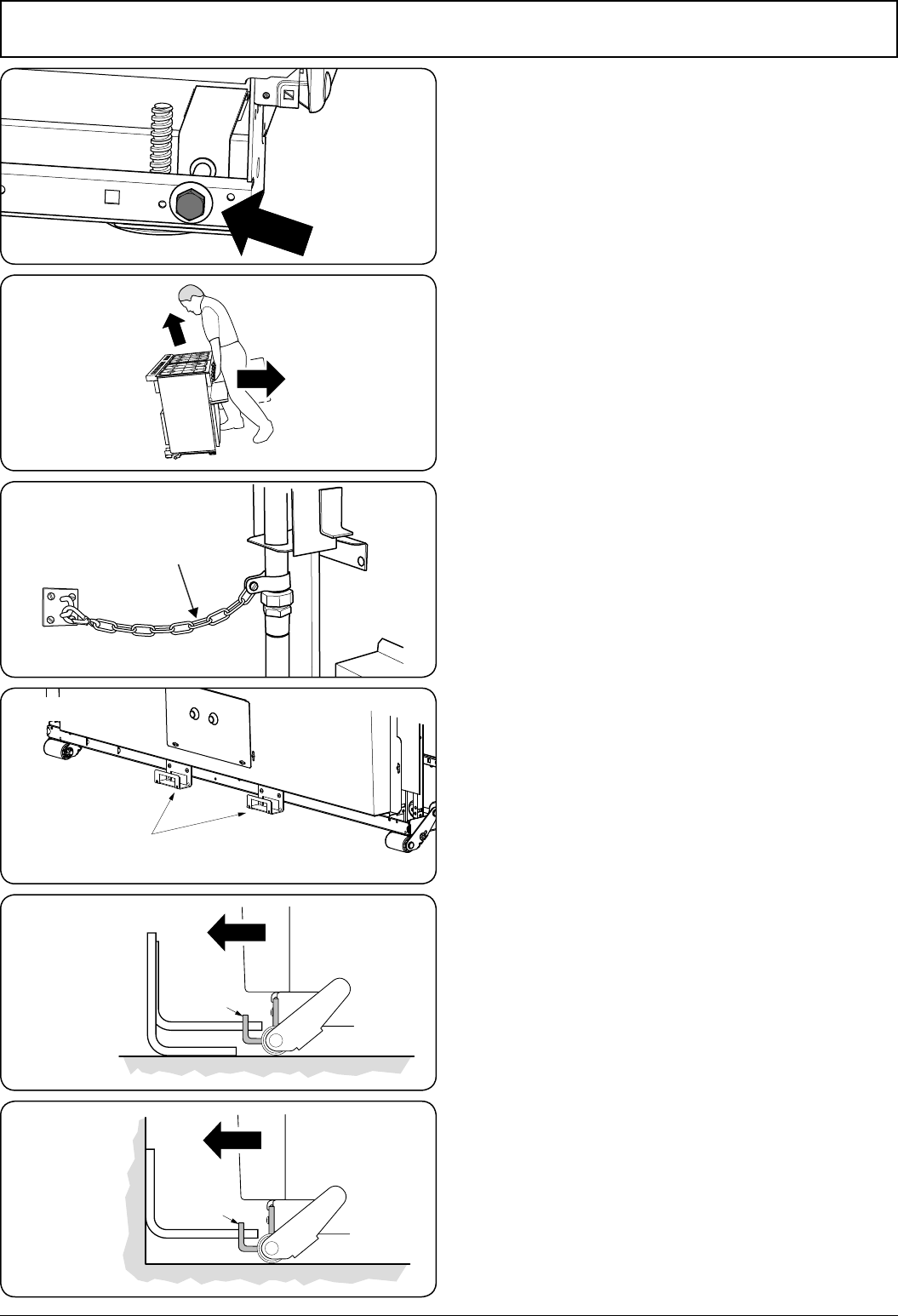

ArtNo.010-0004 Moving the cooker
Lowering the Two Rear Rollers
To adjust the height of the rear of the cooker, rst t a 13 mm
spanner or socket wrench onto the hexagonal adjusting
nut (Fig. 9.5). Rotate the nut – clockwise to raise – counter-
clockwise to lower.
Make 10 complete (360°) turns clockwise.
Make sure you lower BOTH REAR ROLLERS.
Completing the Move
Unfold the rear edge of the cardboard base tray. Open the
grill door and right-hand oven door so that you can get a
good grip on the bottom of the fascia panel as you move the
oven (Fig. 9.6).
Carefully push the cooker backwards o the cardboard base.
Remove the pack base tray.
Position the cooker close to its nal position, leaving just
enough space to get behind it.
DO NOT use the door handles or control knobs to
manoeuvre the cooker.
Fitting the Stability Bracket or
Chain
Unless otherwise stated, a cooker using a exible gas
connector must be secured with a suitable stability device.
Suitable stability devices are shown in Fig. 9.7, Fig. 9.8, Fig.
9.9 and Fig. 9.10.
If you are using a stability chain (Fig. 9.7) then the chain
should be kept as short as is practicable and xed rmly to
the rear of the cooker.
If you are using a stability bracket; rst attach the bracket
location device to the rear of the cooker (Fig. 9.8). Then
adjust the bracket to engage through the slot of the device
(Fig. 9.9 and Fig. 9.10).
Repositioning the Cooker
Following Connection
If you need to move the cooker once it has been connected
then you need to unplug it and, having gripped under the
fascia panel and lifted the front of the cooker slightly
(Fig. 9.6), you need to check behind the cooker to make sure
that the gas hose is not caught.
As you progress, make sure that both the electricity cable and
gas hose always have sucient slack to allow the cooker to
move.
With a stability chain tted, release it as you ease the cooker
out. Do not forget to ret it when you replace the cooker.
When you replace the cooker, again check behind to make
sure that the electricity cable and gas hose are not caught or
trapped.
Fig. 9.5
Fig. 9.6
Fig. 9.7
Fig. 9.8
Fig. 9.9
Fig. 9.10
