24

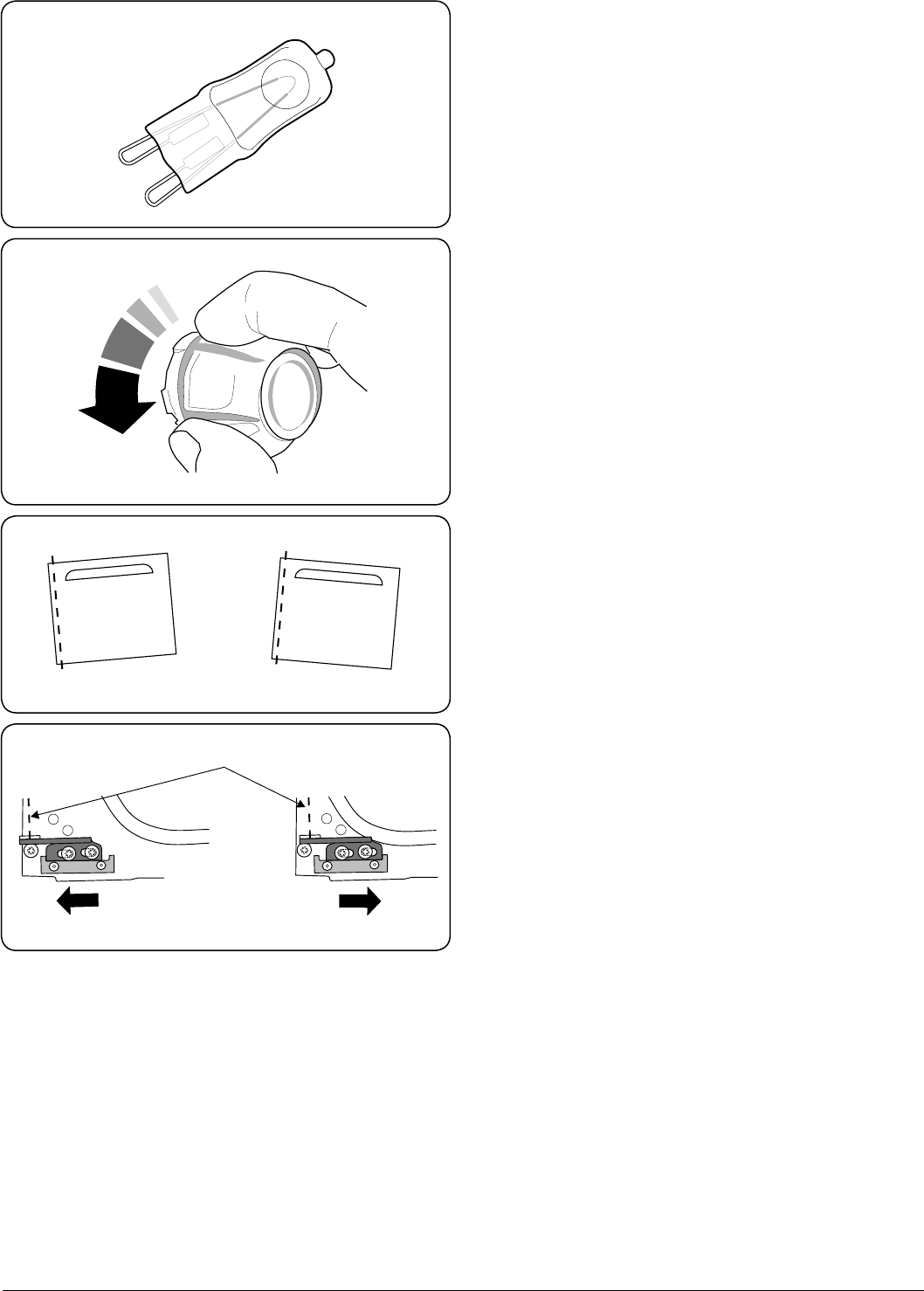

Oven light is not working
The bulb has probably burnt out. You can buy a replacement
bulb (which is not covered under the warranty) from a good
electrical shop. Ask for a 40W - 230V halogen lamp (G9)
(Fig. 8.1).
Before removing the existing bulb, turn o the power supply
and make sure that the oven and bulb have cooled. Open the
oven door and remove the oven shelves.
Remove the bulb cover by turning it a quarter turn, counter-
clockwise. It may be very sti (Fig. 8.2).
Pull the existing bulb to remove it. When handling the
replacement bulb, avoid touching the glass with your ngers,
as oils from your hands can cause premature failure. Push,
click in the replacement bulb.
Replace the bulb cover by turning it a quarter turn, clockwise.
Turn on the circuit breaker and check that the bulb now
lights.
The left-hand oven door is misaligned
The bottom hinge of the left-hand oven door can be adjusted
to alter its angle (Fig. 8.3).
Loosen the bottom hinge xing screws and use the notch and
a at bladed screwdriver to move the position of the hinge to
set the hinge position (Fig. 8.4).
Retighten the hinge screws.
NOTE: The tall oven door cannot be adjusted
The fascia gets hot when I use the oven or grill
The cooker is cooled by a fan. If the fascia becomes
excessively hot when the cooker is in use then the cooling
fan may have failed. Should this occur please contact your
installer, a qualied repair engineer or Customer Service to
arrange for its repair.
The knobs get hot when I use the oven or the grill. Can I
avoid this?
Yes, this is caused by heat rising from the oven or the grill,
and heating them up. DO NOT leave the oven door open.
Make sure that the grill pan is pushed right back to the ‘back
stop’ when grilling.
Always grill with the grill compartment door open.
ArtNo.320-0007 Oven door hinge adjustment 2
Eect of hinge adjustment – exaggerated for clarity
Oven door omitted for clarity
Centre line of hinge pin
Fig. 8.1
Fig. 8.2
Fig. 8.3
Fig. 8.4
