TSM1N45
450V N-Channel Power MOSFET
7/9 Version: C09

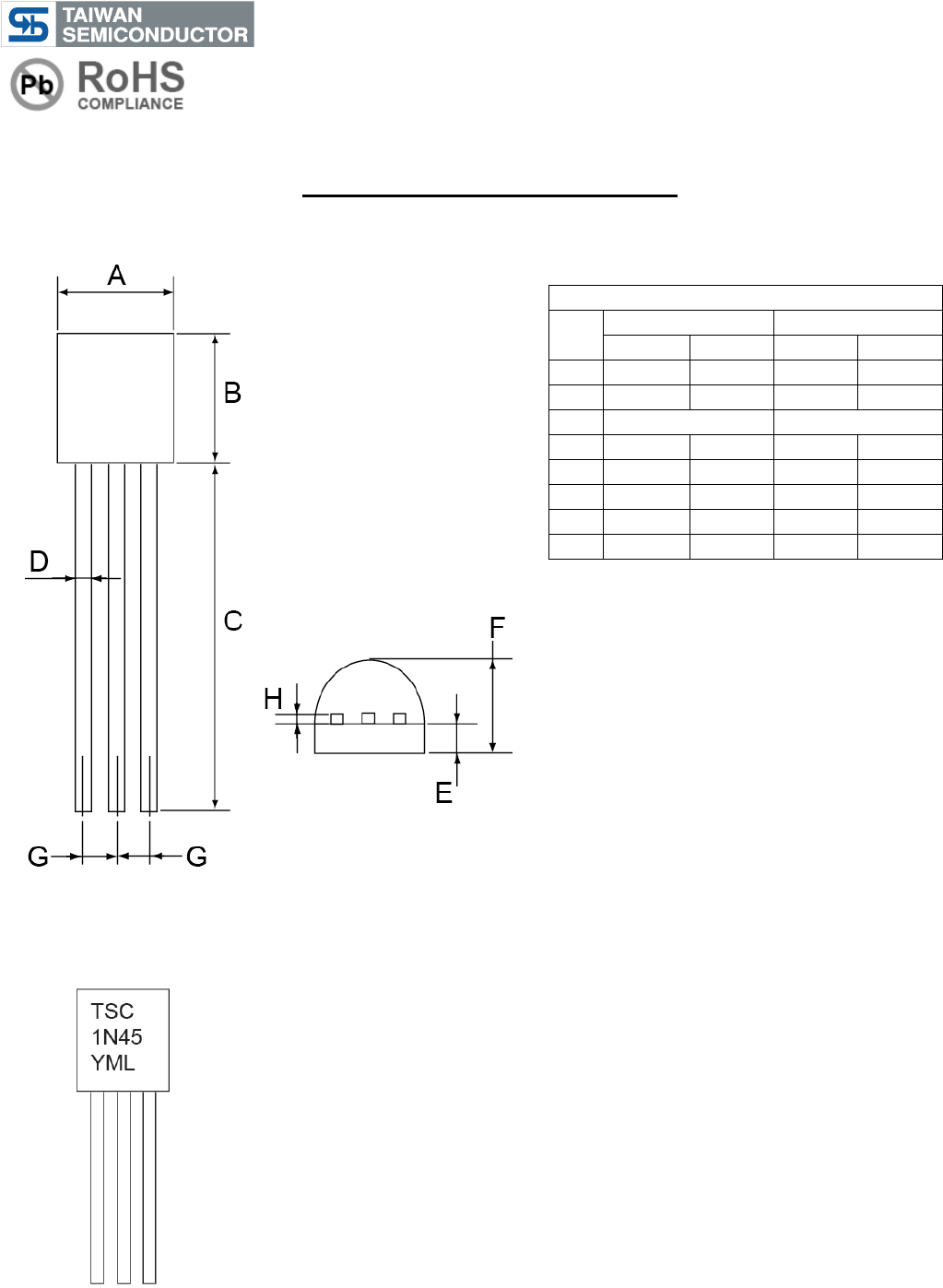

TO-92 Mechanical Drawing
Marking Diagram
Y
= Year Code
M
= Month Code
(A=Jan, B=Feb, C=Mar, D=Apl, E=May, F=Jun, G=Jul, H=Aug, I=Sep,
J=Oct, K=Nov, L=Dec)
L
= Lot Code
TO-92 DIMENSION
DIM
MILLIMETERS INCHES
MIN MAX MIN MAX
A 4.30 4.70 0.169 0.185
B 4.30 4.70 0.169 0.185
C 13.53 (typ) 0.532 (typ)
D 0.39 0.49 0.015 0.019
E 1.18 1.28 0.046 0.050
F 3.30 3.70 0.130 0.146
G 1.27 1.31 0.050 0.051
H 0.33 0.43 0.013 0.017
