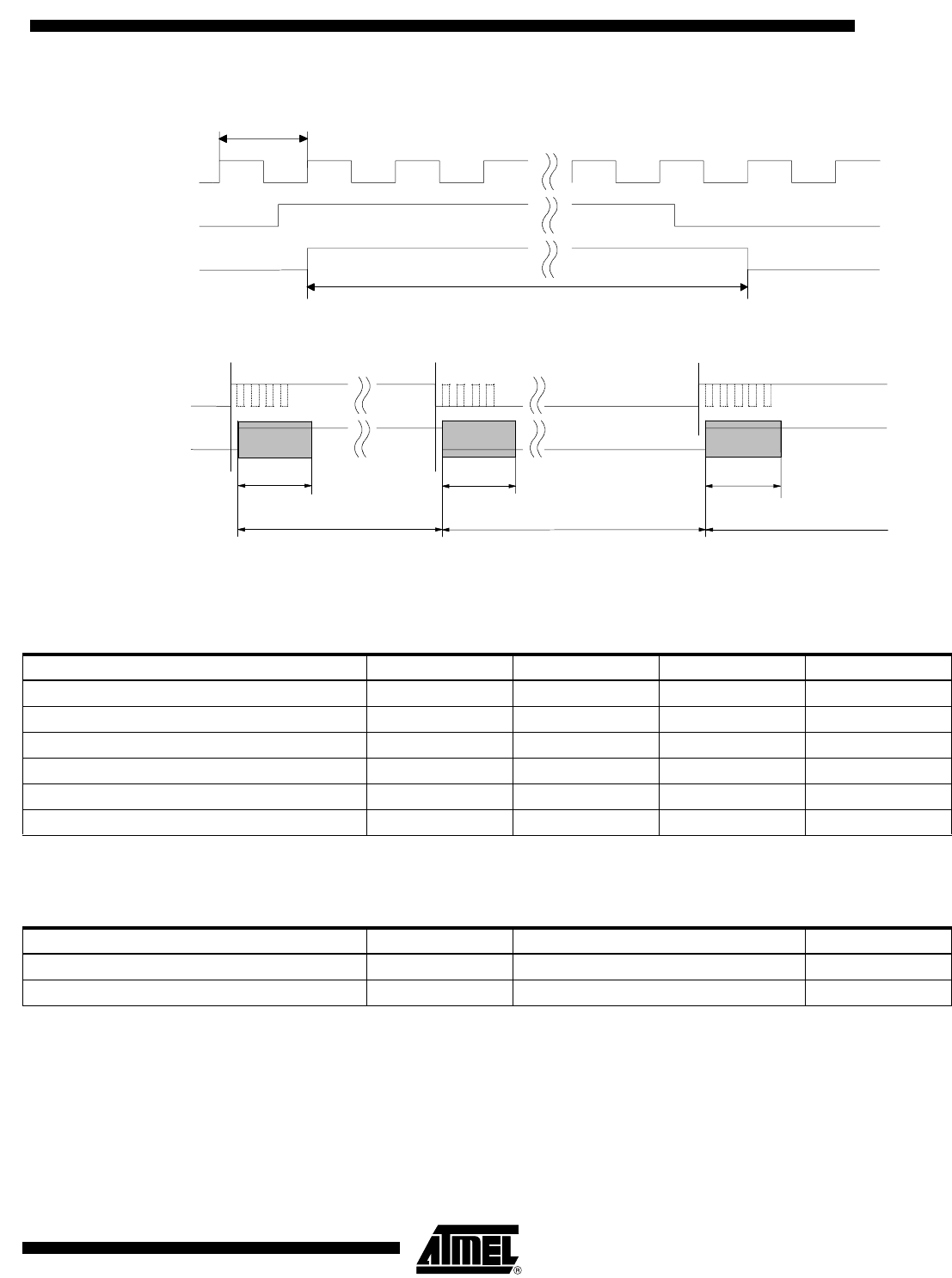

Figure 12. Synchronization of the Demodulator Output
Figure 13. Debouncing of the Demodulator Output
Data_out (DATA)
T
XClk
Dem_out
t
ee_sig
DATA
Dem_out
t
ee
t
ee
t
DATA_min
t
ee
t
DATA_min
t
DATA_min
Absolute Maximum Ratings
Parameters Symbol Min. Max. Unit
Supply voltage V
S
6V
Power dissipation P
tot
450 mW
Juntion temperature T
j
150 °C
Storage temperature T
stg
-55 +125 °C
Ambient temperature T
amb
-40 +105 °C
Maximum input level, input matched to 50 Ω P
in_max
10 dBm
Thermal Resistance
Parameters Symbol Value Unit
Junction ambient SO20 package R
thJA
100 K/W
Junction ambient SSO20 package R
thJA
100 K/W
