81
T48C862-R8
4590B–4BMCU–02/03
Combination Mode 5:
Biphase Modulation 2
SSI mode 1: 8-bit shift register internal data output (SO) to the Timer 2
modulator stage
Timer 2 mode 3: 8-bit compare counter and 4-bit prescaler
Timer 2 output mode 4: The modulator 2 of Timer 2 modulates the SSI data output
to Biphase code
The 4-bit stage can be used as prescaler for the SSI to generate the stop signal for mod-
ulator 2. The SSI has a special mode to supply the prescaler via the shift clock.
The control output signal (OMSK) of the SSI is used as stop signal for the modulator.
Figure 72 shows an example for a 13-bit Biphase telegram.

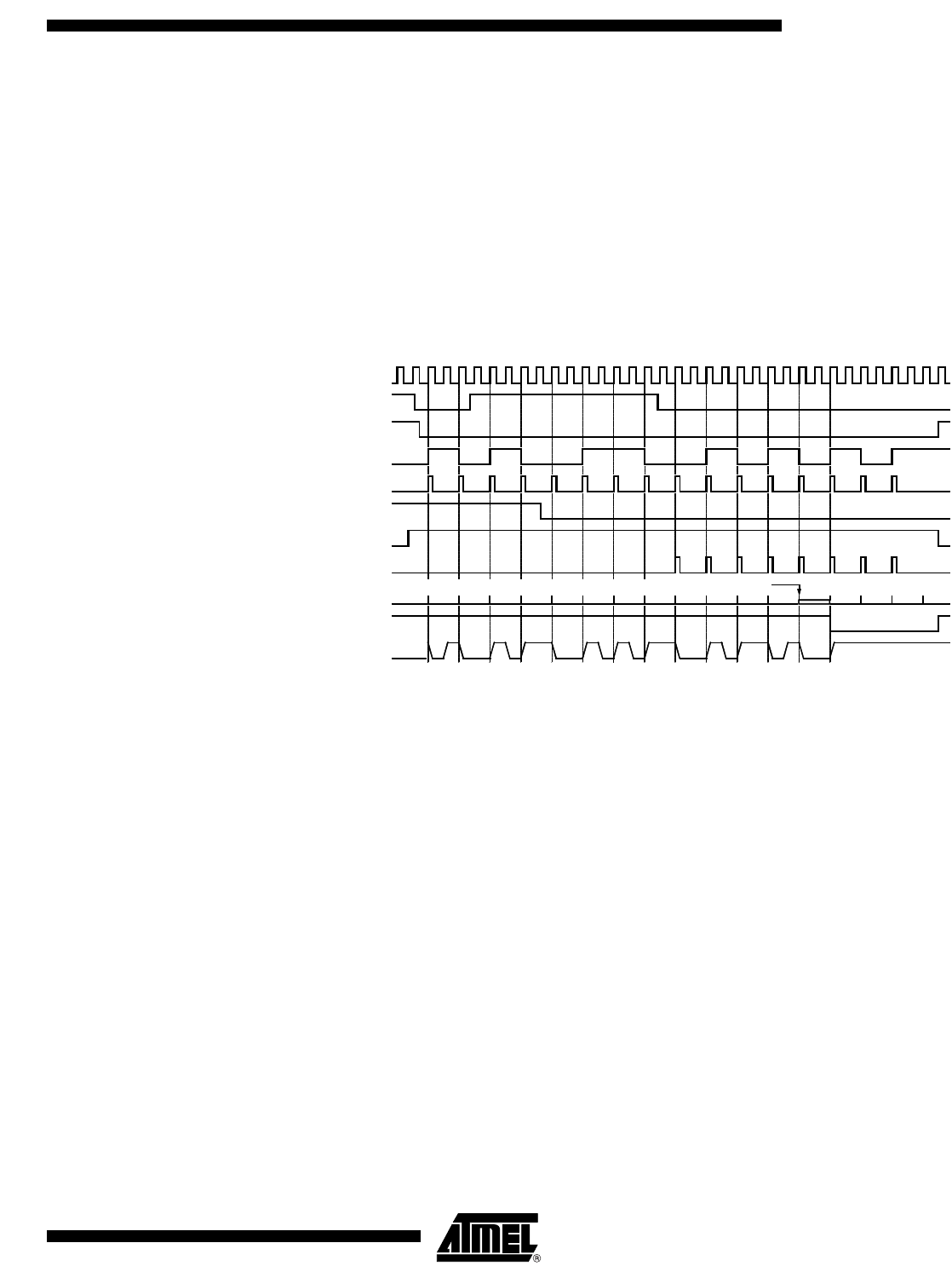

Figure 77. Biphase Modulation 2
00000000123450
Counter 2/1 = Compare Register 2/1 (= 5)
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
SCLI
Buffer full
SIR
SO
SC
MSM
Timer 2
Mode 3
SCL
Counter
2/1
OMSK
T2O
012
