80
T48C862-R8
4590B–4BMCU–02/03

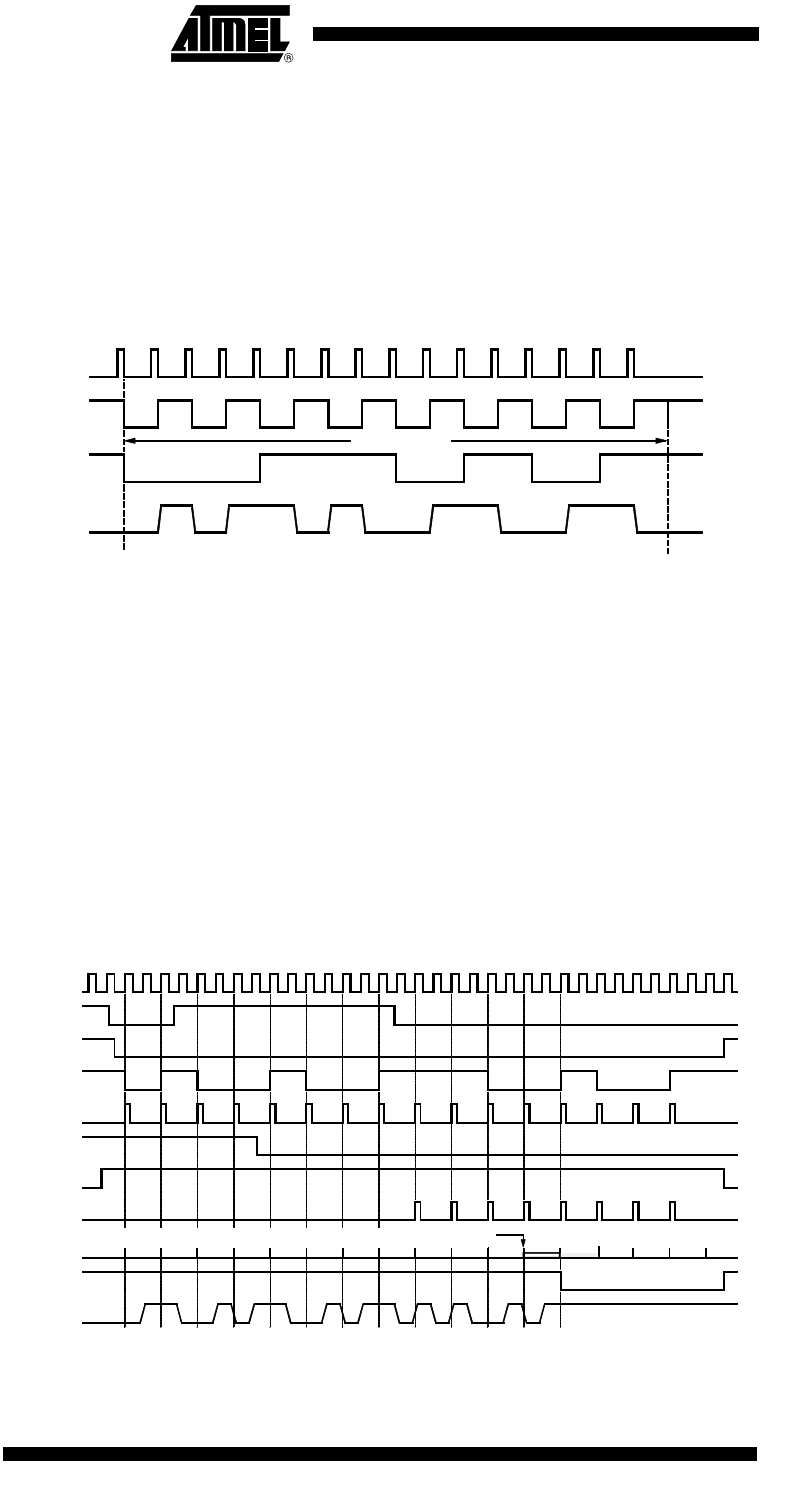

Combination Mode 3:
Manchester Modulation 1
SSI mode 1: 8-bit shift register internal data output (SO) to the Timer 2
modulator stage
Timer 2 mode 1, 2, 3 or 4: 8-bit compare counter with 4-bit programmable prescaler
Timer 2 output mode 5: The modulator 2 of Timer 2 modulates the SSI internal
data output to Manchester code
Figure 75. Manchester Modulation 1
Combination Mode 4:
Manchester Modulation 2
SSI mode 1: 8-bit shift register internal data output (SO) to the Timer 2
modulator stage
Timer 2 mode 3: 8-bit compare counter and 4-bit prescaler
Timer 2 output mode 5: The modulator 2 of Timer 2 modulates the SSI data output
to Manchester code
The 4-bit stage can be used as prescaler for the SSI to generate the stop signal for mod-
ulator 2. The SSI has a special mode to supply the prescaler with the shift clock.
The control output signal (OMSK) of the SSI is used as stop signal for the modulator.
Figure 71 shows an example for a 12-bit Manchester telegram.
Figure 76. Manchester Modulation 2
TOG2
SC
SO
T2O
000
0011 0101
11 1 1
8-bit SR-data
Bit 7 Bit 0
0
Bit 7 Bit 0
Data: 00110101
0000000012340120
Counter 2/1 = Compare Register 2/1 (= 4)
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
SCLI
Buffer full
SIR
SO
SC
MSM
Timer 2
Mode 3
SCL
Counter
2/1
OMSK
T2O
3
