Figure 58. Manchester Demodulation
Timer 3 – Mode 11:
Biphase Demodulation
In the Biphase demodulation mode, the timer operates like in Manchester demodulation
mode. The difference is that the bits are decoded via a toggle flip-flop. This flip-flop sam-
ples the edge in the middle of the bitframe and the compare register 1 match event
shifts the toggle flip-flop output into shift register (see also combined mode 9).

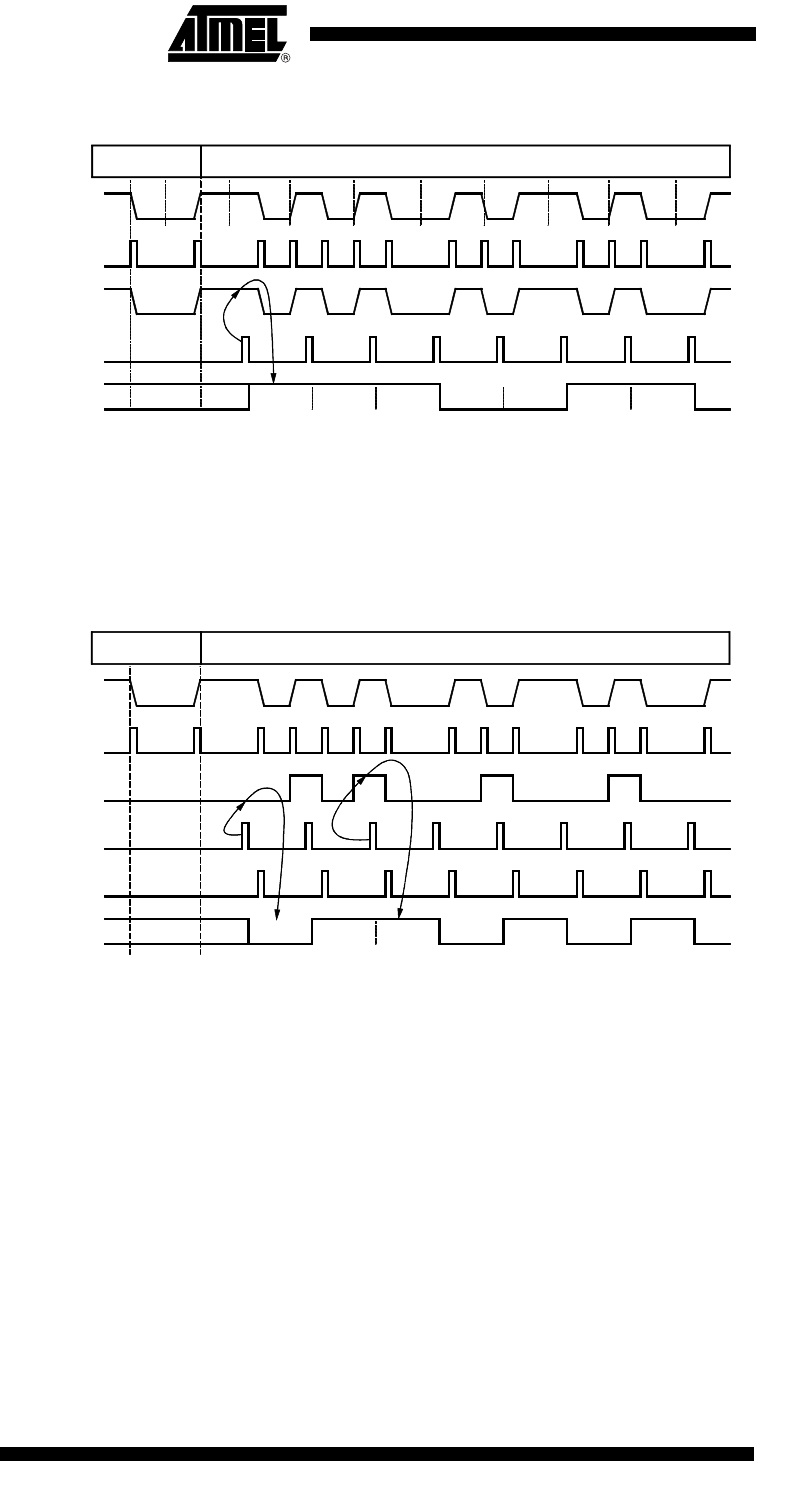

Figure 59. Biphase Demodulation
1011100 110
11
BIT 0 BIT 1 BIT 2 BIT 3 BIT 4
BIT 5
BIT 6
Synchronize Manchester demodulation mode
Timer 3
mode
T3EX
SI
SR-DATA
T3I
CM31=SCI
100110
011 1 1
01
BIT 0 BIT 1 BIT 2 BIT 3 BIT 4 BIT 5 BIT 6
Synchronize Biphase demodulation mode
Timer 3
mode
T3EX
Q1=SI
CM31=SCI
SR-DATA
0000
T3I
Reset
Counter 3
101010
