Timer 2 Output Mode 4 Biphase Modulator: Timer 2 Modulates the SSI Internal Data Output (SO) to Biphase
Code.

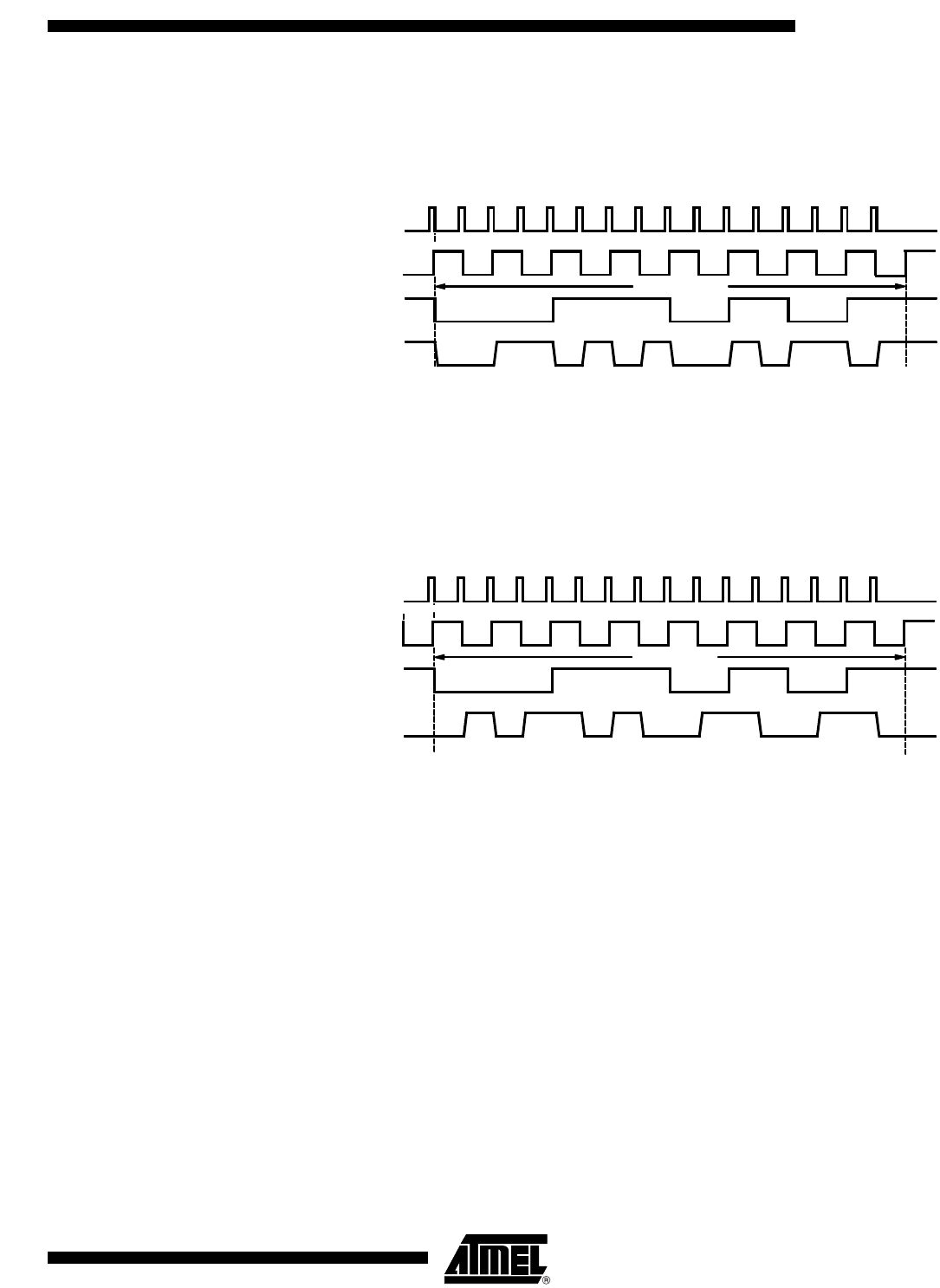

Figure 45. Biphase Modulation
Timer 2 Output Mode 5 Manchester Modulator: Timer 2 Modulates the SSI internal data output (SO) to
Manchester code
Figure 46. Manchester Modulation
Timer 2 Output Mode 7 In this mode the timer overflow defines the period and the compare register defines the
duty cycle. During one period only the first compare match occurrence is used to toggle
the timer output flip-flop, until the overflow all further compare match are ignored. This
avoids the situation that changing the compare register causes the occurrence of sev-
eral compare match during one period. The resolution at the pulse-width modulation
Timer 2 mode 1 is 12-bit and all other Timer 2 modes are 8-bit.
TOG2
SC
SO
T2O
0000
00110101
11 1 1
8-bit SR-Data
Bit 7 Bit 0
Data: 00110101
TOG2
SC
SO
T2O
000
00110101
11 1 1
8-bit SR-Data
Bit 7 Bit 0
0
Bit 7 Bit 0
Data: 00110101
