User Manual
GEYER ELECTRONIC Lochhamer Schlag 5 82166 Gräfelfing/München
Tel. 089/546868-0 Fax 089/546868-91 quartz@geyer-electronic.de
07.09.2006

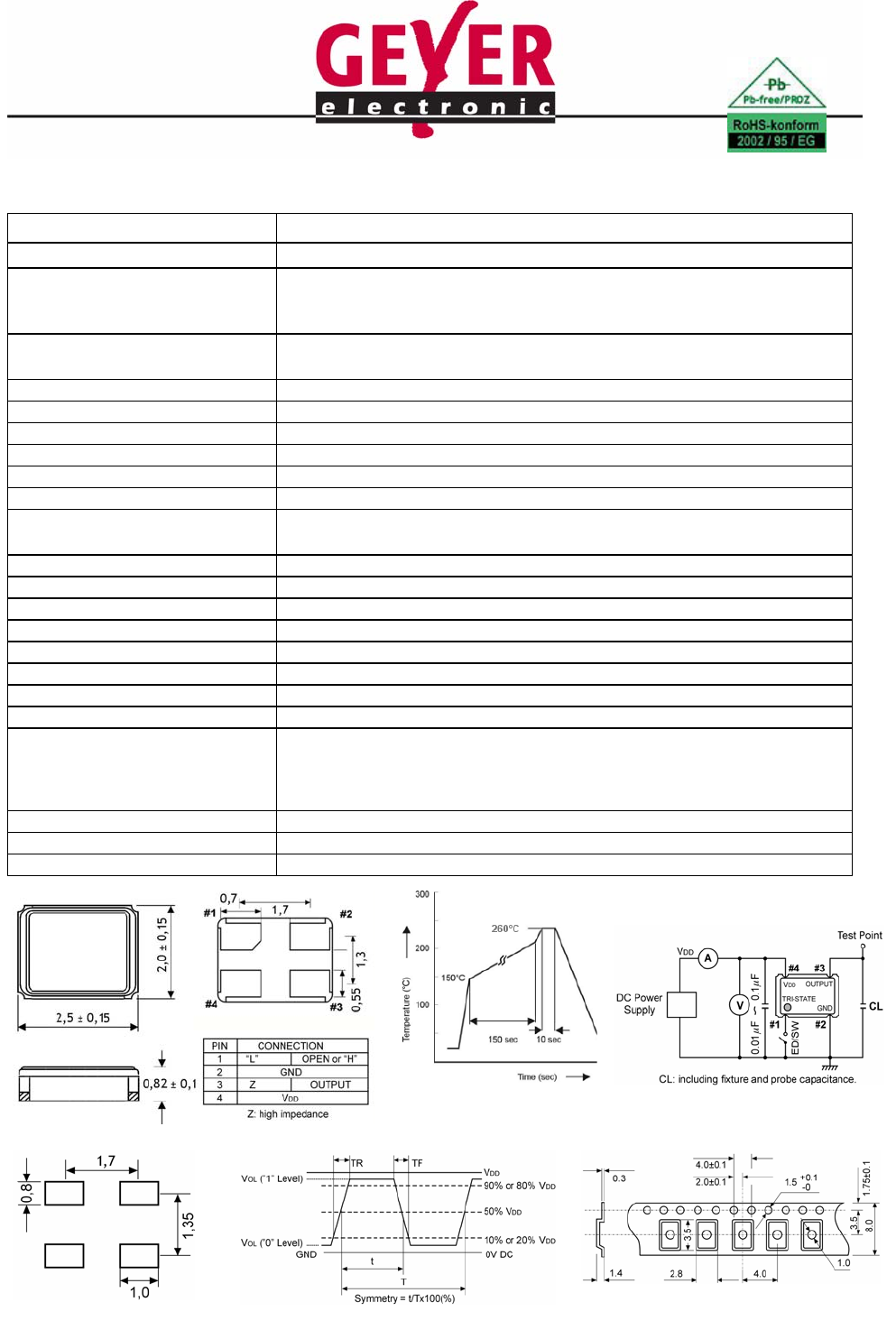

CLOCK OSCILLATORS SMD-version 2,5V 2,8V 3,0V 3,3V
model
KXO-V95
frequency range 1,0 ~ 70,0 MHz
frequency stability
at -20° ~ +70°C
at -40° ~ +85°C
± 50 ppm
± 100 ppm
operating temperature standard -20° ~ +70°C
available -40° ~ +85°C (=KXO-V95T)
storage temperature -40° ~ +85°C
symmetry 40% ~ 60% at 50% V
DD
level
rise & fall time max. 10 ns (10% Vdd ~ 90% V
DD
level)
"O" level max. VOL: 10% Vdd
"1" level min. VOH: 90% Vdd
input voltage
VDD
+2,5 ~ +3,3V ±5%
tri-state control voltage (Pin#1)
VIH: V
DD
x 0,7 min.
VIL: V
DD
x 0,3 max.
supply voltage -0,5V ~ +7,0V
input current max. 15 mA
output load max. 15pF (CMOS)
start up time max. 10 ms
disable delay time max. 150 ns
enable delay time max. 10 ms
stand by current max. 50 µA (Pin #1=VIL)
aging for first year max. ±5 ppm at +25°
jitter deterministic jitter 5pS max.
random jitter
7ps max.
norm 1-sigma
7ps max.
peak to peak 40ps max.
lead-free since production start
contents of reel 1000 pcs.
order no. 12.95500 ~ 12.95999
output waveform
test circuit
reel diameter 245 mm
suggested soldering pad
ld i diti
