ATmega162/V

2513E–AVR–09/03

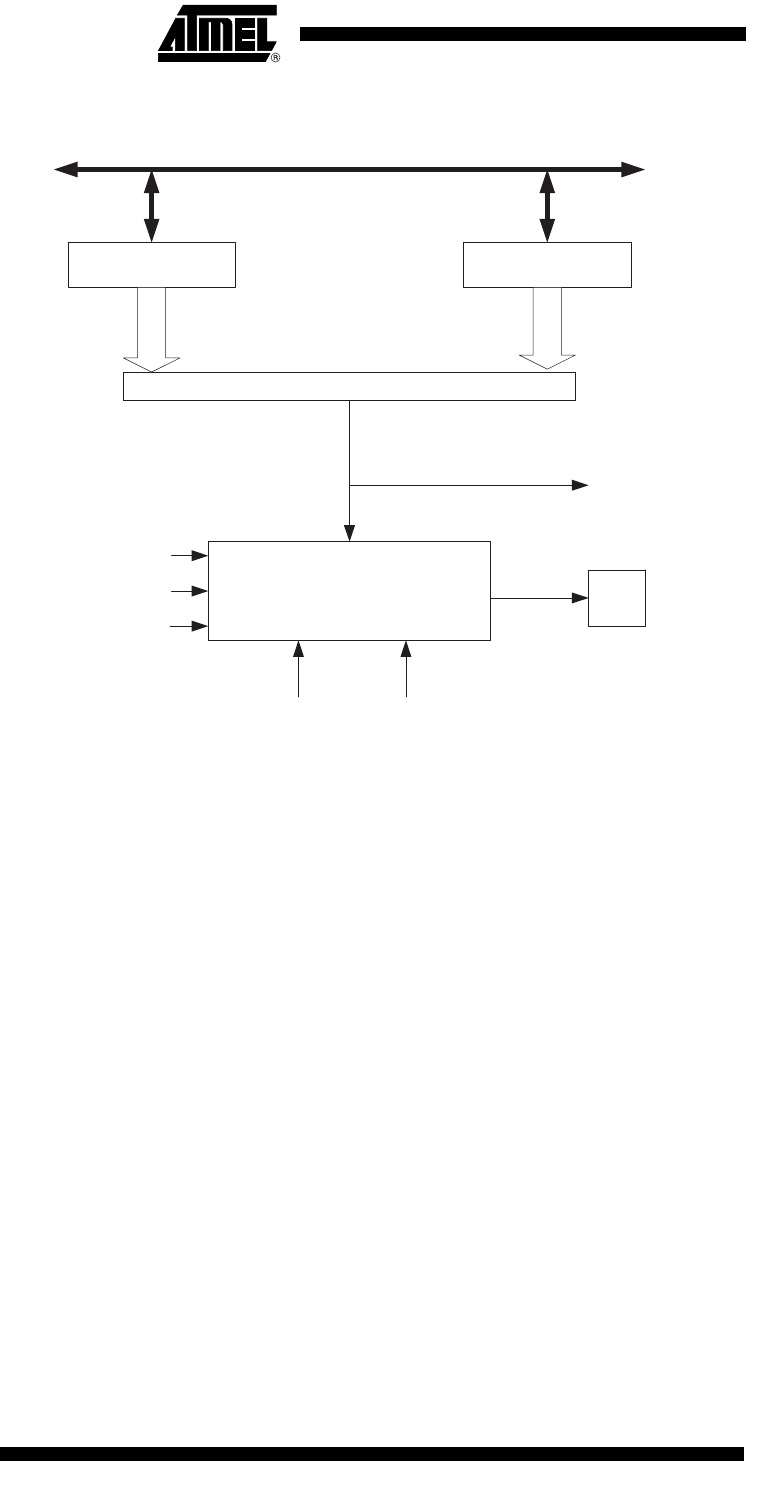

Figure 61. Output Compare Unit, Block Diagram

The OCR2 Register is double buffered when using any of the Pulse Width Modulation

(PWM) modes. For the normal and Clear Timer on Compare (CTC) modes of operation,

the double buffering is disabled. The double buffering synchronizes the update of the

OCR2 Compare Register to either top or bottom of the counting sequence. The synchro-

nization prevents the occurrence of odd-length, non-symmetrical PWM pulses, thereby

making the output glitch-free.

The OCR2 Register access may seem complex, but this is not case. When the double

buffering is enabled, the CPU has access to the OCR2 Buffer Register, and if double

buffering is disabled the CPU will access the OCR2 directly.

Force Output Compare In non-PWM waveform generation modes, the match output of the comparator can be

forced by writing a one to the Force Output Compare (FOC2) bit. Forcing Compare

Match will not set the OCF2 Flag or reload/clear the timer, but the OC2 pin will be

updated as if a real Compare Match had occurred (the COM21:0 bits settings define

whether the OC2 pin is set, cleared or toggled).

Compare Match Blocking by

TCNT2 Write

All CPU write operations to the TCNT2 Register will block any Compare Match that

occurs in the next timer clock cycle, even when the timer is stopped. This feature allows

OCR2 to be initialized to the same value as TCNT2 without triggering an interrupt when

the Timer/Counter clock is enabled.

Using the Output Compare

Unit

Since writing TCNT2 in any mode of operation will block all compare matches for one

timer clock cycle, there are risks involved when changing TCNT2 when using the output

compare channel, independently of whether the Timer/Counter is running or not. If the

value written to TCNT2 equals the OCR2 value, the Compare Match will be missed,

OCFn (Int.Req.)

= (8-bit Comparator )

OCRn

OCxy

DATA BUS

TCNTn

WGMn1:0

Waveform Generator

top

FOCn

COMn1:0

bottom
