Phase Correct PWM Mode The phase correct Pulse Width Modulation or phase correct PWM mode (WGMn3:0 = 1,

2, 3, 10, or 11) provides a high resolution phase correct PWM waveform generation

option. The phase correct PWM mode is, like the phase and frequency correct PWM

mode, based on a dual-slope operation. The counter counts repeatedly from BOTTOM

(0x0000) to TOP and then from TOP to BOTTOM. In non-inverting Compare Output

mode, the Output Compare (OCnx) is cleared on the Compare Match between TCNTn

and OCRnx while up-counting, and set on the Compare Match while down-counting. In

inverting Output Compare mode, the operation is inverted. The dual-slope operation has

lower maximum operation frequency than single slope operation. However, due to the

symmetric feature of the dual-slope PWM modes, these modes are preferred for motor

control applications.

The PWM resolution for the phase correct PWM mode can be fixed to 8-, 9-, or 10-bit, or

defined by either ICRn or OCRnA. The minimum resolution allowed is 2-bit (ICRn or

OCRnA set to 0x0003), and the maximum resolution is 16-bit (ICRn or OCRnA set to

MAX). The PWM resolution in bits can be calculated by using the following equation:

In phase correct PWM mode the counter is incremented until the counter value matches

either one of the fixed values 0x00FF, 0x01FF, or 0x03FF (WGMn3:0 = 1, 2, or 3), the

value in ICRn (WGMn3:0 = 10), or the value in OCRnA (WGMn3:0 = 11). The counter

has then reached the TOP and changes the count direction. The TCNTn value will be

equal to TOP for one timer clock cycle. The timing diagram for the phase correct PWM

mode is shown on Figure 53. The figure shows phase correct PWM mode when OCRnA

or ICRn is used to define TOP. The TCNTn value is in the timing diagram shown as a

histogram for illustrating the dual-slope operation. The diagram includes non-inverted

and inverted PWM outputs. The small horizontal line marks on the TCNTn slopes repre-

sent compare matches between OCRnx and TCNTn. The OCnx Interrupt Flag will be

set when a Compare Match occurs.

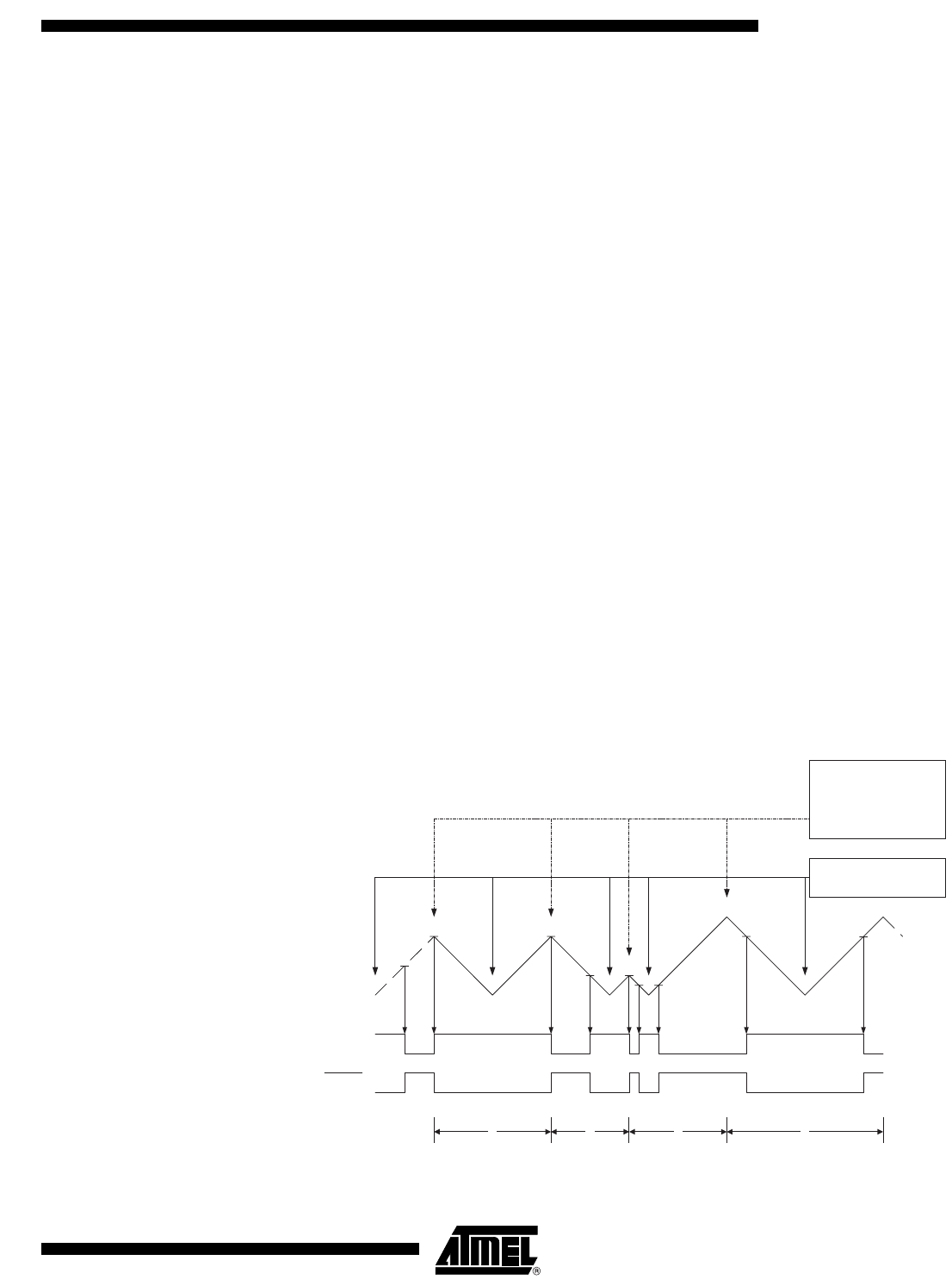

Figure 53. Phase Correct PWM Mode, Timing Diagram

The Timer/Counter Overflow Flag (TOVn) is set each time the counter reaches BOT-

TOM. When either OCRnA or ICRn is used for defining the TOP value, the OCnA or

PCPWM

TOP 1+()log

2()log

-----------------------------------=

OCRnx/TOP Update and

OCnA Interrupt Flag Set

or ICFn Interrupt Flag Set

(Interrupt on TOP)

1 2 3 4

TOVn Interrupt Flag Set

(Interrupt on Bottom)

TCNTn

Period

OCnx

(COMnx1:0 = 2)

(COMnx1:0 = 3)
