(ICFn) must be cleared by software (writing a logical one to the I/O bit location). For

measuring frequency only, the clearing of the ICFn Flag is not required (if an interrupt

handler is used).

Output Compare Units The 16-bit comparator continuously compares TCNTn with the Output Compare Regis-

ter (OCRnx). If TCNT equals OCRnx the comparator signals a match. A match will set

the Output Compare Flag (OCFnx) at the next timer clock cycle

. If enabled (OCIEnx =

1), the Output Compare Flag generates an output compare interrupt. The OCFnx Flag is

automatically cleared when the interrupt is executed. Alternatively the OCFnx Flag can

be cleared by software by writing a logical one to its I/O bit location. The Waveform Gen-

erator uses the match signal to generate an output according to operating mode set by

the Waveform Generation mode (WGMn3:0) bits and Compare Output mode

(COMnx1:0) bits. The TOP and BOTTOM signals are used by the Waveform Generator

for handling the special cases of the extreme values in some modes of operation (See

“Modes of Operation” on page 117.)

A special feature of output compare unit A allows it to define the Timer/Counter TOP

value (i.e., counter resolution). In addition to the counter resolution, the TOP value

defines the period time for waveforms generated by the Waveform Generator.

Figure 49 shows a block diagram of the output compare unit. The small “n” in the regis-

ter and bit names indicates the device number (n = n

for Timer/Counter n), and the “x”

indicates output compare unit (A/B). The elements of the block diagram that are not

directly a part of the output compare unit are gray shaded.

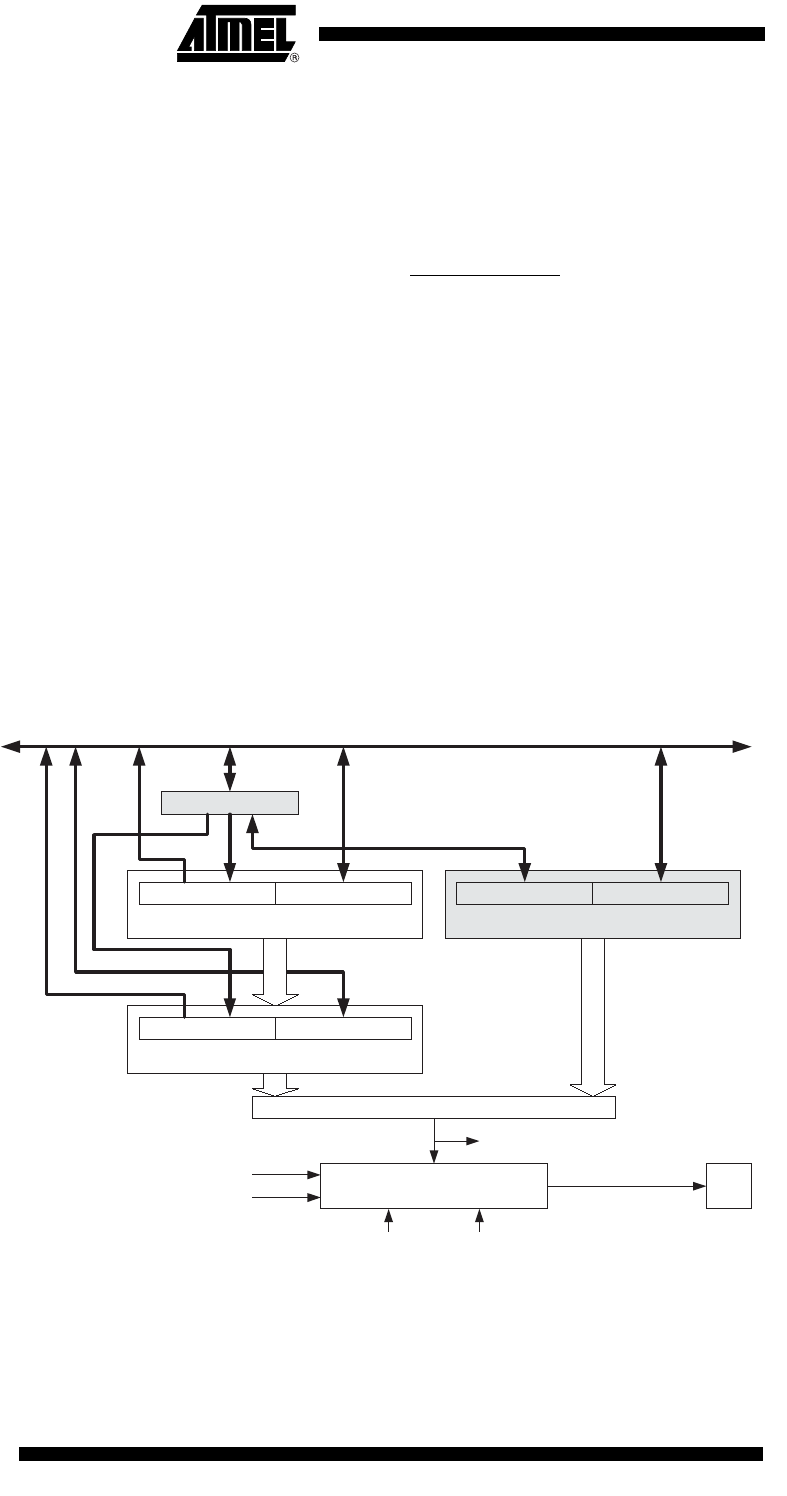

Figure 49. Output Compare Unit, Block Diagram

The OCRnx Register is double buffered when using any of the twelve Pulse Width Mod-

ulation (PWM) modes. For the normal and Clear Timer on Compare (CTC) modes of

operation, the double buffering is disabled. The double buffering synchronizes the

update of the OCRnx Compare Register to either TOP or BOTTOM of the counting

OCFnx (Int.Req.)

(16-bit Comparator )

OCRnx Buffer (16-bit Register)

OCRnxH Buf. (8-bit)

OCnx

TEMP (8-bit)

DATA BUS

(8-bit)

OCRnxL Buf. (8-bit)

TCNTn (16-bit Counter)

TCNTnH (8-bit) TCNTnL (8-bit)

COMnx1:0WGMn3:0

OCRnx (16-bit Register)

OCRnxH (8-bit) OCRnxL (8-bit)

Waveform Generator

TOP

BOTTOM
