ATmega603/103
79
Port B Schematics
Note that all port pins are synchronized. The synchronization latches are however, not shown in the figures.

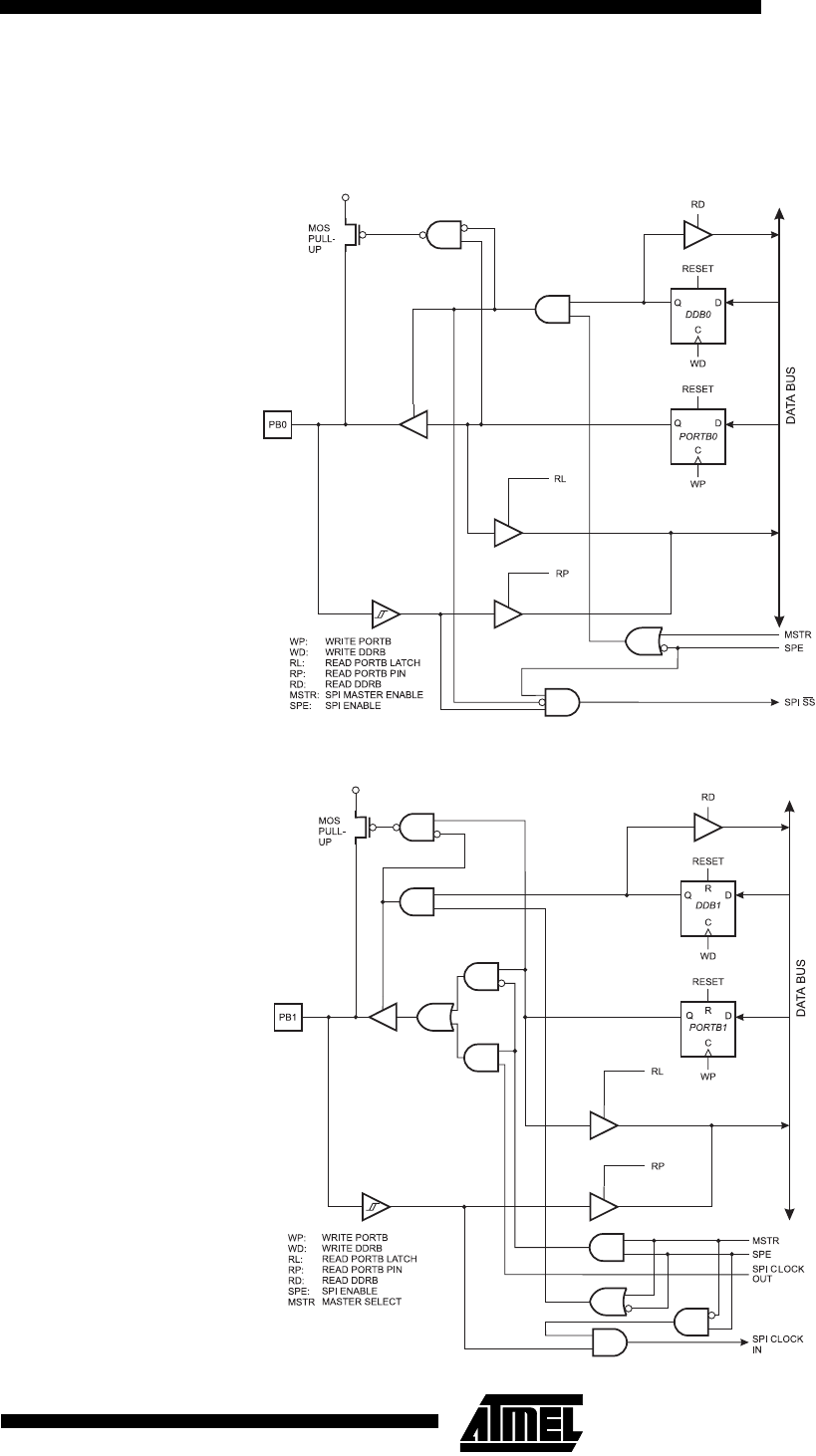

Figure 54. Port B Schematic Diagram (Pin PB0)
Figure 55. Port B Schematic Diagram (Pin PB1)
