97
AT90S/LS4433
1042G–AVR–09/02
Serial Programming
Characteristics

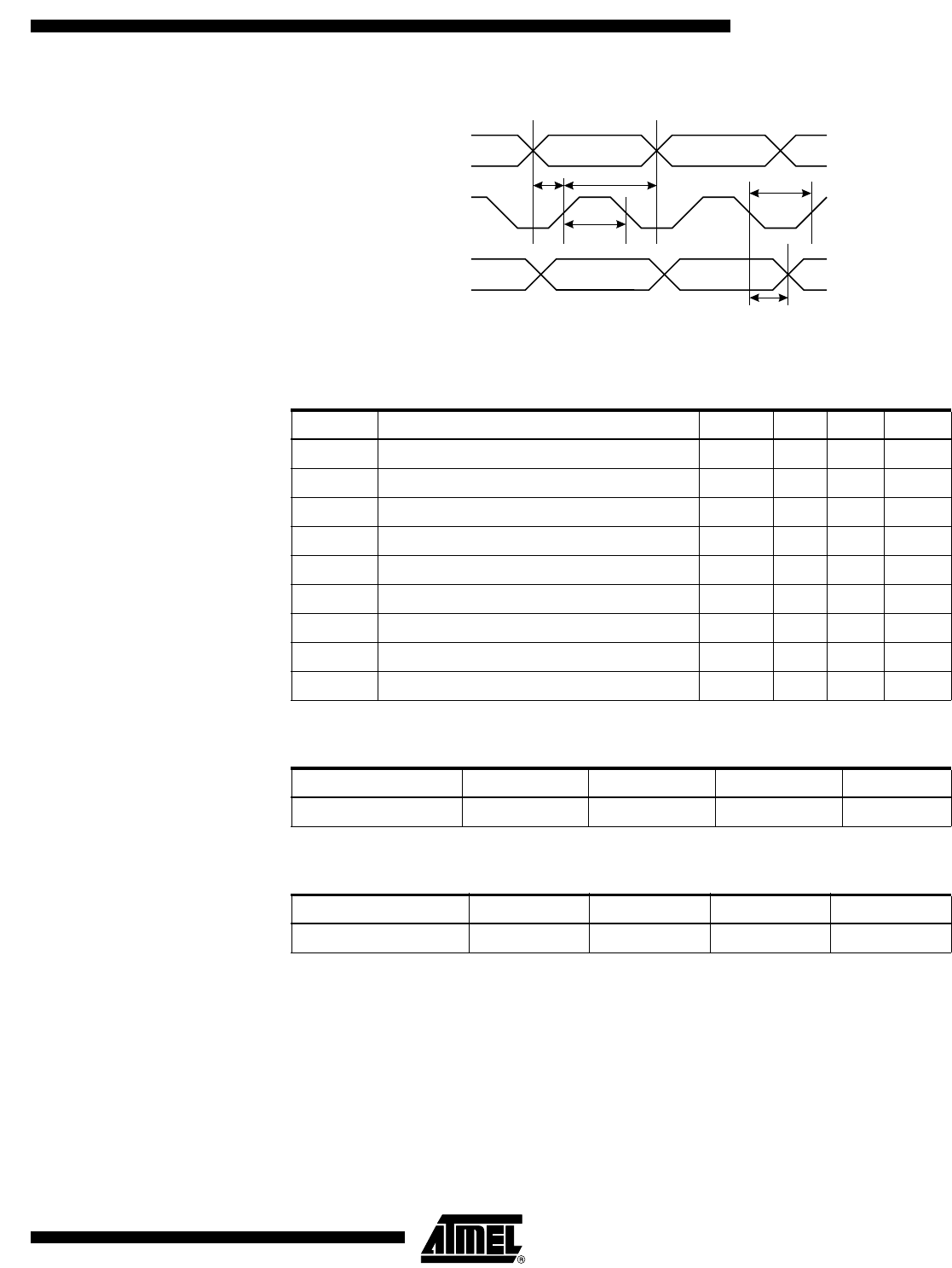

Figure 68. Serial Programming Timing
Table 36. Serial Programming Characteristics, T
A
=-40°Cto85°C, V
CC
=2.7-6.0V
(unless otherwise noted)
Symbol Parameter Min Typ Max Units
1/t
CLCL
Oscillator Frequency (V
CC
= 2.7 - 6.0V) 0 4 MHz
t
CLCL
Oscillator Period (V
CC
=2.7-6.0V) 250 ns
1/t
CLCL
Oscillator Frequency (V
CC
= 4.0 - 6.0V) 0 8 MHz
t
CLCL
Oscillator Period (V
CC
=4.0-6.0V) 125 ns
t
SHSL
SCK Pulse Width High 2 t
CLCL
ns
t
SLSH
SCK Pulse Width Low 2 t
CLCL
ns
t
OVSH
MOSI Setup to SCK High t
CLCL
ns
t
SHOX
MOSI Hold after SCK High 2 t
CLCL
ns
t
SLIV
SCK Low to MISO Valid 10 16 32 ns
Table 37. Minimum Wait Delay after the Chip Erase Instruction
Symbol 3.2V 3.6V 4.0V 5.0V
t
WD_ERASE
18 ms 14 ms 12 ms 8 ms
Table 38. Minimum Wait Delay after Writing a Flash or EEPROM Location
Symbol 3.2V 3.6V 4.0V 5.0V
t
WD_PROG
9ms 7ms 6ms 4ms
MOSI
MISO
SCK
t
OVSH
t
SHSL
t
SLSH
t
SHOX
t
SLIV
