23. Read Operations

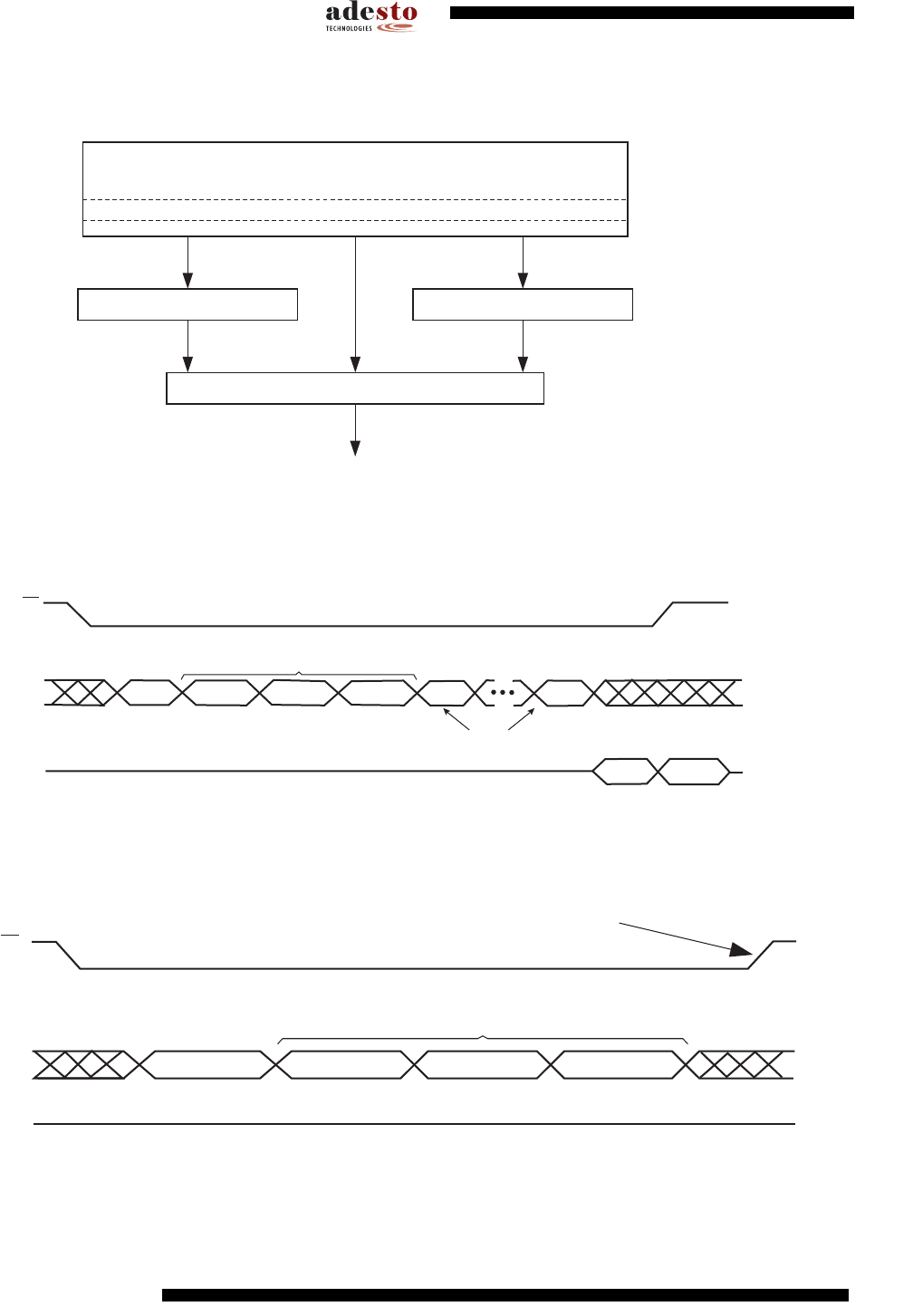

The following block diagram and waveforms illustrate the various read sequences available.
23.1 Main Memory Page Read
23.2 Main Memory Page to Buffer Transfer (Data from Flash Page Read into Buffer)
FLASH MEMORY ARRAY
PAGE (256-/264-BYTES)
BUFFER 2 (256-/264-BYTES)BUFFER 1 (256-/264-BYTES)
I/O INTERFACE
MAIN MEMORY
PAGE TO
BUFFER 1
MAIN MEMORY
PAGE TO
BUFFER 2
MAIN MEMORY
PAGE READ
BUFFER 1
READ
BUFFER 2
READ
SO
SI (INPUT)
CMD
PA11-7
PA6-0, BA8
X
CS
n n+1
SO (OUTPUT)
BA7-0
4 Dummy Bytes for Serial
X
ADDRESS FOR BINARY PAGE SIZE
A19-A16
A15-A8
A7-A0
Starts reading page data into buffer
SI (INPUT)
CMD
PA11-7
PA6-0, X
CS
SO (OUTPUT)
XXXX XXXX
BINARY PAGE SIZE
A19-A8 + 8 DON'T CARE BITS
