Timing Diagrams
TL/H/10559–7

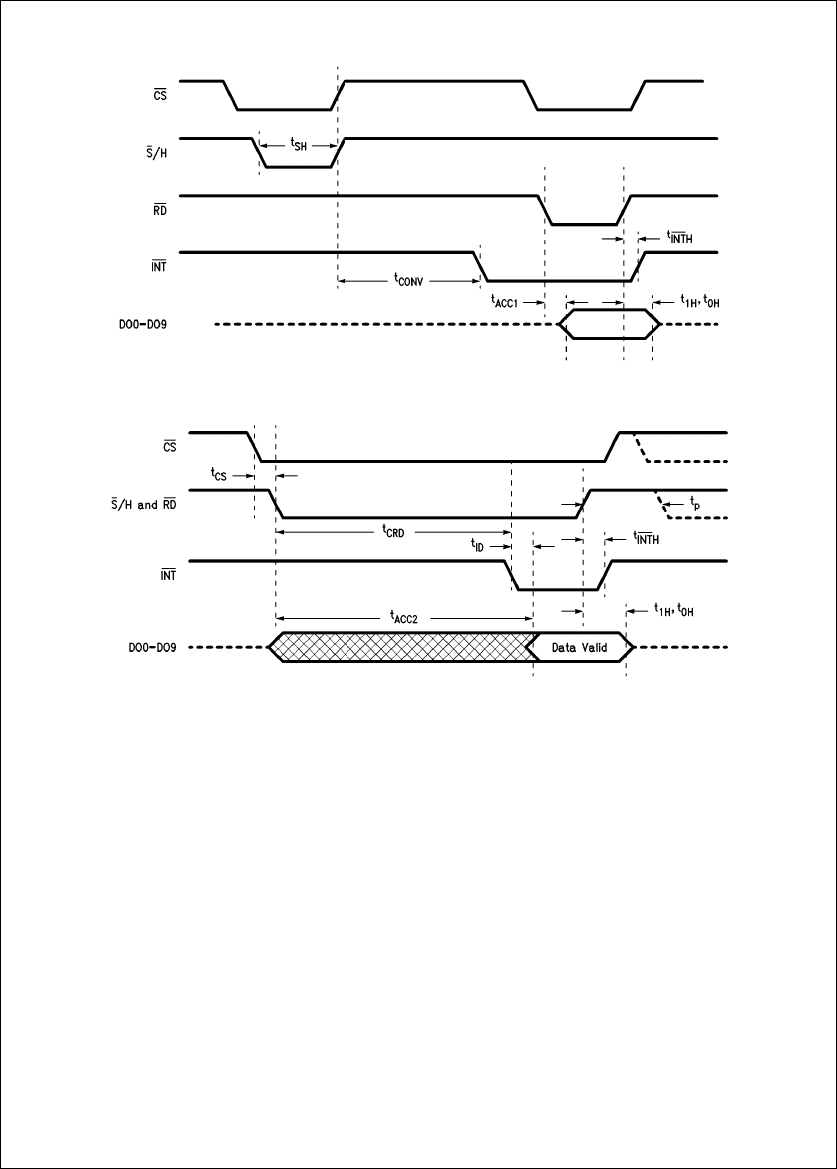

FIGURE 1. Mode 1. The conversion time (t
CONV
) is determined by the internal timer.
TL/H/10559–8
FIGURE 2. Mode 2 (RD Mode). The conversion time (t
CRD
) includes
the sampling time, and is determined by the internal timer.
