ESP-LXME Controller

Mount Controller

A

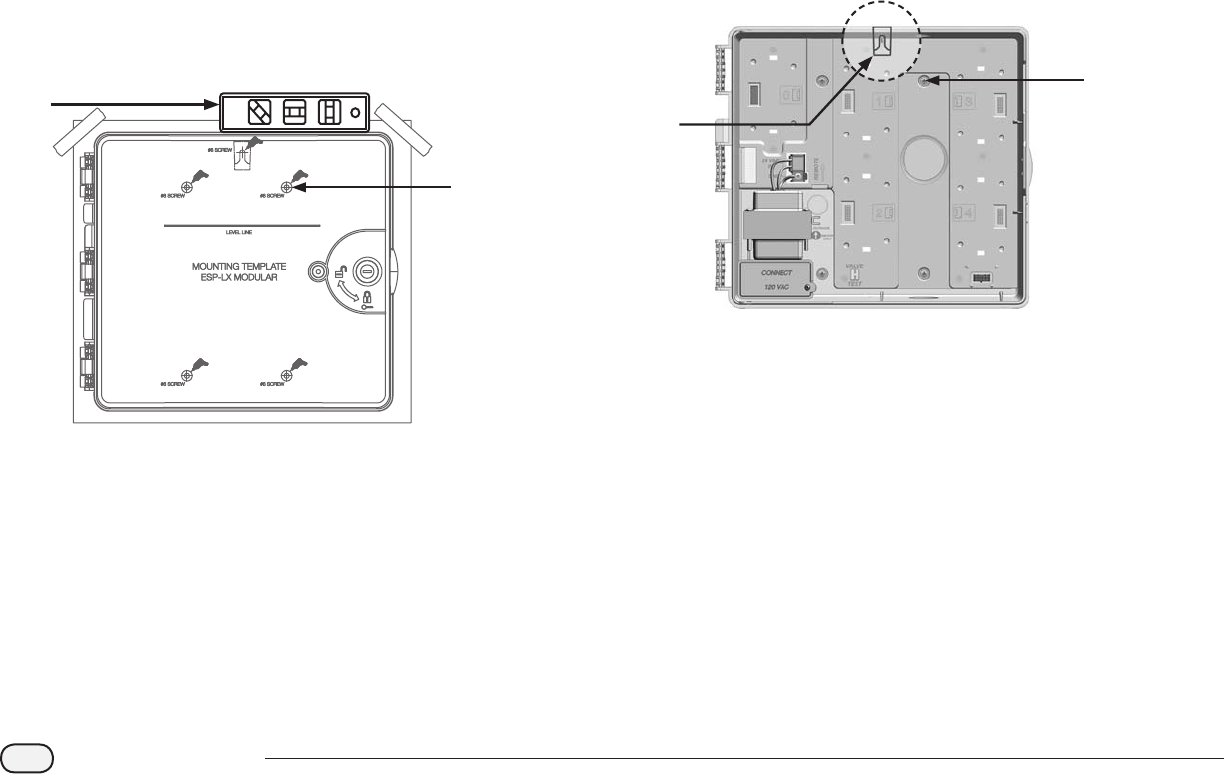

Using a level, tape the mounting template to the mounting

surface at approximately eye level. Make sure that at least one of

the ve mounting hole marks is aligned on a wall stud or other

solid surface.

B

Use a tapping tool (or nail) and hammer to tap pilot holes through

the ve mounting hole marks and into the mounting surface.

Then remove the template and drill holes in the mounting surface,

installing wall anchors if necessary.



NOTE: If the controller needs to be mounted on an uneven

surface like stucco, place (or install) a section of exterior plywood

between the controller and the wall.

C

Drive the rst screw into the topmost-center hole. Then hang the

controller on the screw by the key-hole slot on the back of the

cabinet.

D

Line up the controller cabinet mounting holes with the remaining

pilot holes and drive the four remaining screws through the

cabinet back plane into the mounting surface.
