User's Manual

WinLink User and Installation Guide Version 1.795 3-31

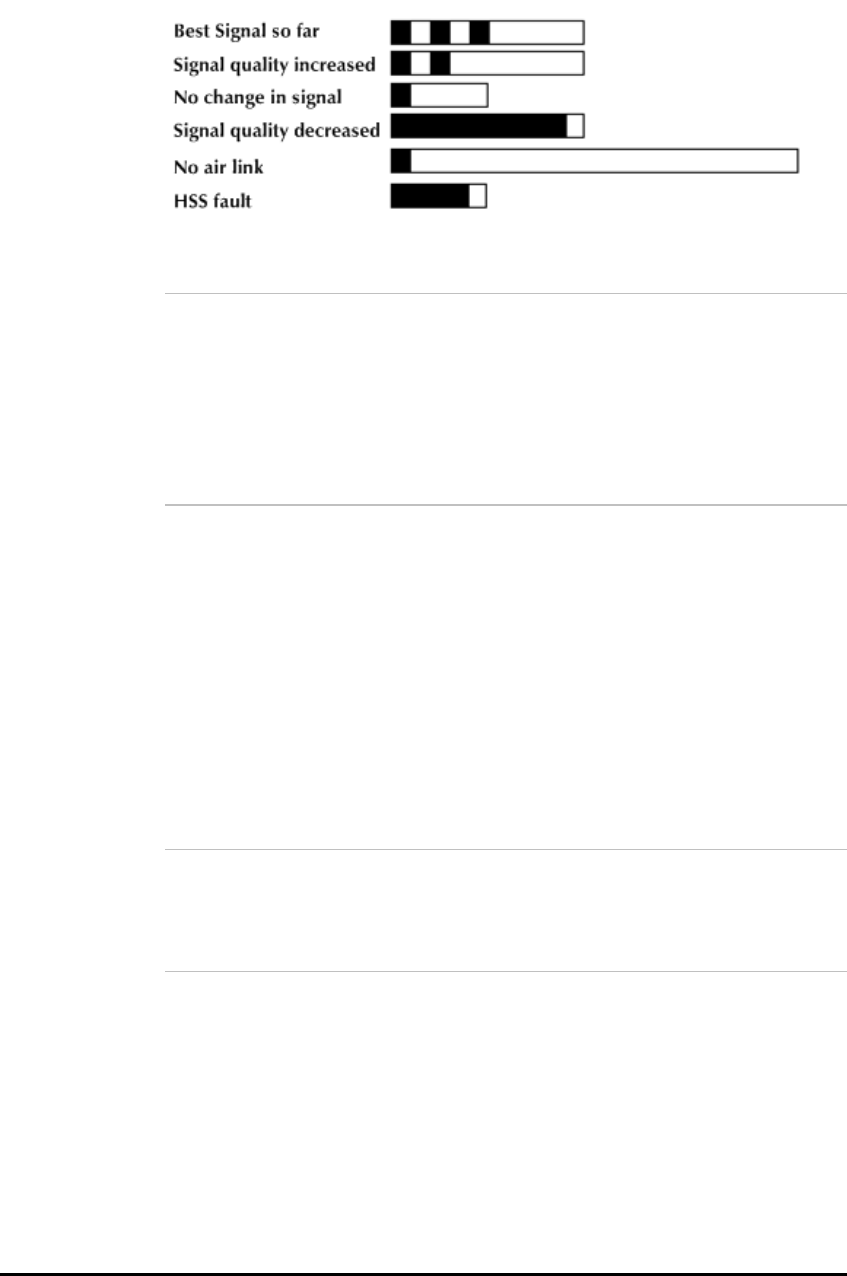

Figure 3-8: Beeper Sequence for ODU Alignment
Note:
Three beeps and a pause is the best signal
Two beeps and a pause, signal quality increased
One beep and pause is no signal change
Any other signal detects no signal between ODUs.
6. Secure the site A ODU to the mast/wall.
7. At site B, adjust the ODU slowly whilst listening to the beeper
sequence until the best signal is attained.
8. Secure the site B ODU to the mast/wall.
9. Monitor the link quality for about 15 minutes to verify stability.
Installing the Link
During the installation procedure, the definition of all parameters is
automatically applied to both sides of the link.
Note:
For HSS screens see
Hub Site Synchronization..
Æ To install the link:
1. Verify that there is IP connectivity between the management
station/laptop and the IDU, and that the WinLink™ 1000 Manager
application is running.
2. With BRS systems you need to activate the link at both sites, see
BRS Installation Procedure
for method. Once the link is activated,
continue installation from this point.
