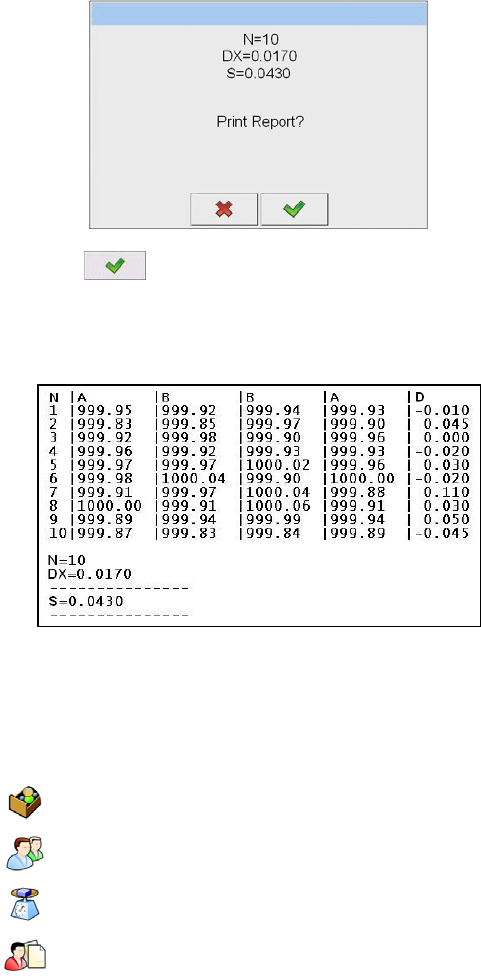

• After pressing

a final report is printed out comprising

subsequent measurements and final calculations.

An example report:

27. DATABASES

PUE 7 databases hold different data:

Products

Operators

Weighings / Alibi

Contractors
