It can be declared in submenu < Authorizations>, which is

accessable only for users with the <Administrator> authorization

level (see ch. 19 of this manual).

2. A user logged in as <Administrator> in submenu

Authorizations> (see ch. 19 of this manual) can change

authorization levels for accessing different databases and functions

Delete older data>. The exception are database

Weighings / Alibi>, that have the status „Read only”.

12. NAVIGATING WITHIN THE MENU

Owing to the colour display with the touch panel navigating within the menu

is simple and intuitive.

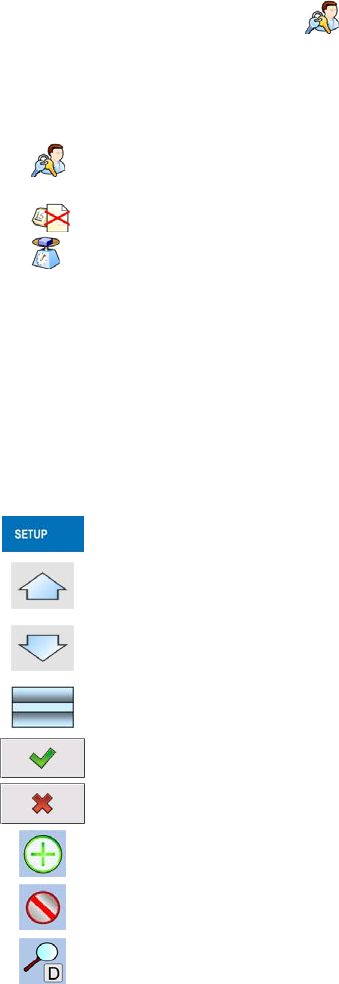

12.1. Buttons

Entering the main menu

Menu list „up”

Menu list „down”,

Scrolling „up-down”

Enter (OK)

Abort

Add a new item in a database

Disabeling the formerly selected record e.g. logging out the operator

Searching a database according to a date
