36. APPENDIX C – Label pattern

A label pattern can be created in 2 ways:

• From the terminal level using variables,

• Using PC software EDYTOR ETYKIET R01. A created project needs

to be saved as an „lb” file then copied on a pendrive that can be

connected to the terminal. Finally transfer the file to the database

in the scale.

While a label is in the database of labels it can be ascribed to products

or/and contractors in order to work in labelling mode.

36.1. Designing a label from the terminal level

Procedure:

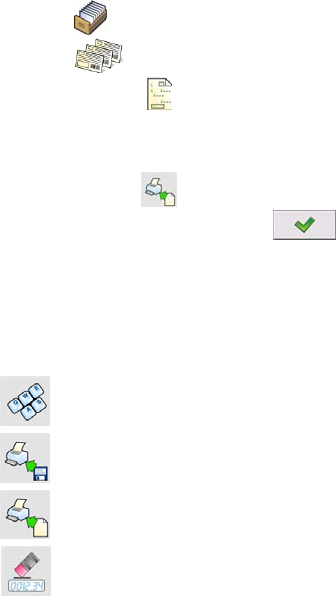

• Enter <

Databases> according to ch. 27 of this manual,

• Enter <

Labels> and press on the required position.

• After entering <

Label pattern> an editing field with the screen

keyboard appears

• Modify the existing pattern using the list of variables accessible

after pressing

• Confirm changes by pressing

Notice:

In the bottom line of the screen keyboard there are additional buttons that

help to modify a label pattern:

Screen keyboard on / off

Read label patterns from *.lb files (see – ch. 36.3)

Select variables for the display pattern (inventory of variables

can be found in APPENDIX A)

Clearing the editing field

111
