5. DESCRIPTON OF CONNECTORS

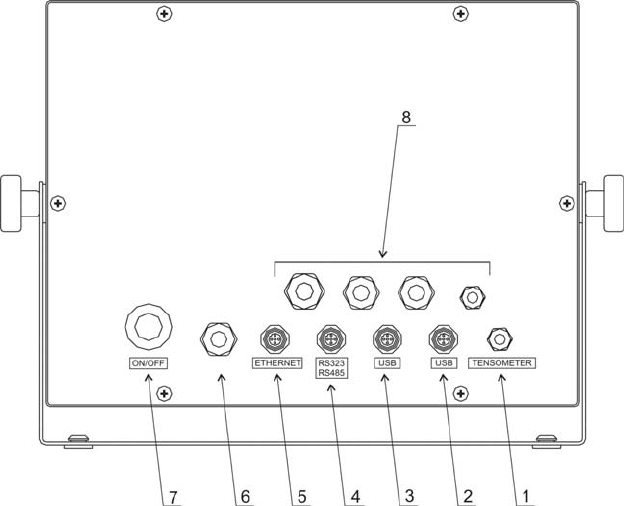

Back side view of PUE 5

Connectors in standard version:

1 Strain gauge cable gland

2 USB connector

3 USB connector

4 RS232, RS485 connector

5 Ethernet connector

6 Power cord cable

7 ON/OFF switch

8 Glands of optional equipment (8IN/8OUT, 4IN/4OUT,

RS485 via gland, additional platform, etc)

NOTICE:

All connectors can be used in any configurations.

- 8 -
