34.3.2. Colours of cables for I/O PT0083:
SIGNAL
LEADS NUMBER
(FOR JZ-500 108G0,5)
IN 1
1
IN 2
2
IN 3
3
IN 4
4
GND IN
5
OUT 1
6
OUT 2
7
OUT 3
8
OUT 4
9
COMMON
(10) YELLOW GREEN
34.3.3. Installing method in PUE 5 terminal
WE 4 modules are equipped in one cable, for inputs and outputs.
Installing procedure:
1. Unplug the terminal from mains;
2. Unscrew and take off the back wall of the housing;
3. Install a PG9 gland and led cable PT0083 through it;
4. Connect the PT0083 cable to the J24 connector for inputs or
to the J23 for outputs, on the main board of PUE 5.
5. The cable connect to the group of wires (unhook band clips
fastening the group of wires, lay the cable and hook the band
clips). Band clips of multiple usage;
6. Screw down the back wall.

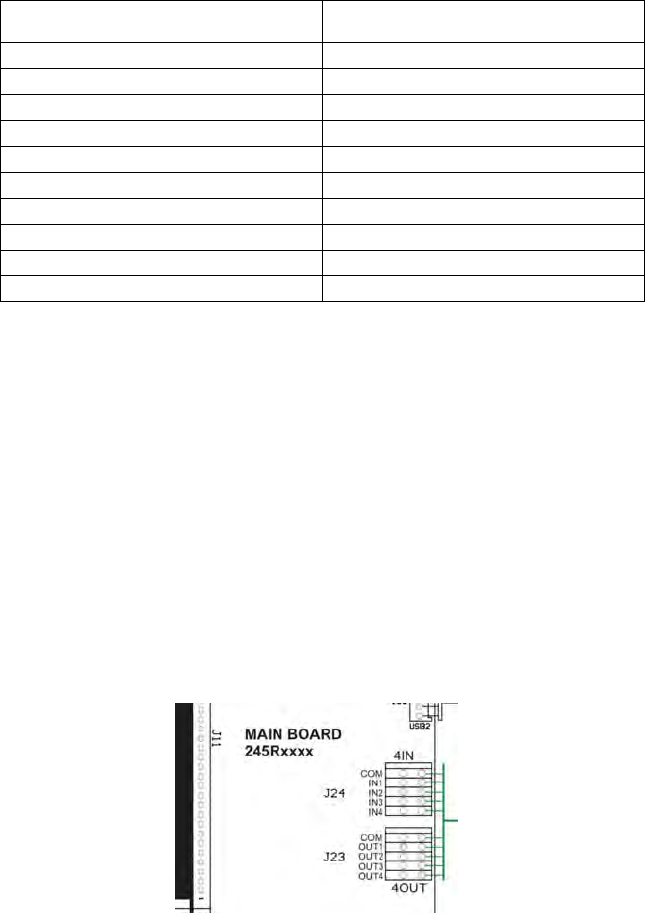

Installing WE4 modules on the main board of PUE 5
