32.6. RS232, RS485 cable – colours

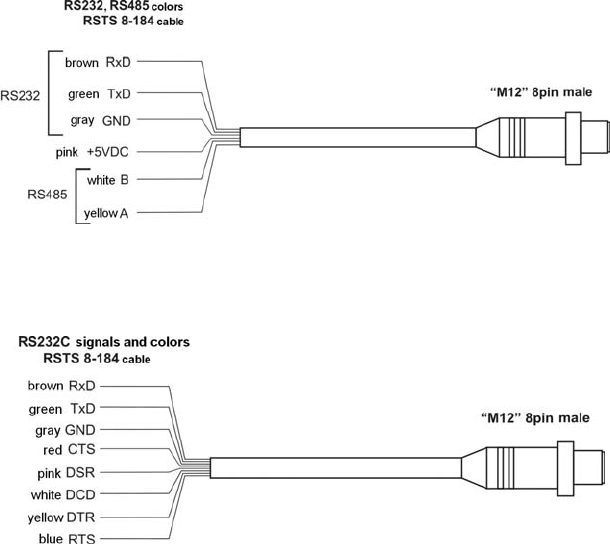

Colours for “M12” standard cables. The figure gives an example of the type of cable.

32.7. RS232C cable – colours

Colours for “M12” standard cables. The figure gives an example of the type

of cable.

33. CONNECTORS

Caution:

Depending on the number of installed additional modules the number and

location of glands and connectors can change. Standard option connectors

and glands’ location does not change.
