After selecting the required parameter value save changes according to

29.3.2 of the manual.

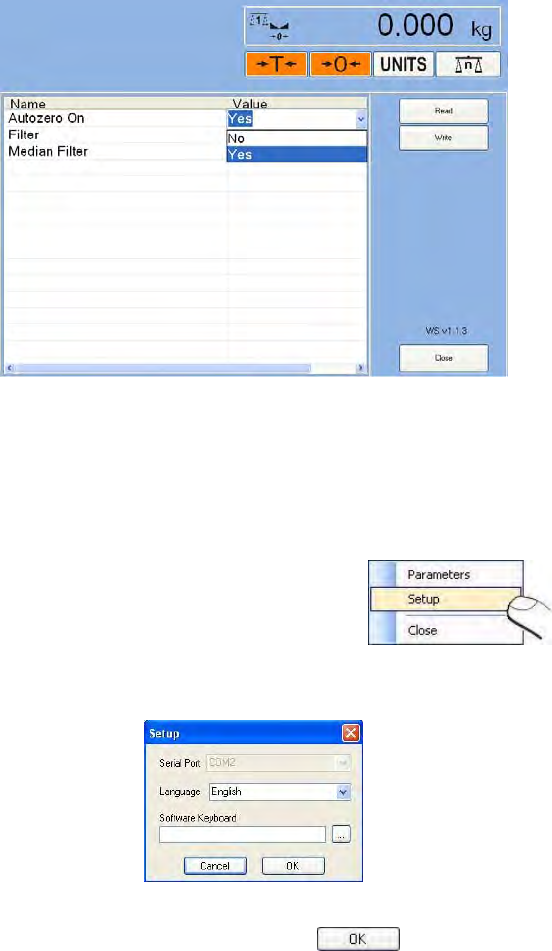

29.7. Scale software settings

After starting program menu list (see point 29.2

of manual) press with finger option <Settings>:

Scale software will display settings window:

Accept change of parameters value with key:

- 106 -
